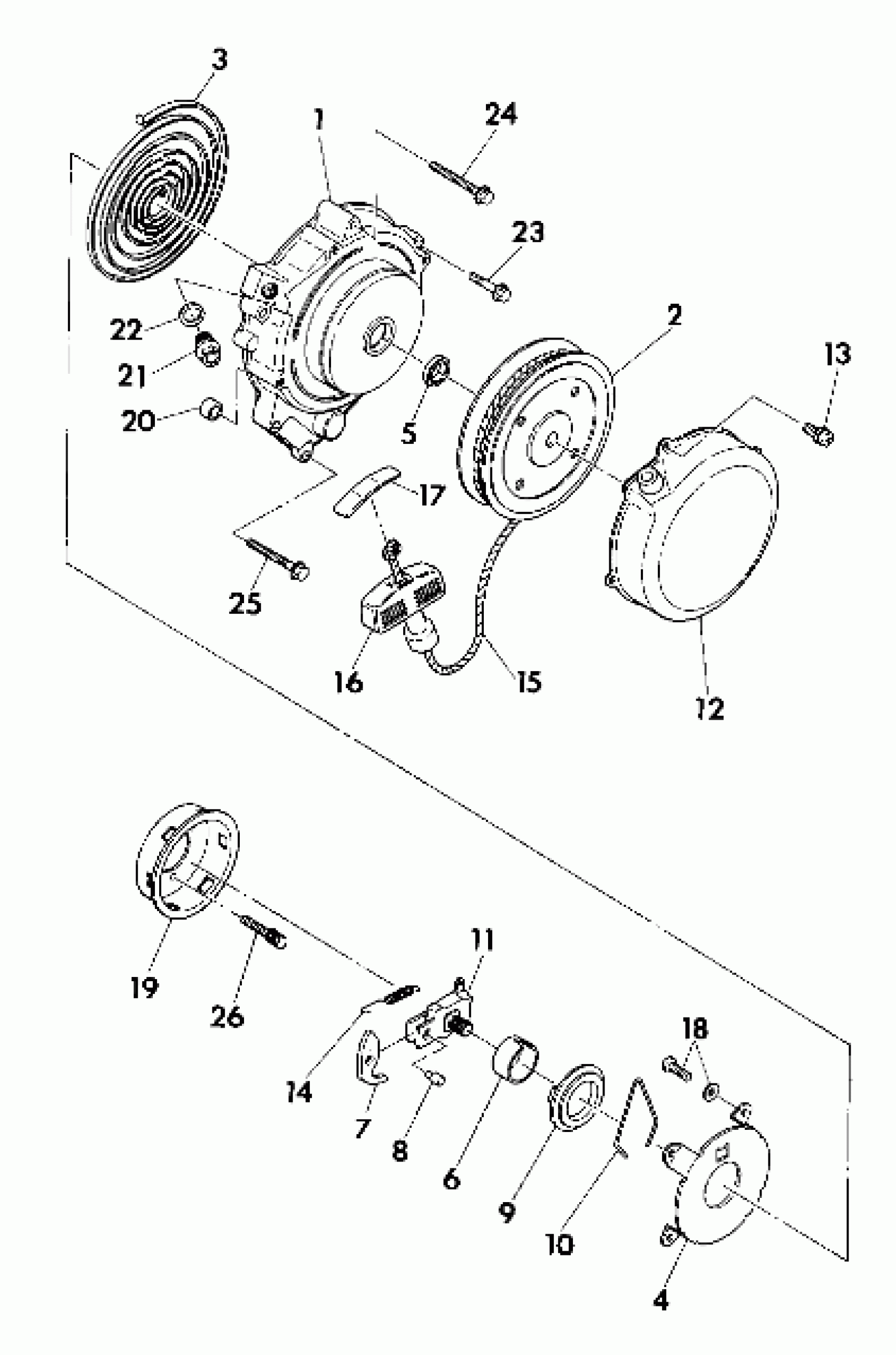

Polaris TRAIL BOSS 350L 4X4 - W908139 Recoil Starter Assembly (4918541854048A) Diagram

#

Description
Price

-

CASE,STARTER,B UNIT

3083911

$271.99

1

STARTER,RECOIL,COMPL. (Incl. 1-18, 20)

3083924

Unavailable

1

STARTER,RECOIL ASM. Substituted by 3083924 (Incl. 1-20)

3084175

Unavailable

2

REEL, COMPL.

3083814

$97.13

3

Spring, Spiral

3083815

$45.59

4

Case, Spring

3083925

Unavailable

5

Grommet

3083817

Unavailable

6

Hook, Spring

3083818

$39.99

7

Ratchet

3083819

Unavailable

8

Pin, Ratchet

3083820

Unavailable

9

GUIDE,RATCHET

3083821

Unavailable

10

SPRING,FRICTION

3083912

$25.59

11

GUIDE, COMPL.

3083913

Unavailable

12

CASE,STARTER,COMPL.

3083914

Unavailable

13

Bolt, Flange

3083826

Unavailable

14

Spring, Return

3083827

$11.59

15

ROPE ASM. Substituted by 2870621

3083828

Unavailable

16

STARTER ROPE Substituted by 2870621

3083829

Unavailable

17

Knob, Starter

3083659

Unavailable

18

Cap, Knob

3083660

Unavailable

19

SCREW & WASHER

3084176

Unavailable

20

Pulley, Starting

3083915

Unavailable

21

BUSHING, STARTER (Starter)

3083669

Unavailable

22

PLUG Substituted by 3086749

3083453

Unavailable

23

GASKET

3082956

$4.84

24

BOLT, FLANGE Substituted by 3086751

3084177

Unavailable

25

BOLT, FLANGE

3084178

Unavailable

26

Bolt, Flange

3084179

Unavailable
