Description

Price

-

CALIPER ASM,R.BRAKE Substituted by 1910073 (Complete)

1910046

Unavailable

1

CALIPER,REAR BRAKE

5130714

Unavailable

2

KIT,PAD,R.BRAKE Substituted by 2200464 (Incl. 3, 4)

1930644

$31.75

3

PIN, DOWEL(10)

7661820

$13.99

5

SCREW,BLEEDER

7080352

$3.19

6

Seal Ring, .120 Sq.

-------

Unavailable

7

Seal Ring, .066 Sq.

-------

Unavailable

8

Brake Piston, Rear

-------

Unavailable

9

KIT,BRAKE SEALS&PISTON (Incl. 6-8, 12, 14, 15)

1930666

Unavailable

10

SCREW, SEMS(10)

7512020

$2.39

11

PLATE, PIN

5211143

Unavailable

12

O-Ring, .070

-------

Unavailable

13

SPRING,BRAKE,COMP.

7041219

$24.99

14

Brake Pin, Actuator

-------

Unavailable

15

GASKET, BRAKE

5830009

$9.99

16

RAMP,MOVE.BRAKE Substituted by 2200391

5630366

Unavailable

17

RAMP,STATION.BRAKE Substituted by 2200391

5630346

Unavailable

18

BOLT, SOC. HD.(10)

7512292

Unavailable

19

ARM,BRAKE CALIPER Substituted by 2200391

5222454

Unavailable

20

WASHER(10)

7558301

$1.49

21

NUT(10)

7542129

$4.79

22

BRAKE ADJUSTER Substituted by 1930691

1910050

Unavailable

23

SEAL, BRAKE

3610026

$7.99

24

SPRING,ANTI-RATTLE

5222232

Unavailable

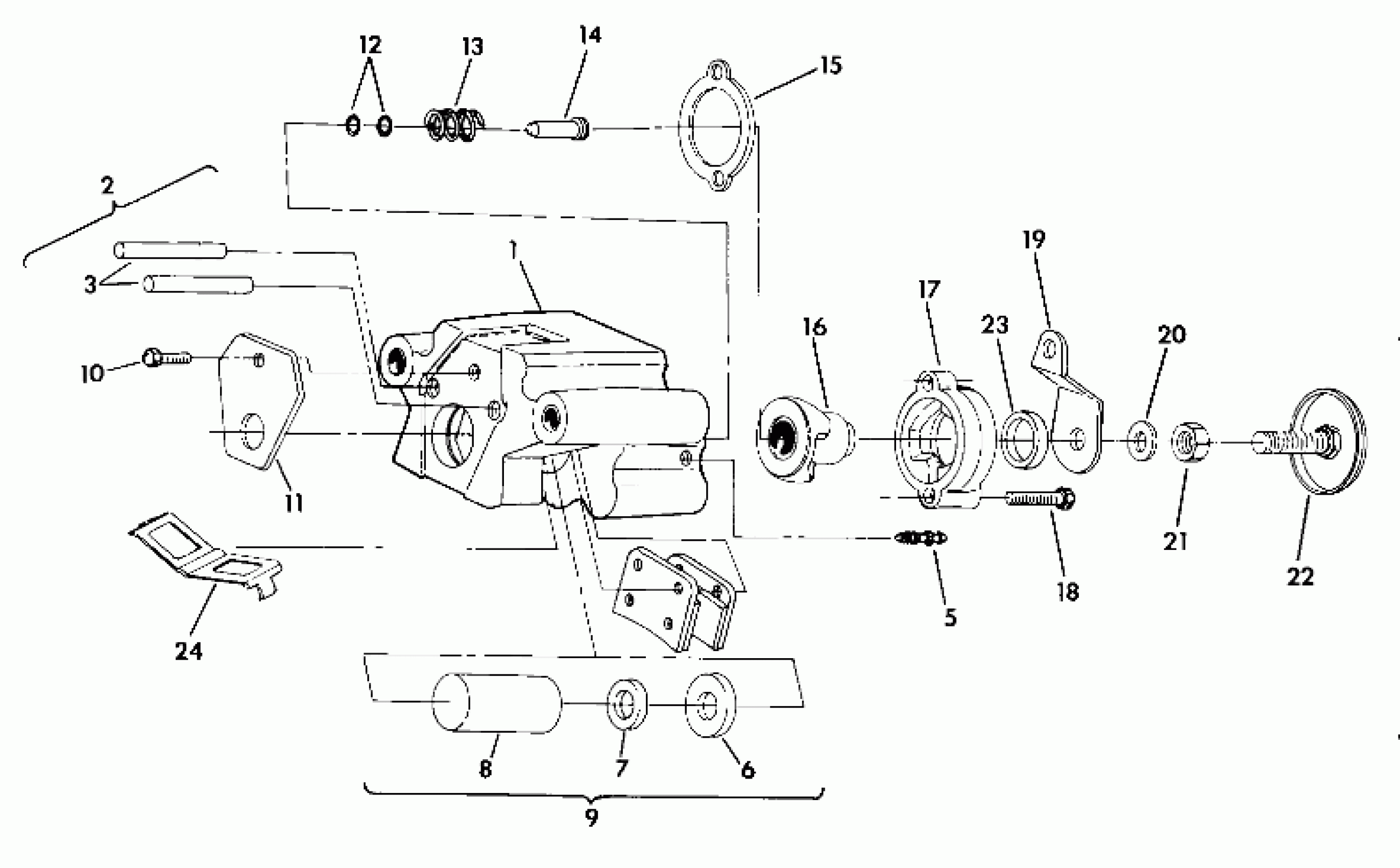

Polaris TRAIL BOSS 350L 4X4 - W908139 Rear Brake Assembly (4918541854033A) Diagram

CALIPER ASM,R.BRAKE Substituted by 1910073 (Complete)

CALIPER,REAR BRAKE

KIT,PAD,R.BRAKE Substituted by 2200464 (Incl. 3, 4)

PIN, DOWEL(10)

SCREW,BLEEDER

Seal Ring, .120 Sq.

Seal Ring, .066 Sq.

Brake Piston, Rear

KIT,BRAKE SEALS&PISTON (Incl. 6-8, 12, 14, 15)

SCREW, SEMS(10)

PLATE, PIN

O-Ring, .070

SPRING,BRAKE,COMP.

Brake Pin, Actuator

GASKET, BRAKE

RAMP,MOVE.BRAKE Substituted by 2200391

RAMP,STATION.BRAKE Substituted by 2200391

BOLT, SOC. HD.(10)

ARM,BRAKE CALIPER Substituted by 2200391

WASHER(10)

NUT(10)

BRAKE ADJUSTER Substituted by 1930691

SEAL, BRAKE

SPRING,ANTI-RATTLE
