Description

Price

1

BOLT(10)

7515321

$1.49

2

DISC, BRAKE Substituted by 5211326

5211270

$89.03

3

SEAL, FR. HUB

3610019

$35.99

4

KEY

7721205

Unavailable

5

CLUTCH ASM,FR.HUB

1520143

$307.49

6

STUD,WHEEL,5/16-18(10)

7515330

Unavailable

7

HUB, WHEEL Substituted by 1520171

5130682

Unavailable

8

PLUG,PIPE

7052045

$12.79

9

BRG,TAPER.ROLL.CONE

3554506

$31.99

9

BRG,TAPER.ROLL.CONE

3554506

$31.99

10

WASHER(10)

5211101

Unavailable

11

NUT HEX(10)

7542301

$1.59

12

NUT, LOCK Substituted by 7543201

7543202

Unavailable

13

O RING

5410470

$2.41

14

CAP, HUB Substituted by 5431368

5130684

$23.16

15

VALVE-RIM

1525017

$5.59

16

RIM, FRONT Substituted by 1520159-117

1520159

Unavailable

17

TIRE,FR(25X8-12)

5410568

Unavailable

18

CAGE, ROLL Substituted by 3250028

3250023

$218.56

19

SPRING, GARTER

3250022

Unavailable

20

ROLLS

3250010

$35.99

21

CAM

3250024

$140.09

22

Plate, Armature

5211148

$23.99

23

BRG,TAPER,ROLL CUP

3554507

$31.99

23

BRG,TAPER,ROLL CUP

3554507

$31.99

24

LOCK WASHER(10)

7552901

$1.49

25

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

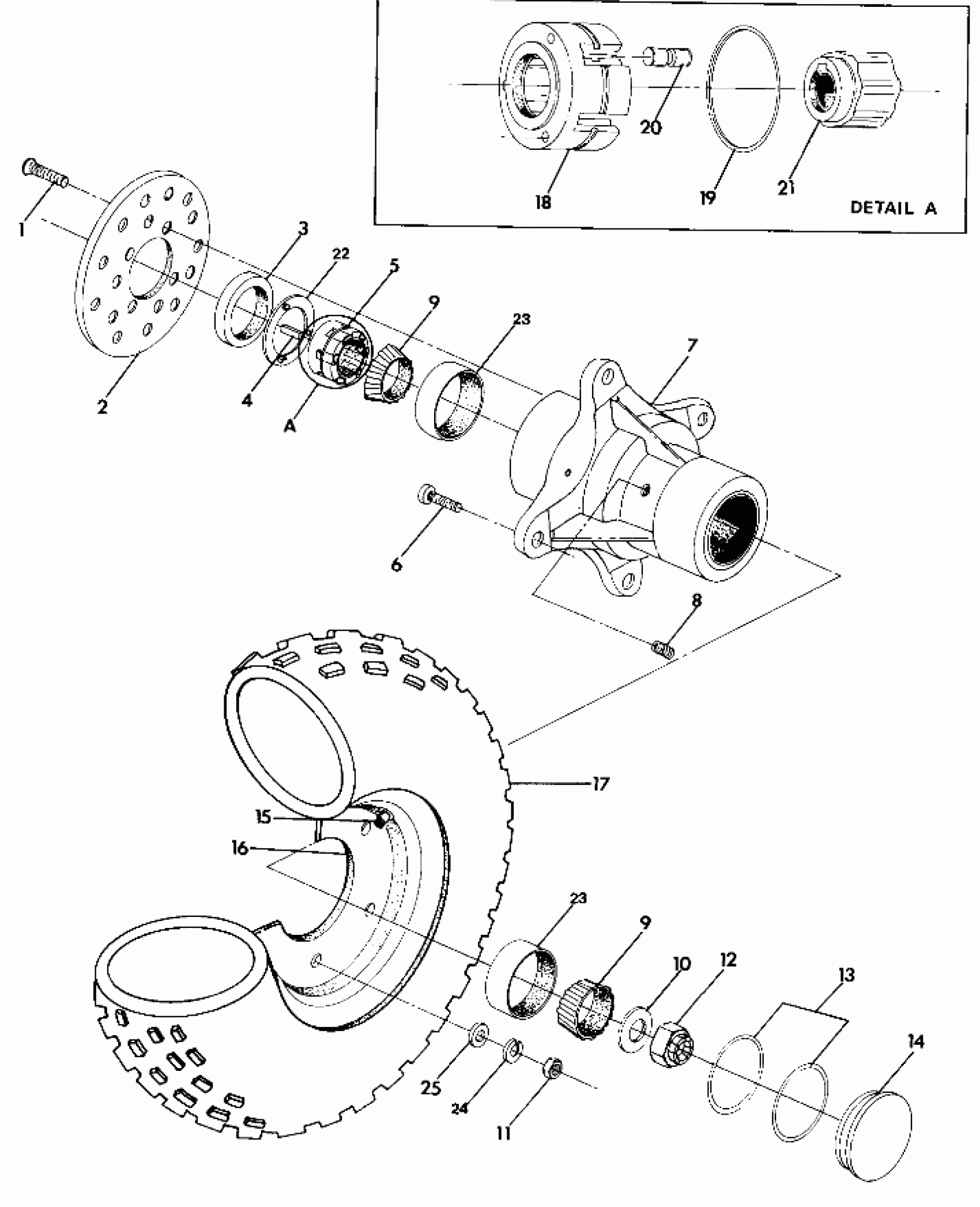

Polaris TRAIL BOSS 350L 4X4 - W908139 Front Wheel Assembly (4918541854021A) Diagram

BOLT(10)

DISC, BRAKE Substituted by 5211326

SEAL, FR. HUB

KEY

CLUTCH ASM,FR.HUB

STUD,WHEEL,5/16-18(10)

HUB, WHEEL Substituted by 1520171

PLUG,PIPE

BRG,TAPER.ROLL.CONE

BRG,TAPER.ROLL.CONE

WASHER(10)

NUT HEX(10)

NUT, LOCK Substituted by 7543201

O RING

CAP, HUB Substituted by 5431368

VALVE-RIM

RIM, FRONT Substituted by 1520159-117

TIRE,FR(25X8-12)

CAGE, ROLL Substituted by 3250028

SPRING, GARTER

ROLLS

CAM

Plate, Armature

BRG,TAPER,ROLL CUP

BRG,TAPER,ROLL CUP

LOCK WASHER(10)

WASHER-.344X.688X.063 FL-Y
