- TRAIL BOSS 350L 4X4 - W908139
Crankshaft and Piston Assembly (4918541854042A)

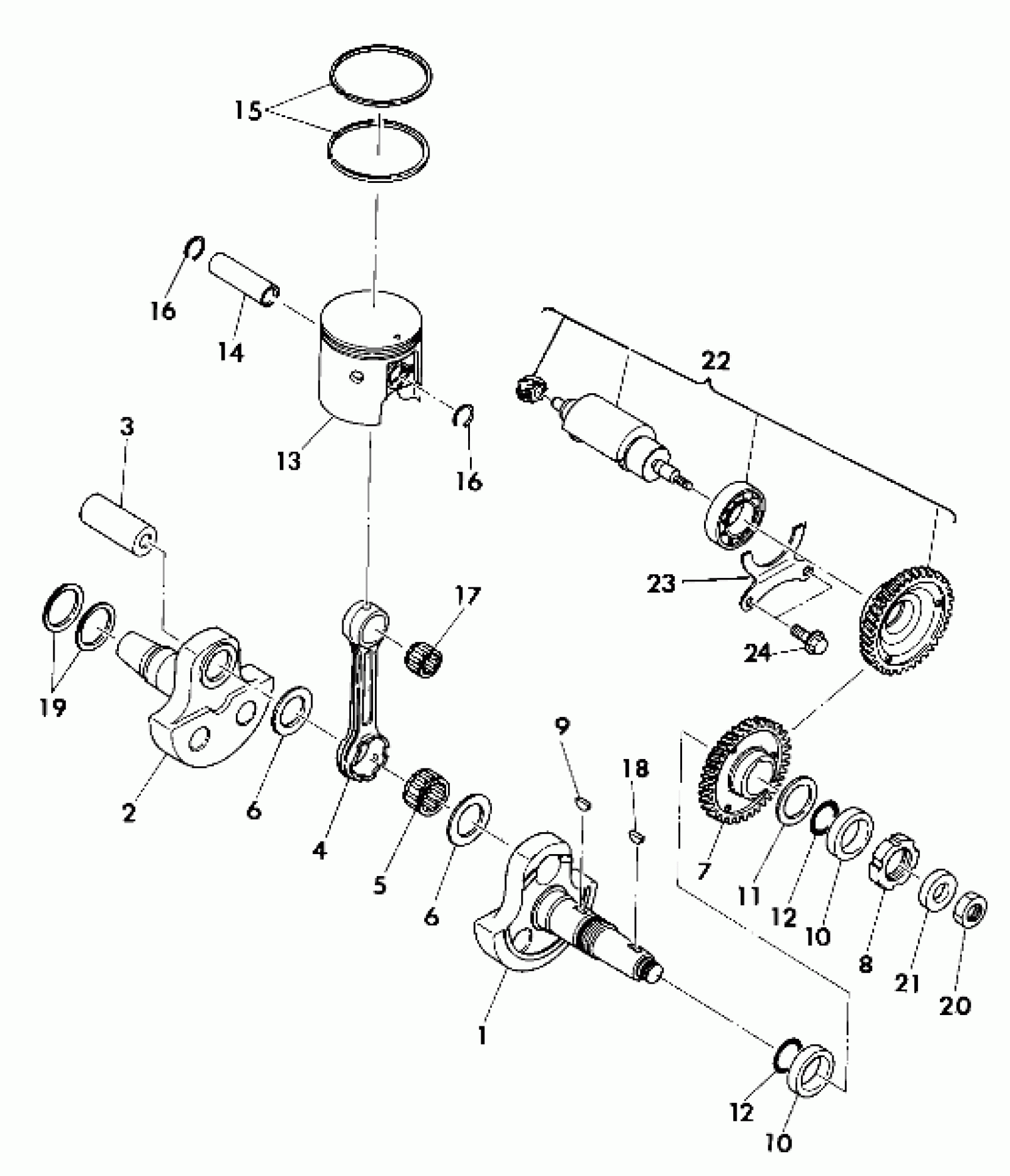

Polaris TRAIL BOSS 350L 4X4 - W908139 Crankshaft and Piston Assembly (4918541854042A) Diagram
#
Description
Price
1
CRANKSHAFT ASM. *
3084776
Unavailable
2
CRANKSHAFT #2,PTO SIDE
3084151
$223.01
3
PIN, CRANK #1
3084152
$78.39
4
Rod, Connecting
3084153
Unavailable
5
Bearing, Large End
3084154
Unavailable
6
SPACER, CRANK PIN (Crank Pin)
3084155
Unavailable
6
SPACER, CRANK PIN (Crank Pin)
3084155
Unavailable
7
GEAR, DRIVE * (Drive)
3084156
$110.32
8
NUT, SLIT Substituted by 3086762 (Slit)
3084157
Unavailable
9
KEY WOODRUFF
3081543
$12.94
10
Desc not available [No Longer Available]
3081458
Unavailable
10
Desc not available [No Longer Available]
3081458
Unavailable
11
WASHER, GUIDE Substituted by 3084159
3081459
Unavailable
12
O RING
3084160
Unavailable
12
O RING
3084160
Unavailable
13
PISTON, (.010 O/S) *
3084162
Unavailable
13
PISTON, (.020 O/S)
3084163
Unavailable
13
PISTON, (STD.)
3084161
Unavailable
14
Pin, Piston
3083838
$27.99
15
RING,PISTON,(.020 O/S)
3084166
Unavailable
15
RING,PISTON,(.010 O/S)
3084165
Unavailable
15
RING, PISTON,(STD.)
3084164
Unavailable
16
CLIP,(10) (Piston Pin)
3084167
$6.39
16
CLIP,(10) (Piston Pin)
3084167
$6.39
17
Bearing, Small End
3084168
$31.99
18
KEY Substituted by 3081543
3080130
Unavailable
19
SPACER #2, (0.3)
3084170
Unavailable
19
SPACER #1, (0.2)
3084169
Unavailable
20
LOCKNUT
3083905
Unavailable
21
WASHER
3084171
Unavailable
22
BALANCER Substituted by 3087042
3084172
Unavailable
23
PLATE Substituted by 3086768
3084173
$25.40
24
BOLT, FLANGE Substituted by 3086769
3084174
Unavailable
