Crankcase and Cylinder Assembly (4918541854041A)

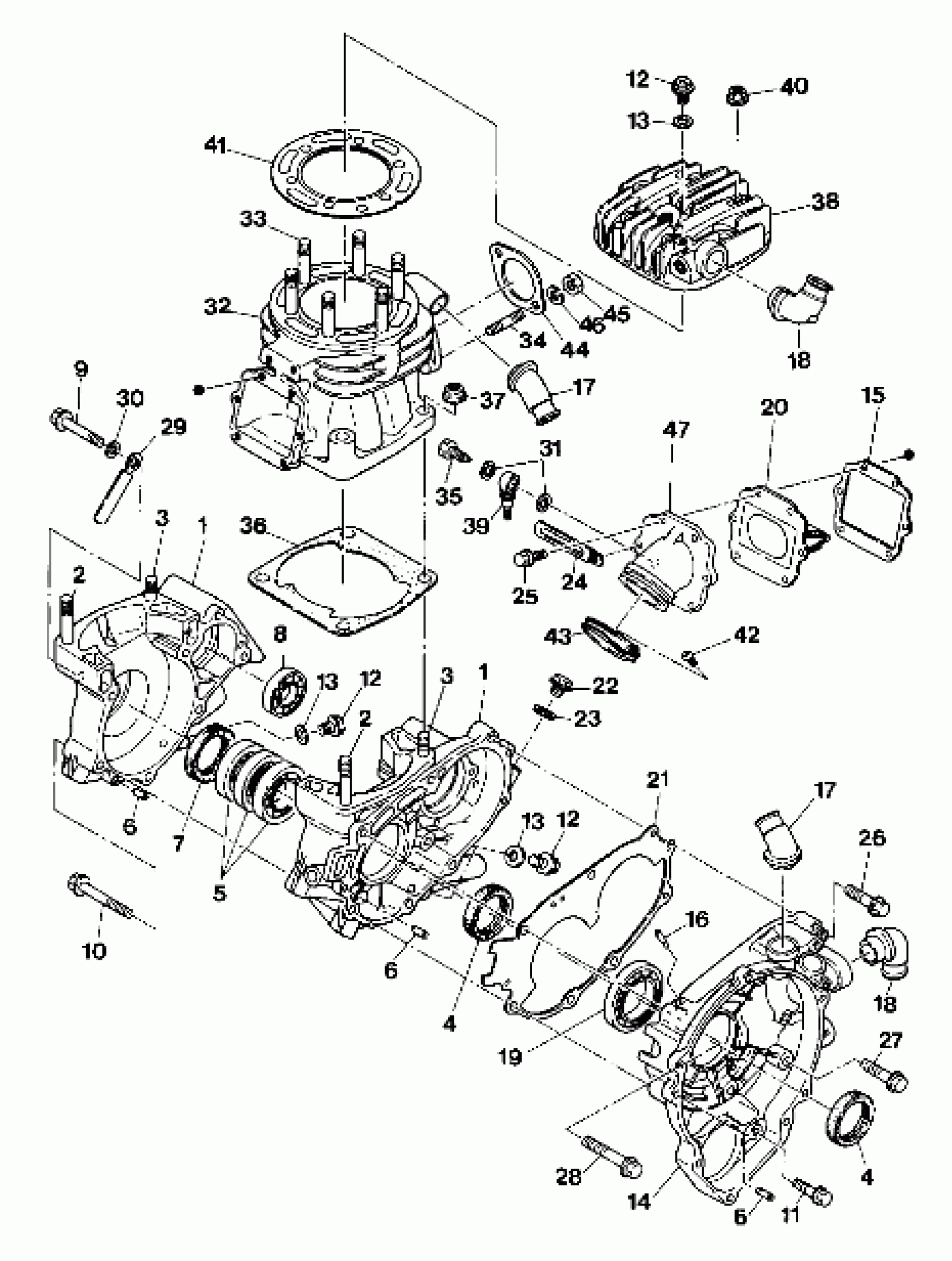

Polaris TRAIL BOSS 350L 4X4 - W908139 Crankcase and Cylinder Assembly (4918541854041A) Diagram
#
1
CRANKCASE ASM.
3084117
Unavailable
1
CRANKCASE ASM.
3084117
Unavailable
2
Stud
3084118
Unavailable
2
Stud
3084118
Unavailable
3
Stud
3084119
$9.59
3
Stud
3084119
$9.59
4
Seal, Oil
3084120
Unavailable
4
Seal, Oil
3084120
Unavailable
5
Bearing, Ball
3084121
$39.99
6
PIN, DOWEL Substituted by 3086838
3080103
$7.14
6
PIN, DOWEL Substituted by 3086838
3080103
$7.14
6
PIN, DOWEL Substituted by 3086838
3080103
$7.14
7
SEAL,OIL
3084122
Unavailable
8
Bearing, Ball
3084123
Unavailable
9
Bolt, Flange
3084124
$6.23
10
BOLT, FLANGE Substituted by 3086742
3084125
Unavailable
11
Bolt, Flange
3084126
Unavailable
12
PLUG, DRAIN
3083767
Unavailable
12
PLUG, DRAIN
3083767
Unavailable
12
PLUG, DRAIN
3083767
Unavailable
13
Cap
3083758
$5.75
13
Cap
3083758
$5.75
13
Cap
3083758
$5.75
14
CRANKCASE #3
3084127
Unavailable
15
GASKET, REED VALVE,(10) (Reed Valve)
3084148
Unavailable
16
PIPE, BREATHER (Breather)
3084128
Unavailable
17
PIPE, 1 ELBOW Substituted by 3086746 (Elbow)
3084129
Unavailable
17
PIPE, 1 ELBOW Substituted by 3086746 (Elbow)
3084129
Unavailable
18
PIPE, 2 ELBOW Substituted by 3086747 (Elbow)
3084130
Unavailable
18
PIPE, 2 ELBOW Substituted by 3086747 (Elbow)
3084130
Unavailable
19
Bearing, Ball
3084131
Unavailable
20
VALVE ASM., REED
3084147
Unavailable
21
GASKET, CASE 3 (Case 3)
3084133
Unavailable
22
PLUG Substituted by 3086749
3083453
Unavailable
23
GASKET
3082956
$4.84
24
CLAMP Substituted by 3083590
3084146
Unavailable
25
BOLT, FLANGE Substituted by 3086759 (Adapter)
3084145
Unavailable
26
BOLT, FLANGE Substituted by 3084177
3084132
Unavailable
27
Bolt, Flange
3084134
Unavailable
28
BOLT, FLANGE
3084135
Unavailable
29
CLAMP Substituted by 3083384
3084136
Unavailable
30
WASHER(10)
3080142
$3.99
31
WASHER(10) Substituted by 3083138
3040140
$774.39
32
CYLINDER
3084137
Unavailable
33
Stud
3084138
Unavailable
34
STUD Substituted by 3080016
3084139
$5.71
35
BOLT-BANJO
3083137
Unavailable
36
GASKET, CYLINDER (Cylinder)
3084140
Unavailable
37
NUT-FLANGE(10)
3082911
$1.99
38
HEAD, CYLINDER
3084141
$440.86
39
VALVE, CHECK
3083894
Unavailable
40
NUT-FLANGE(10)
3082910
$2.39
41
GASKET, HEAD Substituted by 3084517 (Head)
3084142
Unavailable
42
SCREW,(10)
3081497
$2.39
43
BAND ASM. (Adapter)
3084144
Unavailable
44
GASKET, EXHAUST (Exhaust)
3083770
Unavailable
45
NUT(10)
3080285
Unavailable
46
WASHER Substituted by 3080530
3080097
Unavailable
47
ADAPTER
3084143
Unavailable
