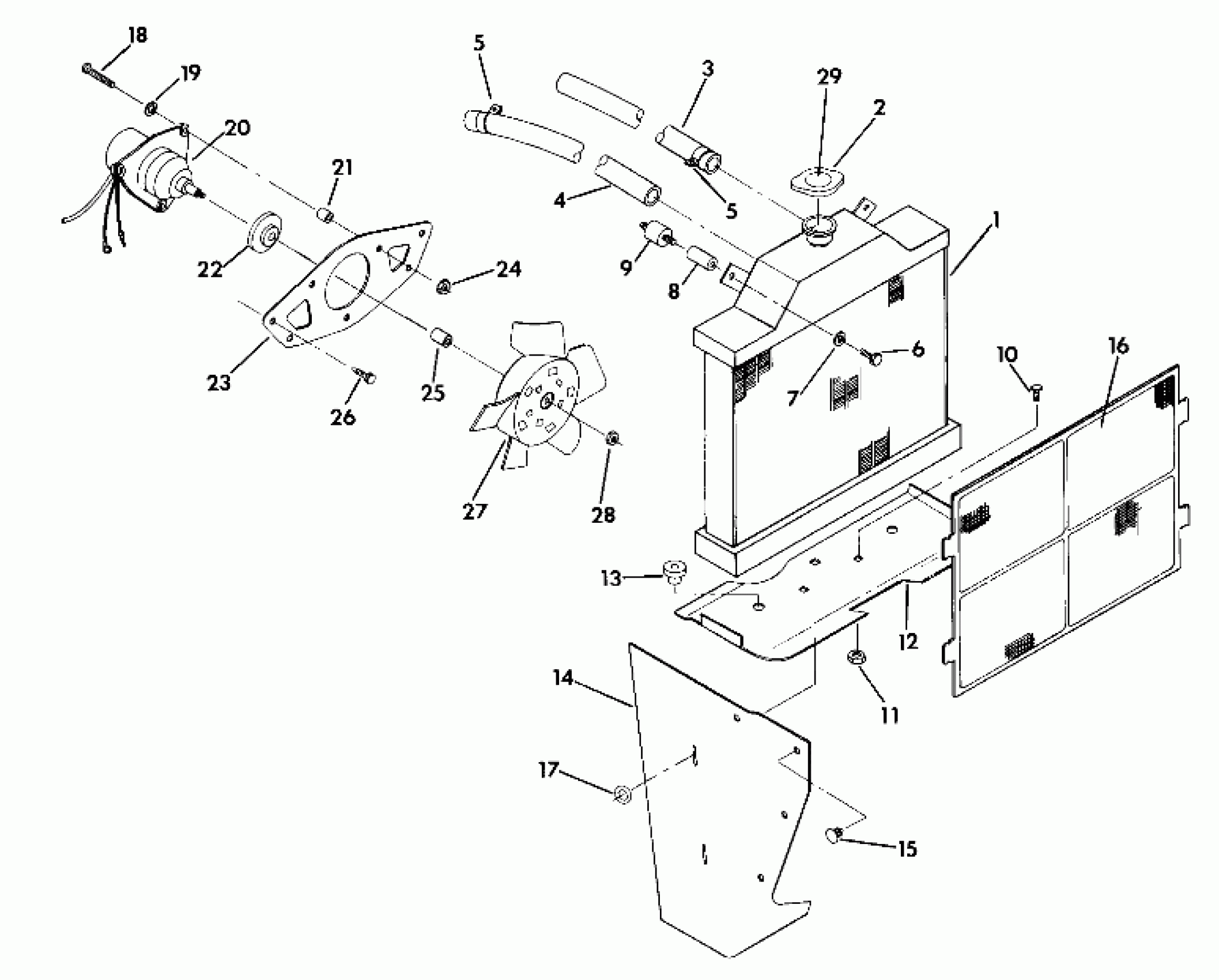

Polaris TRAIL BOSS 350L 4X4 - W908139 Cooling System (4918541854007A) Diagram

#

Description
Price

1

RADIATOR

1240006

Unavailable

2

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

3

HOSE,ENG,UPPER

5410570

$44.51

4

HOSE,LOWER ENGINE Substituted by 5411173

5410572

$88.79

5

CLAMP-HOSE Substituted by 7080547

7080225

Unavailable

5

CLAMP-HOSE Substituted by 7080547

7080225

Unavailable

6

SCREW(10)

7512113

$3.99

7

WASHER(10)

7552605

$5.27

8

Spacer, Mount

5020572

$8.79

9

Mount, Rubber

3110032

$7.99

10

BOLT(10)

7512193

$2.39

11

NUT-LOCK(10)

7542122

$1.49

12

GUARD,LOW.RADIATOR Substituted by 5222547-067

5222547

Unavailable

13

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

14

SHIELD,LH RADIATOR

5431188

Unavailable

14

SHIELD,RH RADIATOR

5431189

Unavailable

15

Clip, Dart

7670067

$3.99

16

SCREEN, RADIATOR Substituted by 5431610

5431228

Unavailable

17

O RING

5410163

$1.60

18

BOLT(10)

7511864

$4.79

19

WASHER, FLAT(10)

7558201

$5.79

20

MOTOR, FAN Substituted by 3084266

2410006

Unavailable

21

SPACER, FAN BRKT.

5333073

$3.83

22

COVER

3083951

Unavailable

23

BRKT, COOLING FAN [No Longer Available]

5222559

Unavailable

24

NUT(10)

7541915

Unavailable

25

BUSHING

3083950

Unavailable

26

BOLT(10)

7512232

$1.49

27

BLADE, FAN Substituted by 5240822

5431262

$57.14

28

NUT

3083952

Unavailable

28

SWITCH,RADIATOR THERMO.

4110099

Unavailable

28

Decal-Radiator Cap

-------

Unavailable
