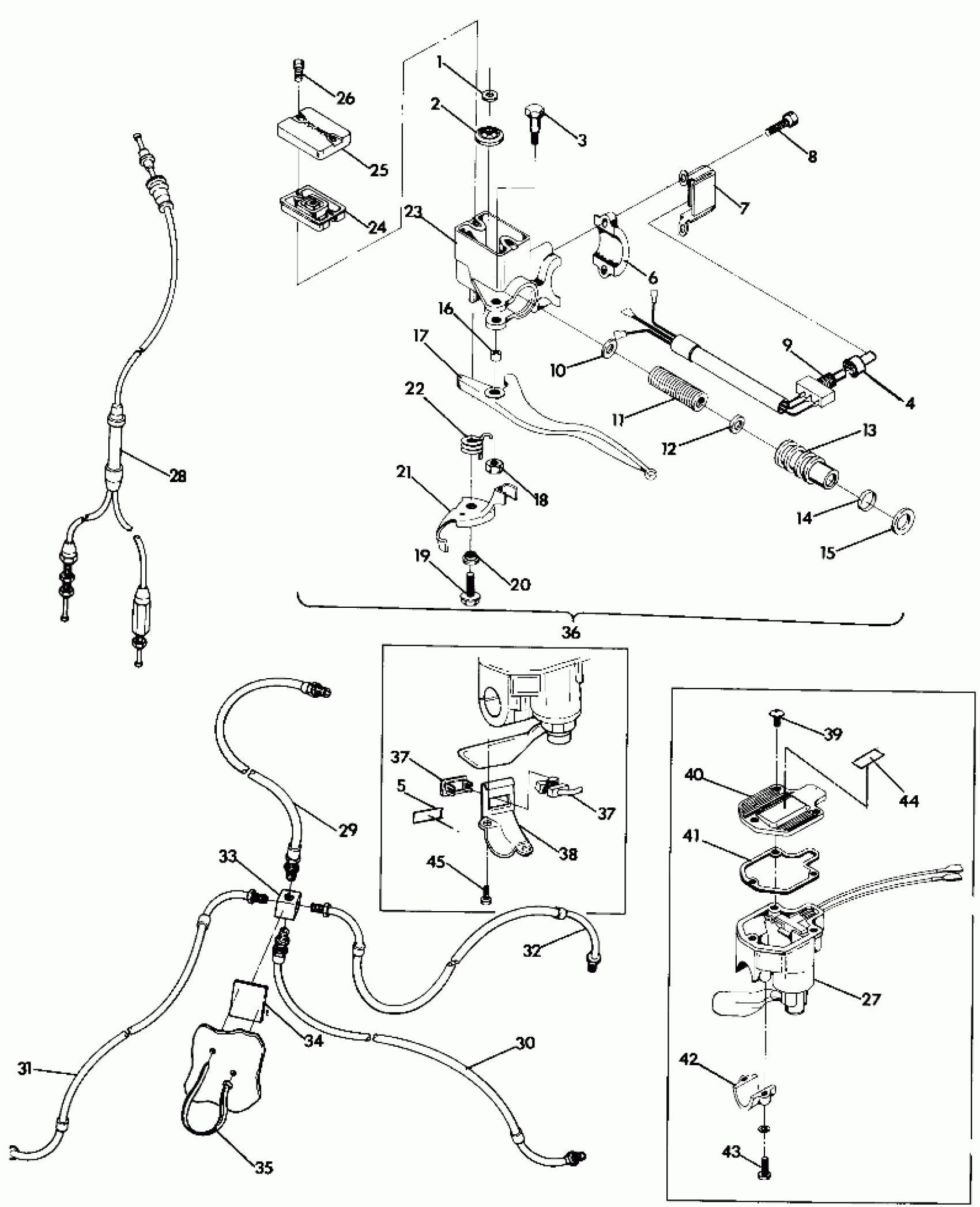

Polaris TRAIL BOSS 350L 4X4 - W908139 Control Assembly (4918541854017A) Diagram

#

Description
Price

1

WASHER, BAFFLE(10)

1930662

Unavailable

2

BAFFLE,MASTER CYL.

1930673

Unavailable

3

BOLT,BRAKE LEVER(10)

7512287

Unavailable

4

BOOT,SW. O'RIDE

7080412

Unavailable

5

DECAL,4X4 SWITCH [No Longer Available]

7072691

Unavailable

6

CLAMP, MASTER CYL.

5630342

Unavailable

7

BRKT,O'RIDE SW.(4X4)

5222317

Unavailable

8

BOLT,SOCKET HEAD(10)

7512290

$4.79

9

SWITCH,O'RIDE

4110103

$68.99

10

WASHER(10)

7555708

$3.99

11

SPRING,COMPRESSION,(10)

7041203

$33.87

12

U PACKING SEAL

5410164

Unavailable

13

PISTON, MASTER CYL.

5020520

Unavailable

14

O RING

5410163

$1.60

15

SEAL, OIL

3610022

Unavailable

16

BUSHING,BRAKE LEVER

5332931

Unavailable

17

LEVER, BRAKE

5630370

Unavailable

18

NUT(10)

7542124

Unavailable

19

SCREW(10)

7511866

$4.79

20

BUSHING,PK.BRAKE LEVER

5020545

Unavailable

21

LEVER,PARK BRAKE(ATV) Substituted by 2050060

2050043

$5.71

22

SPRING,PK.BRAKE

7041229

$32.37

23

HSG.,MASTER CYL.

5130772

Unavailable

24

GASKET,MASTER CYL.

5410527

$8.99

25

COVER,MASTER CYL.

5630338

Unavailable

26

SCREW(10)

7512016

Unavailable

27

THROTTLE CONTROL ASM. Substituted by 2010091 (Incl. 39-45)

2010093

Unavailable

28

CABLE, THROTTLE Substituted by 7080532

7080397

Unavailable

29

LINE,BRAKE,UP.,W/FTGS. Substituted by 1930748 (M/C)

1930633

$84.93

30

LINE,BRAKE,LH.FRT,W/FTGS. Substituted by 1930752

1930631

$84.93

31

LINE,BRAKE,RH FRT. Substituted by 1930753

1930634

$84.93

32

LINE,BRAKE,R.,W/FTGS.

1930632

Unavailable

33

FITTING, TEE

7052044

Unavailable

34

PAD,GAS TANK [No Longer Available]

5850040

Unavailable

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

36

MASTER CYL.ASM Substituted by 2050062 (Incl. 1-5, 10-23)

2050046

$235.51

37

SW.,'DEMAND 4 DRIVE'

4110082

Unavailable

37

SW.,'DEMAND 4 DRIVE'

4110082

Unavailable

38

BRKT, SWITCH

5222167

Unavailable

39

SCREW,BUTTON HEAD

2010079

Unavailable

40

CAP

2010080

Unavailable

41

PACKING,THROTTLE

2010081

Unavailable

42

HOLDER

2010078

$13.19

43

SCREW, SEMS(10)

2010077

Unavailable

44

DECAL,THROTTLE(ENG.) [No Longer Available]

7072724

Unavailable
