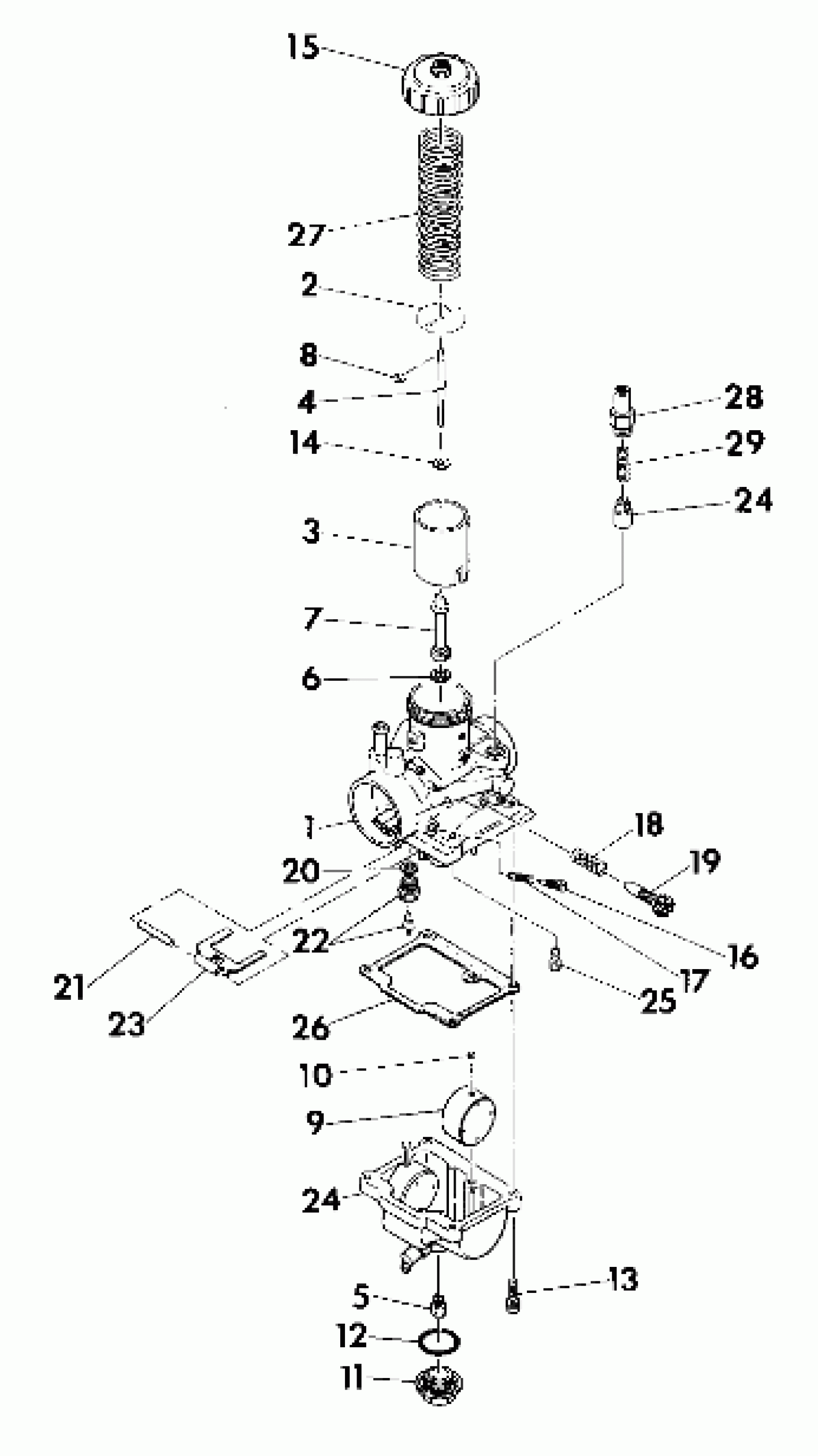

Polaris TRAIL BOSS 350L 4X4 - W908139 Carburetor Assembly (4918541854045A) Diagram

#

Description
Price

1

CARBURETOR (Includes 1-29)

3130425

Unavailable

2

PLATE, THROTTLE Substituted by 3130027

3130426

Unavailable

3

VALVE,THROTTLE(1.5) (1.5)

3130427

Unavailable

4

JET NEEDLE,6-DH29 (6-DH29)

3130462

Unavailable

5

JET,MAIN,#220 Substituted by 3130125 (#220)

3130428

Unavailable

6

RING, MAIN JET (Main Jet)

3130393

Unavailable

7

NEEDLE JET ASM. (O-6(480))

3130429

Unavailable

8

E RING(10) Substituted by 3130508

3130003

Unavailable

9

FLOAT ASM.

3130430

$43.56

10

CAP Substituted by 3130237

3130431

Unavailable

11

Screw, Guide

3130432

$27.99

12

O-RING Substituted by 3130239

3130433

Unavailable

13

SCREW & WASHER(10)

3130025

$3.19

14

PACKING Substituted by 3130355

3130434

$6.94

15

TOP ASM. Substituted by 3130184

3130435

Unavailable

16

SCREW,AIR

3130011

$19.99

17

SPRING,AIR ADJUST (Air Adjuster)

3130012

$8.89

18

SPRING,THROT.ADJ. (Throttle Adjuster)

3130436

Unavailable

19

SCREW,THROT.STOP

3130437

Unavailable

20

PACKING(10) Substituted by 3130017

3080524

Unavailable

21

PIN, FLOAT

3130361

$8.89

22

VALVE, NEEDLE (2.5)

3130360

$43.99

23

ARM,FLOAT

3130018

$24.27

24

PLUNGER ASM. Substituted by 3130328

3130440

Unavailable

24

PLUNGER ASM. Substituted by 3130328

3130440

Unavailable

25

JET, IDLER H30 Substituted by 3130065 (#30)

3130331

Unavailable

26

GASKET Substituted by 3130020

3130438

Unavailable

27

SPRING,THROTTLE

3130439

$13.59

28

HOLDER,GUIDE

3130199

$28.32

29

SPRING PLUNGER Substituted by 3130006

3080821

Unavailable
