Partiron

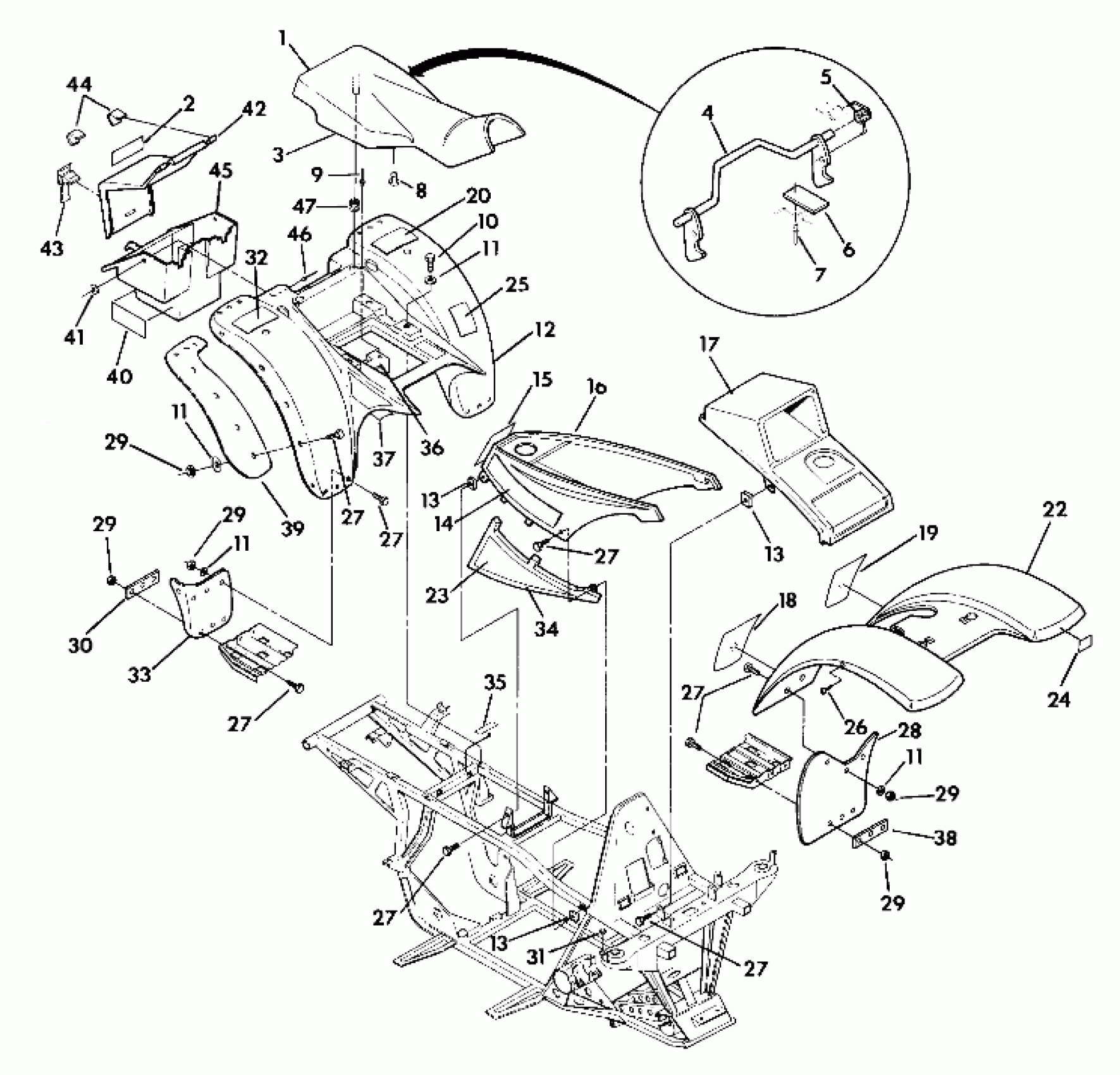

Polaris TRAIL BOSS 350L 4X4 - W908139 Body Assembly (4918541854001A) Diagram

#

Description
Price

1

SEAT ASM. Substituted by 2681724-132

2681411

Unavailable

2

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

3

COVER, SEAT Substituted by 2681723-132

2681412

Unavailable

4

LATCH,SEAT

1011558

Unavailable

5

SPRING, LATCH

7041158

Unavailable

6

BRACKET,LEVER RETAINER

5211033

$34.99

7

BLIND RIVET(50)

7621403

$1.19

8

Bumper, Rubber

5410414

$3.17

9

RIVET,3/16X.402(50)

7621432

$1.19

10

BOLT(10)

7512232

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

12

CAB, REAR (Fender)

5431271-143

Unavailable

13

NUT, SPEED(10)

7670060

$3.97

13

NUT, SPEED(10)

7670060

$3.97

13

NUT, SPEED(10)

7670060

$3.97

14

DECAL,4X4 350L [No Longer Available]

7072858

Unavailable

15

DECAL,AGE WARN.(CPSC) Substituted by 7074827

7072692

Unavailable

16

COVER,FUELTANK,GREY

5431263-143

Unavailable

17

COVER,H/L.(BLACK)

5430973-070

$67.46

18

DECAL(CPSC),WARNING Substituted by 7073147

7072720

Unavailable

19

DECAL,WARNING(CPSC) [No Longer Available]

7072693

Unavailable

20

DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]

7072786

Unavailable

22

CAB,FR,GRY(4WHL) Substituted by 2631549-143

5431248-143

Unavailable

23

DECAL, SIDE PANEL [No Longer Available]

7072884

Unavailable

24

LABEL, 'U.S.A.' [No Longer Available]

7073025

Unavailable

25

DECAL(CPSC),TIRE PRESS.

7073069

Unavailable

26

CLIP, PUSH-ON(10)

7670052

$1.98

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

28

MUDFLAP,RH FRONT

5850087

Unavailable

28

MUDFLAP,RH,FRONT

5850091

$13.49

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

30

BRKT, MUD FLAP Substituted by 5211131-067

5211131

Unavailable

31

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

32

DECAL(CPSC),WARN,R.RACK [No Longer Available]

7072788

Unavailable

33

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

33

MUDFLAP,RH,LOW REAR

5850077

$23.65

34

COVER,RH(STL.GREY)SIDE Substituted by 5433579-132

5430971-132

Unavailable

34

COVER,LH(STL.GREY)SIDE Substituted by 5433578-132

5430970-132

$40.03

35

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

36

BRKT,R.HOLDDOWN

5220880

Unavailable

37

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

38

BRACKET,MUD FLAP Substituted by 5211020-067

5211020

Unavailable

39

MUDFLAP,RH REAR Substituted by 5850090-070

5850090

Unavailable

39

MUDFLAP,LH REAR Substituted by 5850089-070

5850089

Unavailable

40

TAPE, FOIL

5810424

Unavailable

41

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

42

LID, TOOL BOX

5430769-092

Unavailable

43

STRAP,TOOL COMPARTMENT

5410425

Unavailable

44

CLIP, LID HINGE(10)

7670050

Unavailable

45

BOX,TOOL COMP.

5430882

Unavailable

46

RIVET(50)

7621462

$1.19

47

GROMMET

5410413

Unavailable
