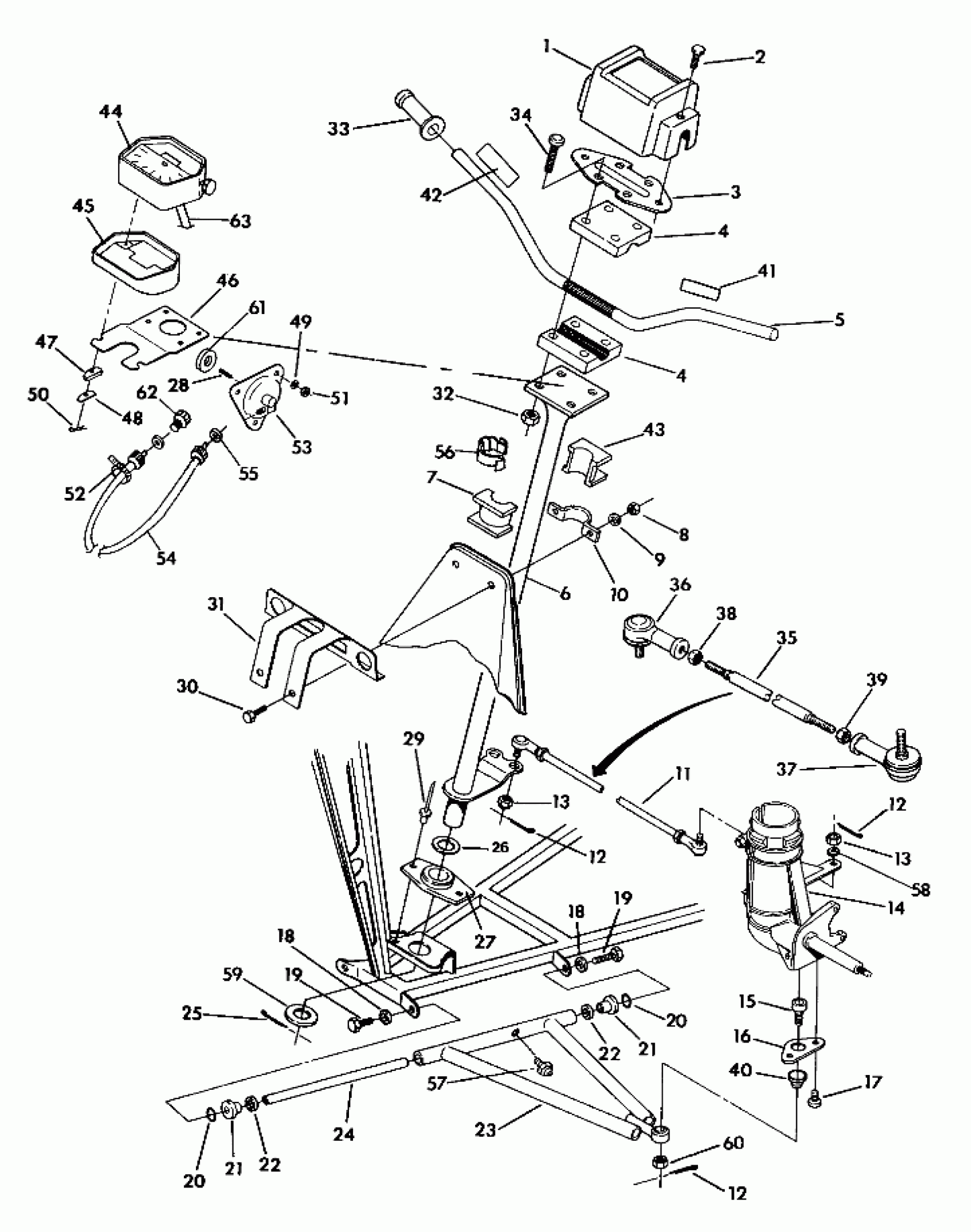

Polaris TRAIL BOSS 350L 2X4 - W927539 STEERING ASSEMBLY 350 2X4 / W927539 (4922882288011A) Diagram

#

Description
Price

1

PAD, HANDLEBAR

5810379

$40.46

2

BOLT(10) Substituted by 7515197

7512286

Unavailable

3

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$3.65

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$3.65

5

TUBE,HANDLEBAR Substituted by 5224316-067

5224316-132

Unavailable

6

POST, STEERING

1843028-067

Unavailable

7

BUSHING,STRG.,UPPER Substituted by 5431572

5430966

Unavailable

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

BRKT,UP.STRG.BUSH,BLK. Substituted by 5222999-067

5220887-067

$32.37

11

TIE ROD ASM. Substituted by 1822307

1822070

Unavailable

12

PIN COTTER(10)

7661203

$1.49

12

PIN COTTER(10)

7661203

$1.49

12

PIN COTTER(10)

7661203

$1.49

13

NUT, CASTLE(10)

7546904

$4.79

13

NUT, CASTLE(10)

7546904

$4.79

14

SUPPORT,LH STRUT

5130803

Unavailable

14

SUPPORT,RH STRUT

5130804

Unavailable

15

BALL JOINT Substituted by 7080673

7080364

Unavailable

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

20

O RING

5410458

Unavailable

20

O RING

5410458

Unavailable

21

BUSHING, A-ARM

3563604

Unavailable

21

BUSHING, A-ARM

3563604

Unavailable

22

WASHER(10)

7555774

Unavailable

22

WASHER(10)

7555774

Unavailable

23

A-FRAME,LH,(BLACK) Substituted by 2200479

1580039-067

Unavailable

23

A-FRAME,RH,(BLACK) Substituted by 2200480

1580040-067

Unavailable

24

SHAFT,'A' ARM

5020477

Unavailable

25

PIN, COTTER(10)

7661404

$4.79

26

BUSHING(10)

7555781

Unavailable

27

BUSHING,STRG.,LOWER Substituted by 5431570

5430895

Unavailable

28

KEY, SQUARE,SPEEDO. Substituted by 3280165

3280134

$18.10

29

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

30

SCREW(10)

7512307

$3.99

31

BRKT, IGN. PANEL

5220965-067

Unavailable

32

NUT-LOCK(10)

7542122

$1.49

33

GRIP, HANDLEBAR

5431030

$24.27

34

BOLT,(10)

7512265

$3.99

35

TIE ROD

5020478

$48.56

36

ROD END, RH Substituted by 7060172

7060138

$56.65

37

ROD END

7060147

$56.65

38

NUT, RH, 10 MM.(10)

7546901

$2.39

39

NUT, LH, 10 MM.(10)

7546902

Unavailable

40

Boot, Rubber

5410548

Unavailable

40

KIT, BALL JOINT (Incl. 12, 40 & 60)

2200290

$34.92

41

DECAL,O'RIDE SWITCH Substituted by 7076274

7072390

Unavailable

42

DECAL,THROTTLE(ENG.) [No Longer Available]

7072724

Unavailable

43

BUSHING,UPPER STRG. Substituted by 5431573

5431138

$8.48

44

SPEEDOMETER, ATV

3280129

Unavailable

45

MOUNT, SPEEDOMETER

5410546

Unavailable

46

BRACKET,SPEEDO

5222269-067

$15.67

47

SPACER,SPEEDO.MTG.

5810442

$10.99

48

PLATE,MTG,(SPEEDO)

5211189

$12.99

49

WASHER(10)

7555725

Unavailable

50

HAIRPIN, COTTER(10)

7660701

$1.99

52

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

53

ADAPTER,DRIVE,(1:1.2),ATV Substituted by 3280219

3280128

Unavailable

54

CABLE, SPEEDOMETER Substituted by 3280184

3280130

Unavailable

55

SEAL, SPEEDO.CABLE

3280132

Unavailable

56

CLIP(10)

7080278

$2.63

57

ZERK,FITTING,THREADED(10)

7080433

$1.49

58

WASHER(10)

7555806

$1.49

59

BUSHING(10)

7556401

$4.99

60

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

61

SEAL, ANGLE DRIVE

3280131

$12.39

62

BUSHING,SPEEDO.DRIVE

3280133

Unavailable

63

HARNESS, SPEEDO

2460387

Unavailable
