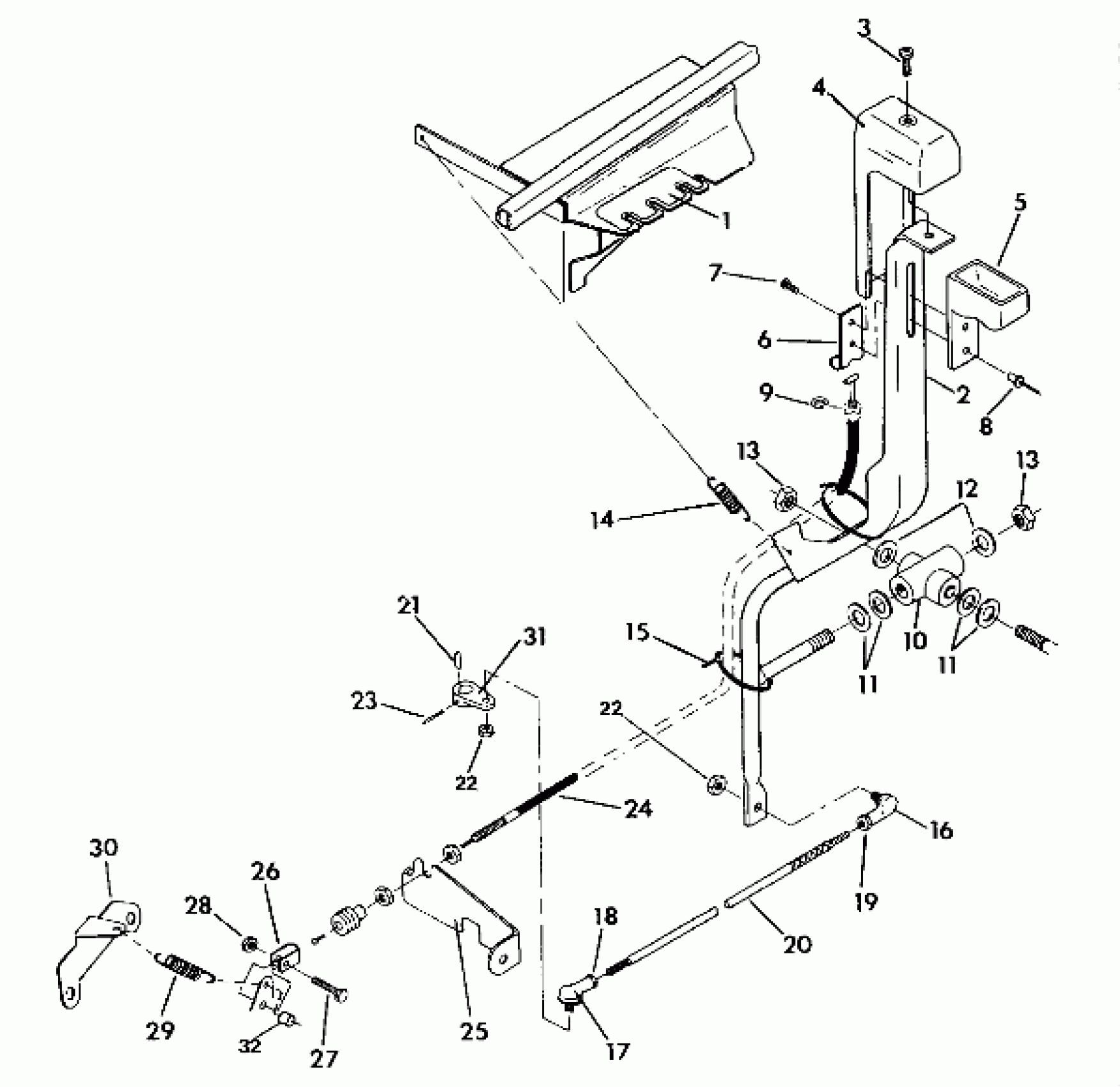

Polaris TRAIL BOSS 350L 2X4 - W927539 SHIFT LINKAGE ASSEMBLY 350 2X4 / W927539 (4922882288010A) Diagram

#

Description
Price

1

DECAL,SHIFT PATTERN [No Longer Available]

7072905

Unavailable

2

LEVER,SHIFT WELD.

1341069-067

Unavailable

3

SCREW(10)

7512029

Unavailable

4

HANDLE,SHIFT LEVER

5431267

Unavailable

5

LEVER,SHIFT(ACTUATOR)

5431266

Unavailable

6

CLIP,CABLE CONNECT.

5222576

Unavailable

7

SCREW(10)

7511868

Unavailable

8

RIVET, POP(50)

7621322

$0.56

9

RING,RETAIN.EXT.(10)

7710421

$1.83

10

BLOCK,SHIFT POINT

5431106

$44.51

11

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

11

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

12

WASHER,WROUGHT(10)

7558302

$1.59

13

NUT FLEX-LOC(10)

7542303

$6.39

13

NUT FLEX-LOC(10)

7542303

$6.39

14

SPRING,SHIFT LEVER

7041227

$5.75

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

ROD END, LH Substituted by 7061013

7060141

$65.33

17

ROD END, RH Substituted by 7061014

7060142

$65.33

18

NUT(10)

7546701

$3.99

19

NUT(10)

7546702

$1.49

20

ROD,SHIFT LINKAGE

5020538

Unavailable

21

KEY, HI-PRO

7721113

Unavailable

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

23

PIN, SPIRAL(10)

7661506

Unavailable

24

CABLE, SHIFT

7080420

Unavailable

25

SHIFTLOCK, CABLE,BLK.

5222569-067

Unavailable

26

PIN, CLEVIS

7080316

Unavailable

27

BOLT, BLACK(10)

7512282

$1.49

28

NUT HEX-LOCK(10)

7542101

$3.99

29

SPRING,LOCK(TRANS.)

7042035

Unavailable

30

BRKT,SPRING,SHIFTLOCK

5222570-067

Unavailable

31

LEVER, SHIFT

5130783

Unavailable

32

BUSHING

5332795

$5.56
