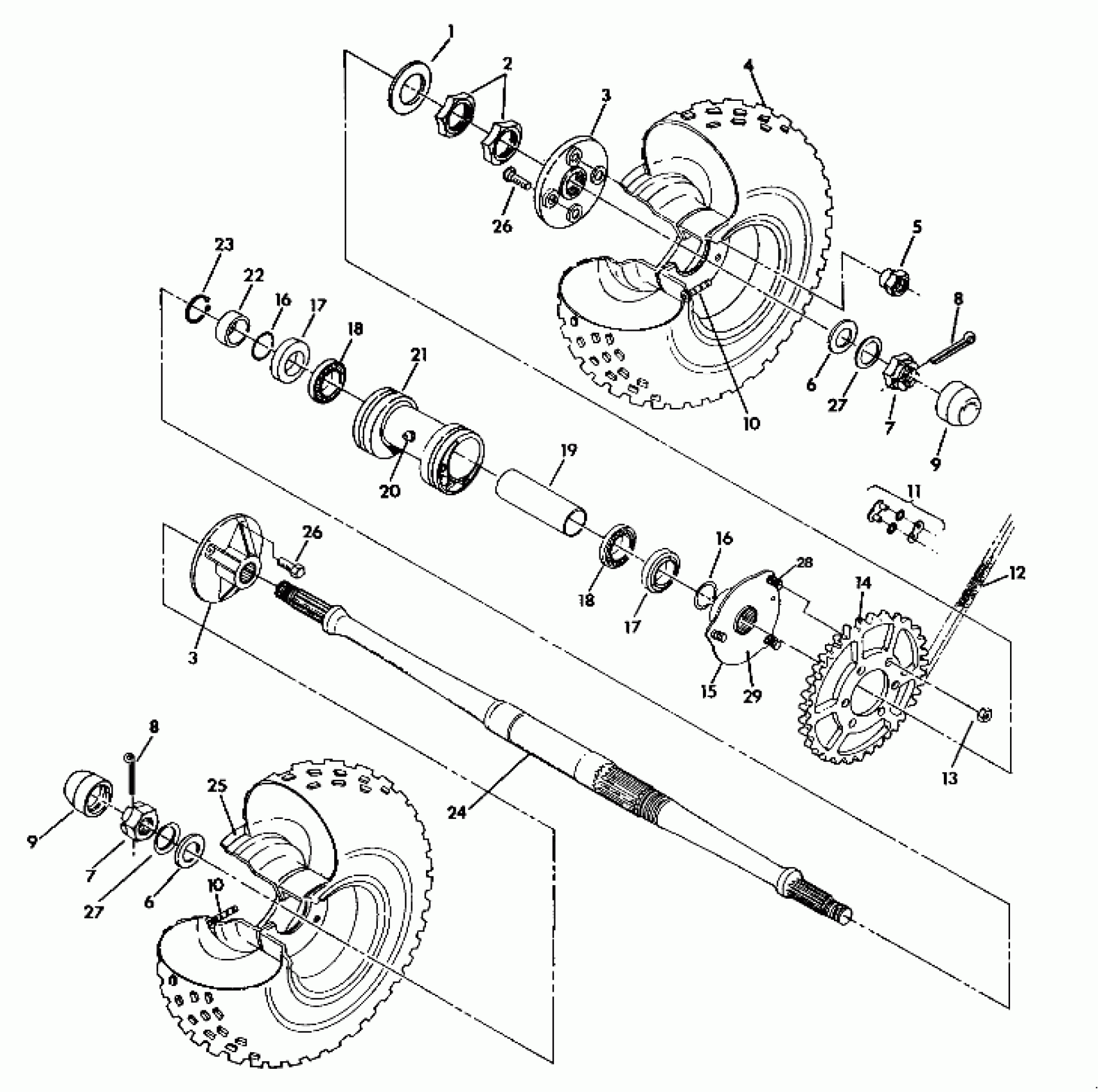

Polaris TRAIL BOSS 350L 2X4 - W927539 REAR WHEEL DRIVE ASSEMBLY 350 2X4 / W927539 (4922882288019A) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

$39.59

3

KIT, MACH.HUB

2200341

$93.08

3

KIT, MACH.HUB

2200341

$93.08

4

TIRE,R(24X11-10)

5410479

Unavailable

5

NUT, WHEEL(10)

7542714

$1.59

6

WASHER(10)

7555745

$7.19

6

WASHER(10)

7555745

$7.19

7

NUT, CASTLE(10)

7543005

Unavailable

7

NUT, CASTLE(10)

7543005

Unavailable

8

PIN, COTTER(10)

7661404

$4.79

8

PIN, COTTER(10)

7661404

$4.79

9

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

9

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

10

VALVE-RIM

1525017

$5.59

10

VALVE-RIM

1525017

$5.59

11

CONNECTOR LINK

3225024

$19.99

12

CHAIN, DRIVE, 84P Substituted by 3224056-084 (Includes Connector)

3224047

Unavailable

13

NUT LOCK(10)

7542403

$3.99

14

SPROCKET, 34T Substituted by 3222068

3222050

$109.99

15

SPROCKET HUB ASM.

1520170

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

17

SEAL, REAR AXLE

3610013

$19.99

17

SEAL, REAR AXLE

3610013

$19.99

18

Bearing, Ball

3515501

$27.99

18

Bearing, Ball

3515501

$27.99

19

TUBE,BEARING SPACER

5010204

Unavailable

20

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

21

HOUSING, AXLE

5130663

Unavailable

22

SPACER,BEARING

5010206

$35.99

23

RING, SNAP(10)

7710405

$4.79

24

AXLE, REAR

5020504

$239.99

25

RIM,REAR, WELD. (Primed)

1520114

Unavailable

26

BOLT, WHEEL(10)

7512673

$3.19

26

BOLT, WHEEL(10)

7512673

$3.19

27

WASHER, CONE(10)

7555796

$7.99

27

WASHER, CONE(10)

7555796

$7.99

28

STUD(10)

7515513

$1.49

29

SPROCKET HUB ASM. (Includes 15, 28)

1520170

Unavailable
