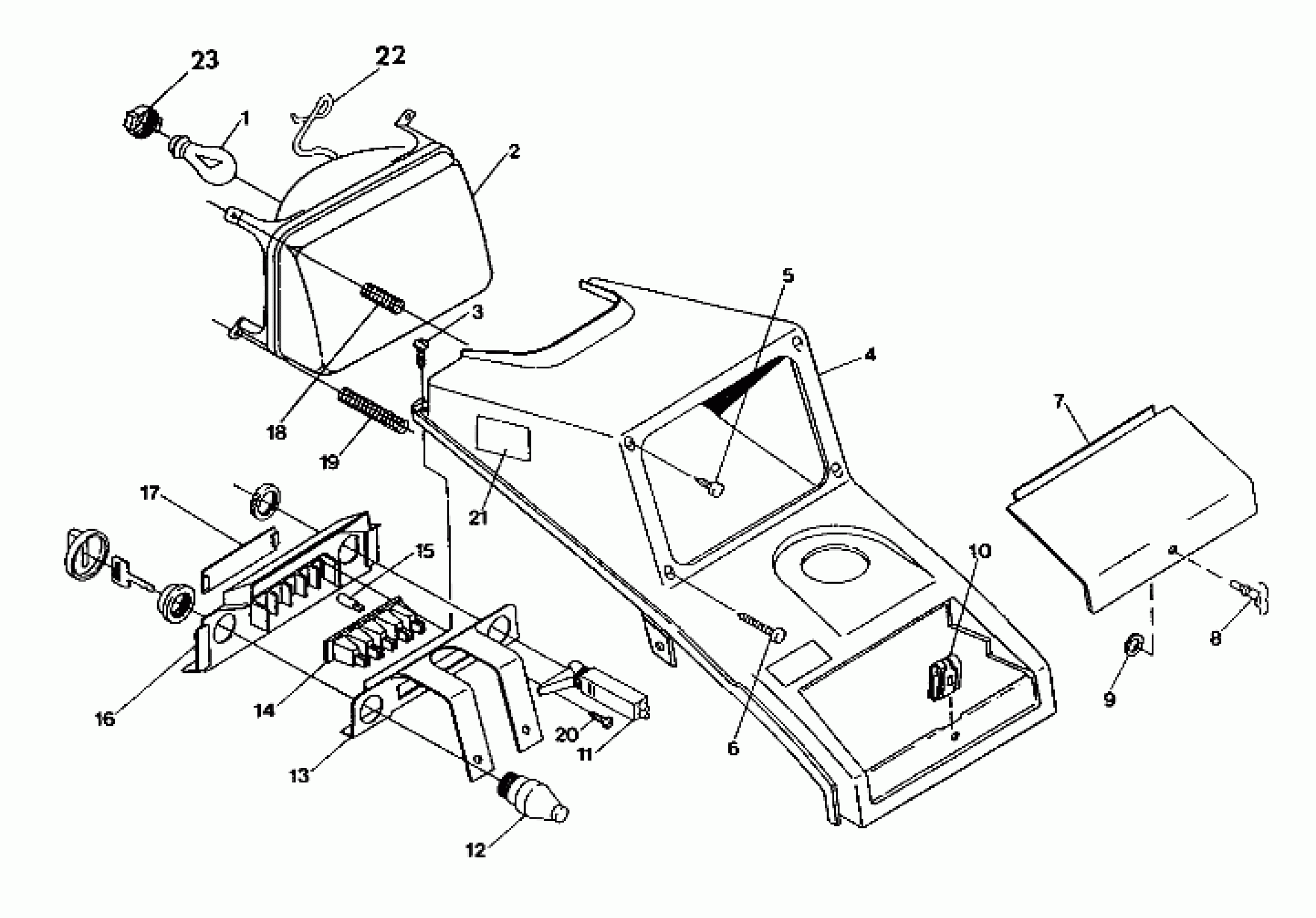

Polaris TRAIL BOSS 350L 2X4 - W927539 HEADLIGHT ASSEMBLY 350 2X4 / W927539 (4922882288008A) Diagram

BULB

4030042

Unavailable

HEADLIGHT ASM.

4032038

Unavailable

SCREW(10)

7512017

$4.79

COVER,(P.RED),H/L.

5431202-136

Unavailable

SCREW, ADJ.(10)

4032003

Unavailable

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

DOOR,ACCESS(P.RED)

5431201-136

Unavailable

FASTENER, 1/4 TURN(10)

7670064

$6.23

RING,SPLIT RETAINER(10)

7670065

$1.99

RECEPTACLE,CLIP-ON(10)

7670066

$3.83

KIT-CHOKE CONTROL

2200188

$24.27

CABLE, CHOKE

7080371

$97.13

SWITCH,IGN.(MODIFIED) Substituted by 4110140

4110086

$137.60

BRKT, IGN. PANEL

5220965-067

Unavailable

STRIP, SOCKET

4032037

$27.19

BULB

4030042

Unavailable

PANEL, IGNITION

5430995

Unavailable

LENS ASM,PILOT LIGHT

2652049

Unavailable

SPRING-ADJ

4032002

Unavailable

SPRING,ADJ.

4032041

Unavailable

SCREW, SEM(10)

7511862

$6.99

DECAL,'350 LIQUID'

7073444

Unavailable

RETAINER,H/L BULB

4032063

Unavailable

COVER,SOCKET,H/L. Note: Ignition key may be ordered by using the 4 digit number on the ignition switch.

4032066

Unavailable
