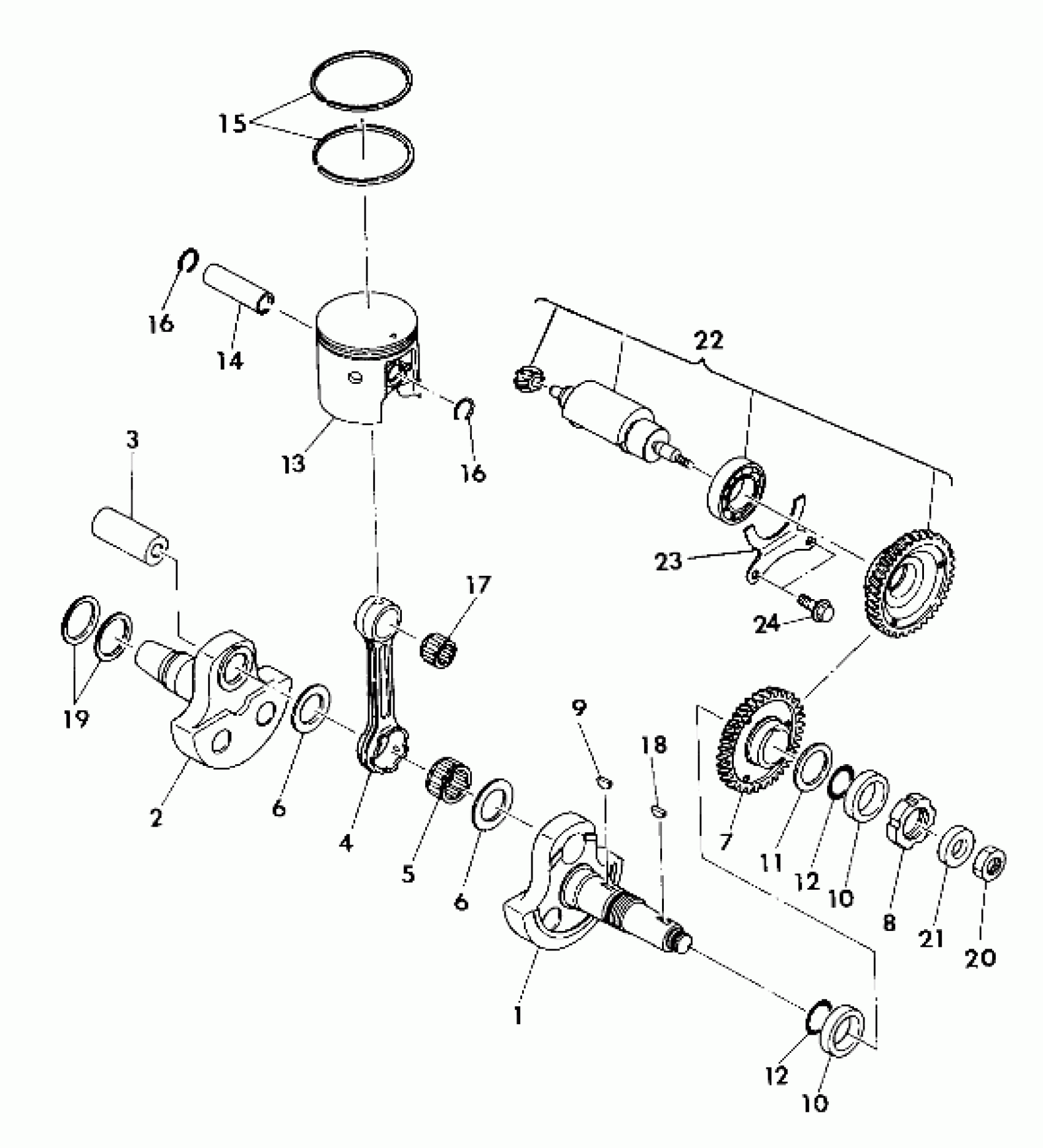

Polaris TRAIL BOSS 350L 2X4 - W927539 CRANKSHAFT and PISTON 350 2X4 / W927539 (4922882288032A) Diagram

#

Description
Price

1

CRANKSHAFT #1,MAG SIDE

3084149

$216.99

1

CRANKSHAFT ASM,(350L) Substituted by 3084776 (Incl. 1-6)

3084367

Unavailable

2

CRANKSHAFT #2,PTO SIDE

3084151

$223.01

3

PIN, CRANK #1

3084152

$78.39

4

Rod, Connecting

3084153

Unavailable

5

Bearing, Large End

3084154

Unavailable

6

SPACER, CRANK PIN (Crank Pin)

3084155

Unavailable

6

SPACER, CRANK PIN (Crank Pin)

3084155

Unavailable

7

GEAR, DRIVE * (Drive)

3084156

$110.32

8

NUT, SLIT Substituted by 3086762 (Slit)

3084157

Unavailable

9

KEY WOODRUFF

3081543

$12.94

10

COLLAR Substituted by 3086763

3084158

Unavailable

10

COLLAR Substituted by 3086763

3084158

Unavailable

11

WASHER, GUIDE Substituted by 3086764

3084159

Unavailable

12

O RING

3084160

Unavailable

12

O RING

3084160

Unavailable

13

PISTON, (.010 O/S) * (0.25mm/.010" O/S)

3084162

Unavailable

13

PISTON, (.020 O/S) (0.50mm/.020" O/S)

3084163

Unavailable

13

PISTON, (STD.) (Standard)

3084161

Unavailable

14

Pin, Piston

3083838

$27.99

15

RING,PISTON,(.020 O/S) (0.50mm/.020" O/S)

3084166

Unavailable

15

RING,PISTON,(.010 O/S) (0.25mm/.010" O/S)

3084165

Unavailable

15

RING, PISTON,(STD.) (Standard)

3084164

Unavailable

16

CLIP,(10) (Piston Pin)

3084167

$6.39

16

CLIP,(10) (Piston Pin)

3084167

$6.39

17

Bearing, Small End

3084168

$31.99

19

SPACER #2, (0.3) (.3mm)

3084170

Unavailable

19

SPACER #1, (0.2) (.2mm)

3084169

Unavailable

20

LOCKNUT

3083905

Unavailable

21

WASHER Substituted by 3086767

3083904

Unavailable

22

BALANCER Substituted by 3087042

3084172

Unavailable

23

PLATE Substituted by 3086768

3084173

$25.40

24

BOLT, FLANGE Substituted by 3086769

3084174

Unavailable
