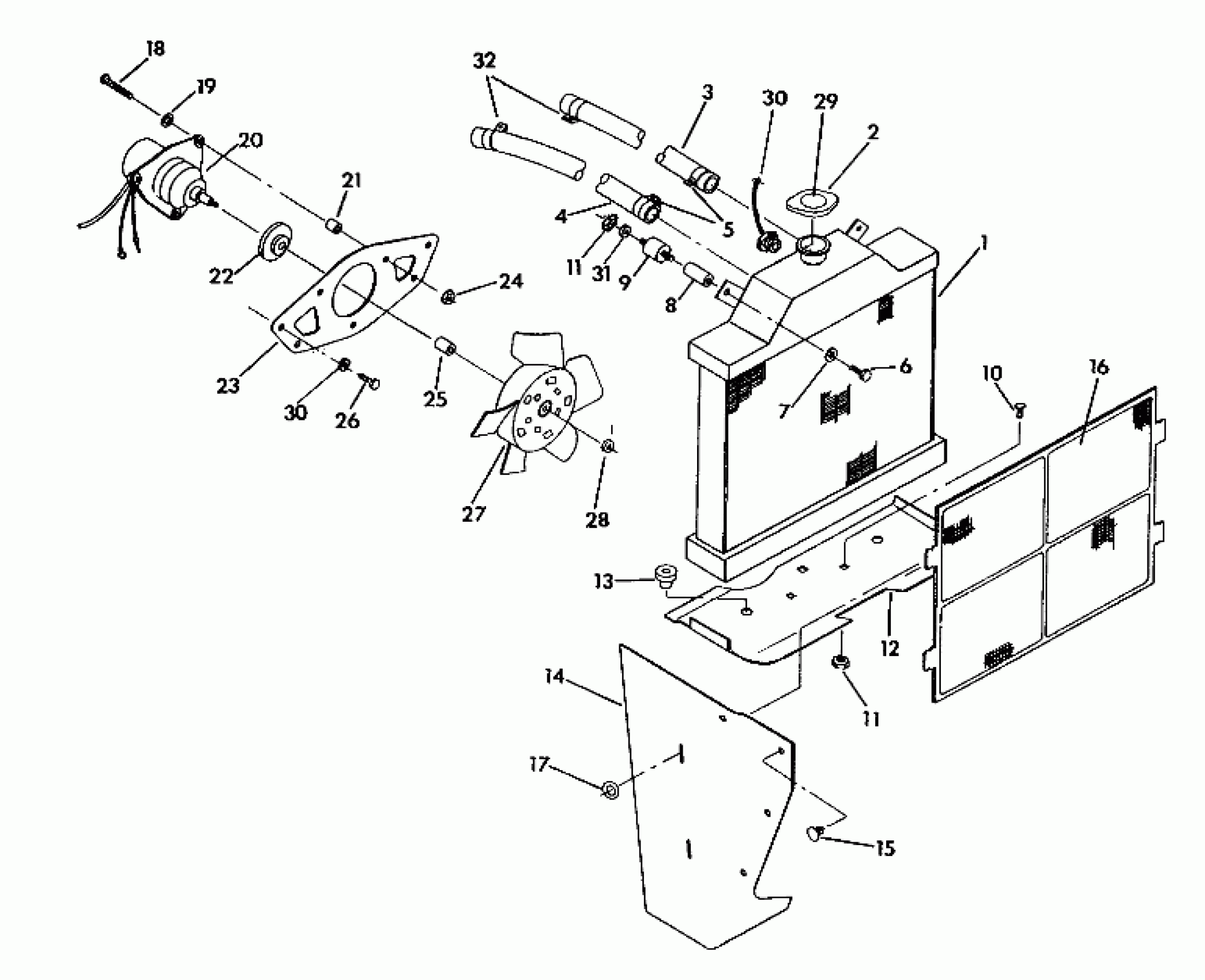

Polaris TRAIL BOSS 350L 2X4 - W927539 COOLING SYSTEM 350 2X4 / W927539 (4922882288007A) Diagram

#

Description
Price

1

RADIATOR

1240006

Unavailable

2

CAP, RADIATOR Substituted by 2511270

2511189

$24.27

3

HOSE,ENG,UPPER

5410570

$48.56

4

HOSE, LOWER ENG.

5410606

Unavailable

5

CLAMP-HOSE Substituted by 7080547

7080225

Unavailable

6

SCREW(10)

7512113

$3.97

7

WASHER(10)

7552605

$5.69

8

Spacer, Mount

5020572

$8.73

9

Mount, Rubber

3110032

Unavailable

10

BOLT(10)

7512193

$2.38

11

NUT-LOCK(10)

7542122

$1.19

11

NUT-LOCK(10)

7542122

$1.19

12

GUARD,LOW.RADIATOR

5222547-067

Unavailable

13

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

14

SHIELD,LH RADIATOR

5431188

Unavailable

14

SHIELD,RH RADIATOR

5431189

Unavailable

15

Clip, Dart

7670067

$3.97

16

SCREEN, RADIATOR Substituted by 5431610

5431228

Unavailable

17

O RING

5410607

Unavailable

18

SCREW(10)

7511867

Unavailable

19

WASHER, FLAT(10)

7558201

$5.79

20

MOTOR, FAN Substituted by 3084266

2410006

Unavailable

21

SPACER, FAN BRKT.

5333073

$3.81

22

COVER

3083951

Unavailable

23

BRKT,COOLING FAN Substituted by 5224741-067

5222559-067

Unavailable

24

NUT(10)

7541915

Unavailable

25

BUSHING

3083950

Unavailable

26

SCREW(10)

7512252

Unavailable

27

BLADE, FAN Substituted by 5240822

5431262

$57.14

28

NUT

3083952

Unavailable

29

DECAL(CPSC),RAD.CAP

7073068

Unavailable

30

SWITCH,RADIATOR THERMO.

4110099

Unavailable

30

SWITCH,RADIATOR THERMO.

4110099

Unavailable

31

WASHER(10)

7558301

$1.19

32

CLAMP-HOSE,(10) Substituted by 7080475

7080233

Unavailable
