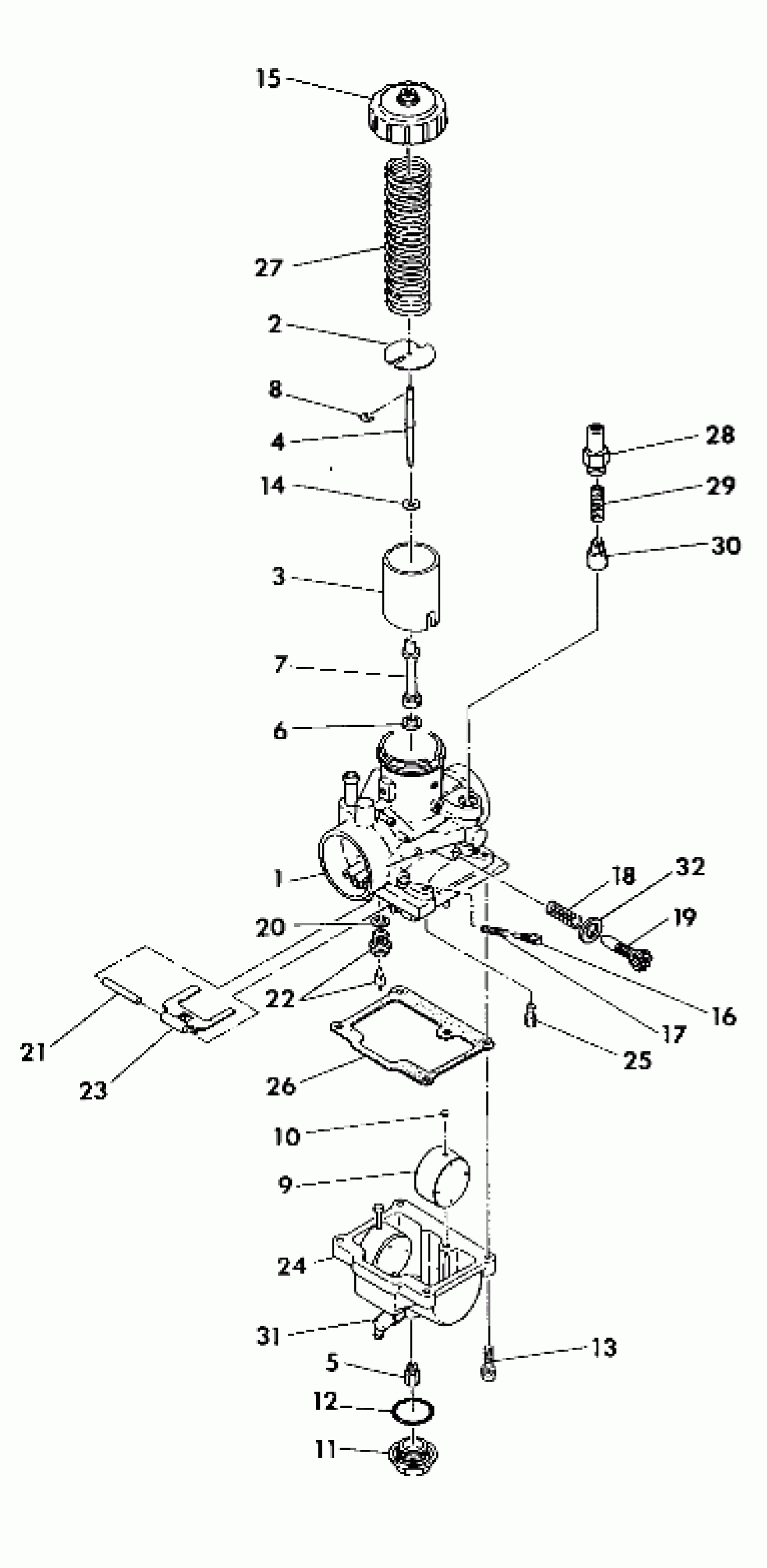

Polaris TRAIL BOSS 350L 2X4 - W927539 CARBURETOR ASSEMBLY 350 2X4 / W927539 (4922882288035A) Diagram

#

Description
Price

1

CARBURETOR

3130425

Unavailable

2

PLATE

3130027

$10.51

3

VALVE,THROTTLE(1.5) (1.5)

3130427

Unavailable

4

JET NEEDLE,6DH5-3 (6DH29-2)

3130391

Unavailable

5

JET,MAIN,HX.HD#200(10) (#200)

3130123

$8.08

6

RING, MAIN JET (Main Jet)

3130393

Unavailable

7

NEEDLE JET ASM. (0-6(480))

3130429

Unavailable

8

E RING(10) Substituted by 3130508

3130003

$6.46

9

FLOAT ASM.

3130430

$48.40

10

CAP,(10)

3130237

$4.03

11

Screw, Guide

3130432

$27.78

12

O RING

3130239

Unavailable

13

SCREW & WASHER(10)

3130025

$3.17

14

Washer

3130355

$7.14

15

TOP ASM. Substituted by 3130184

3130435

$24.74

16

AIR SCREW Substituted by 3130011

3130369

$19.84

17

SPRING,AIR ADJUST (Air Adjuster)

3130012

$9.70

18

SPRING,THROT.ADJ. (Throttle Adjuster)

3130436

Unavailable

19

SCREW,THROTTLE STOP

3130009

Unavailable

20

PACKING(10)

3130017

$4.03

21

PIN, FLOAT

3130361

$9.70

22

VALVE, NEEDLE (2.5)

3130360

$56.99

23

ARM,FLOAT

3130018

$28.32

24

BOWL, FLOAT (350)

3130443

Unavailable

25

JET,PILOT,#30(10) (#30)

3130065

$9.70

26

PACKING,FLOAT CHAMBER

3130020

$16.17

27

SPRING,THROTTLE

3130439

$14.56

28

HOLDER,GUIDE

3130199

$28.32

29

SPRING,PLUNGER

3130006

$9.70

30

PLUNGER ASM. Substituted by 3130328

3130440

$36.41

31

VENT, ELBOW

3130442

Unavailable

32

Washer

3130447

Unavailable
