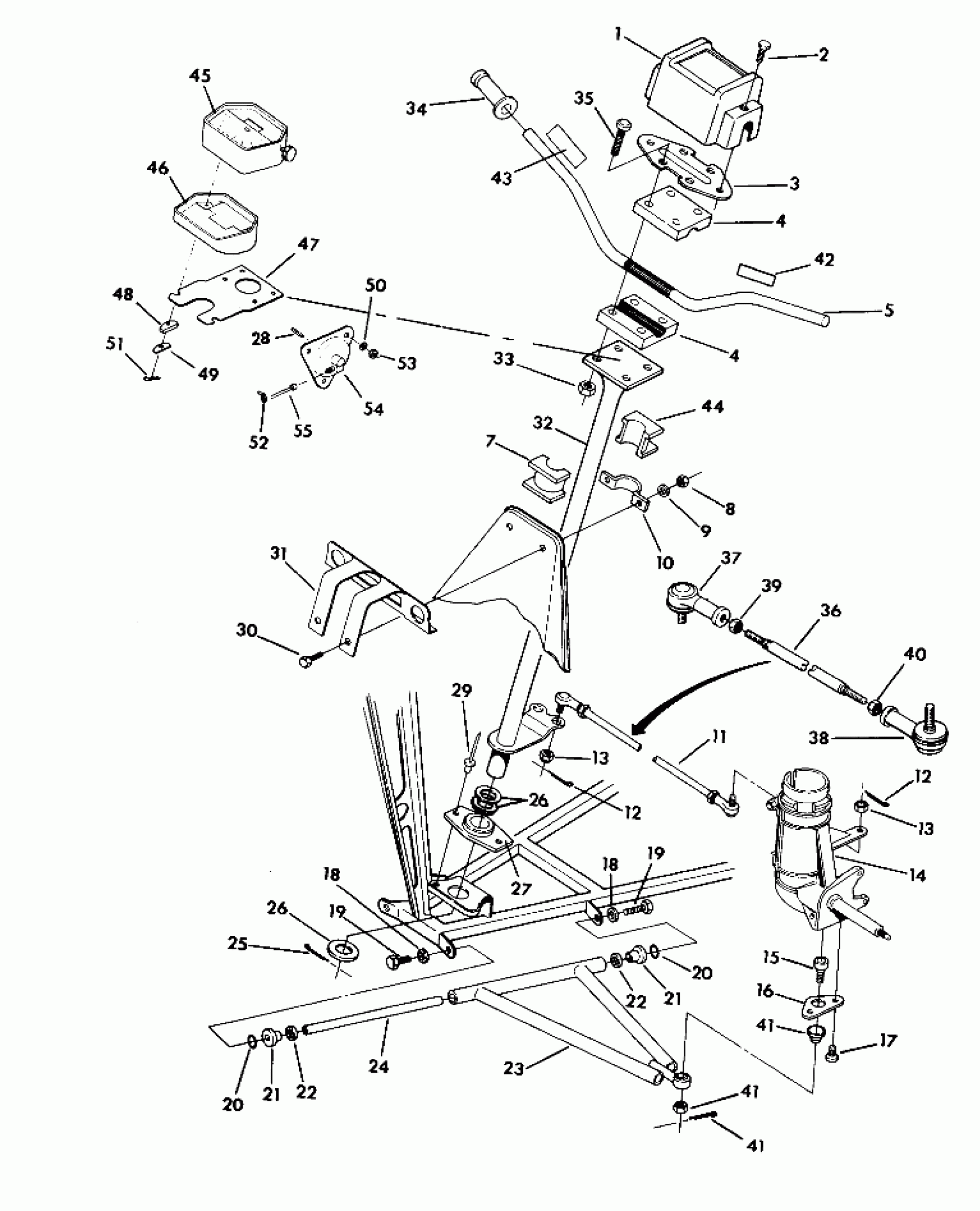

Polaris TRAIL BOSS 350L 2X4 - W917539 STEERING ASSEMBLY 350 2X4 - Update (4919821982011A) Diagram

#

Description
Price

1

PAD, HANDLEBAR

5810379

$40.46

2

BOLT(10) Substituted by 7515197

7512286

Unavailable

3

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$3.65

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$3.65

5

TUBE,HDLBAR.(4WHL) Substituted by 5224316-067

5224316

Unavailable

7

BUSHING,STRG.,UPPER Substituted by 5431572

5430966

Unavailable

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

BRKT,UP.STRG.BUSH,BLK. Substituted by 5222999-067

5220887-067

$32.37

11

TIE ROD ASM. Substituted by 1822307

1822070

Unavailable

12

PIN COTTER(10)

7661203

$1.49

12

PIN COTTER(10)

7661203

$1.49

13

NUT, CASTLE(10)

7546904

$4.79

13

NUT, CASTLE(10)

7546904

$4.79

14

SUPPORT,LH STRUT

5130803

Unavailable

14

SUPPORT,RH STRUT

5130804

Unavailable

15

BALL JOINT Substituted by 7080673

7080364

Unavailable

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

20

O RING

5410458

Unavailable

20

O RING

5410458

Unavailable

21

BEARING,'A' ARM Substituted by 2200474

3576509

Unavailable

21

BUSHING, A-ARM ("J" Model Only)

3563604

Unavailable

21

BEARING,'A' ARM Substituted by 2200474

3576509

Unavailable

21

BUSHING, A-ARM ("J" Model Only)

3563604

Unavailable

22

WASHER(10)

7555774

Unavailable

22

WASHER(10)

7555774

Unavailable

23

A-FRAME,LH,(BLACK) Substituted by 2200479

1580039-067

Unavailable

23

A-FRAME,RH,(BLACK) Substituted by 2200480

1580040-067

Unavailable

24

SHAFT,'A' ARM

5020477

Unavailable

25

PIN, COTTER(10)

7661404

$4.79

26

BUSHING(10)

7555781

Unavailable

26

BUSHING(10)

7555781

Unavailable

27

BUSHING,STRG.,LOWER Substituted by 5431570

5430895

Unavailable

28

KEY,SQUARE,(SPEEDO) Substituted by 3280134

3280110

Unavailable

29

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

30

SCREW(10)

7512307

$3.99

31

BRKT, IGN. PANEL

5220965-067

Unavailable

32

POST, STEERING, BLACK

1843028-067

Unavailable

33

NUT-LOCK(10)

7542122

$1.49

34

GRIP, HANDLEBAR

5431030

$24.27

35

BOLT,(10)

7512265

$3.99

36

TIE ROD

5020478

$48.56

37

ROD END, RH Substituted by 7060172

7060138

$56.65

38

ROD END

7060147

$56.65

39

NUT, RH, 10 MM.(10)

7546901

$2.39

40

NUT, LH, 10 MM.(10) (Includes boot, nut & cotter pin)

7546902

Unavailable

41

KIT, BALL JOINT

2200290

Unavailable

41

KIT, BALL JOINT

2200290

Unavailable

41

KIT, BALL JOINT

2200290

Unavailable

42

DECAL,O'RIDE SWITCH Substituted by 7076274

7072390

Unavailable

43

DECAL,THROTTLE(ENG.) [No Longer Available]

7072724

Unavailable

44

BUSHING,UPPER STRG. Substituted by 5431573

5431138

$8.48

45

SPEEDOMETER, ATV Substituted by 3280129

3280107

Unavailable

46

MOUNT, SPEEDOMETER

5410546

Unavailable

47

BRACKET,SPEEDO

5222269-067

$15.67

48

SPACER,SPEEDO.MTG.

5810442

$10.99

49

PLATE,MTG,(SPEEDO)

5211189

$12.99

50

WASHER(10)

7555725

Unavailable

51

HAIRPIN, COTTER(10)

7660701

$1.99

52

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

53

ADAPTER,DRIVE Substituted by 3280116

3280095

Unavailable

54

SEAL,ANGLE DRIVE Substituted by 3280131

5810481

Unavailable

55

CABLE,SPEEDOMETER Substituted by 3280130

3280108

Unavailable
