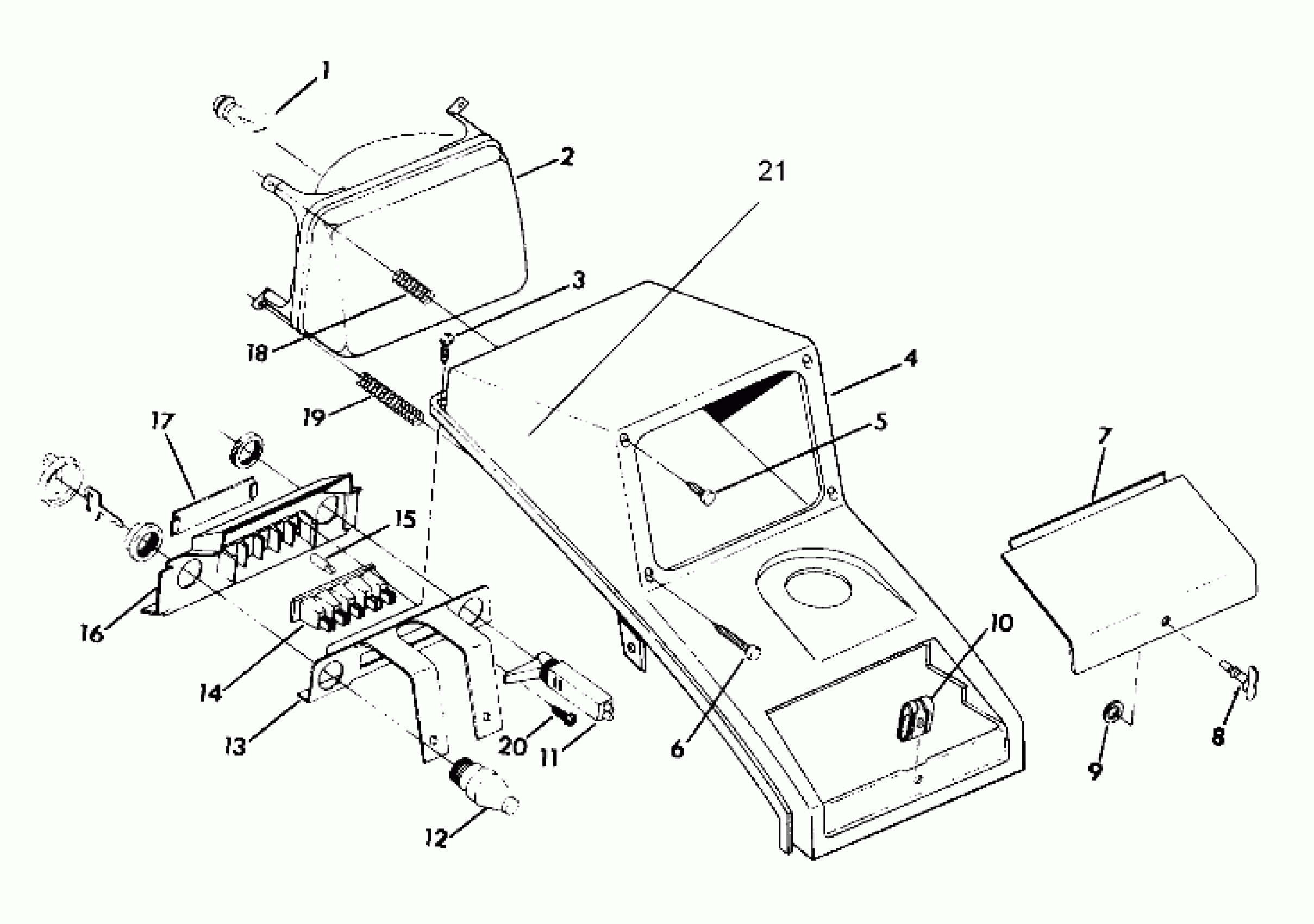

Polaris TRAIL BOSS 350L 2X4 - W917539 HEADLIGHT ASSEMBLY 350 2X4 - Update (4919821982008A) Diagram

#

Description
Price

1

BULB, H/L

4030028

Unavailable

2

HEADLIGHT ASM.

4032038

Unavailable

3

SCREW(10)

7512017

$4.76

4

COVER,OIL TANK&H/L

5431202-143

Unavailable

5

SCREW, ADJ.(10)

4032003

$5.99

6

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

7

DOOR,ACCESS,LT.GREY

5431201-143

Unavailable

8

FASTENER, 1/4 TURN(10)

7670064

$6.19

9

RING,SPLIT RETAINER(10)

7670065

$1.98

10

RECEPTACLE,CLIP-ON(10)

7670066

$3.81

11

KIT-CHOKE CONTROL

2200188

$28.32

11

CABLE, CHOKE

7080371

$97.13

12

SWITCH,IGN.(MODIFIED) Substituted by 4110140

4110086

$137.60

13

BRKT, IGN. PANEL

5220965-067

Unavailable

14

STRIP, SOCKET

4032037

$26.98

15

BULB

4030042

$8.08

16

PANEL, IGNITION

5430995

Unavailable

17

LENS ASM,PILOT LIGHT

2652049

Unavailable

18

SPRING-ADJ

4032002

Unavailable

19

SPRING,ADJ.

4032041

Unavailable

20

SCREW, SEM(10)

7511862

Unavailable

21

DECAL, '350 LIQ.'

7073102

Unavailable
