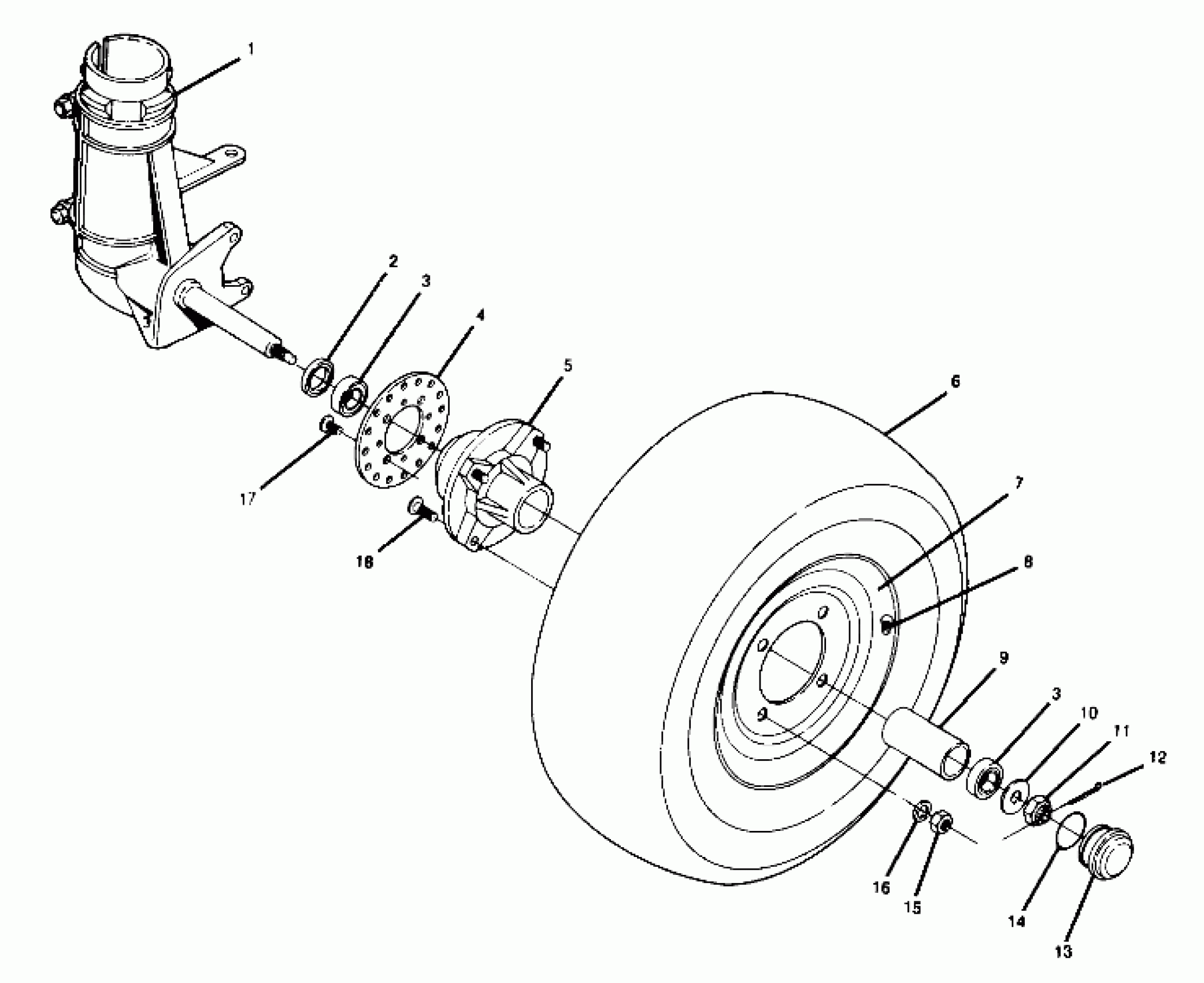

Polaris TRAIL BOSS 350L 2X4 - W917539 FRONT WHEEL ASSEMBLY 350 2X4 (4919821982017A) Diagram

#

Description
Price

1

SUPPORT,LH STRUT

5130803

Unavailable

1

SUPPORT,RH STRUT

5130804

Unavailable

2

SEAL,FRONT HUB

3610020

Unavailable

3

BEARING, BALL

3514001

$19.99

3

BEARING, BALL

3514001

$19.99

4

DISC,BRAKE,FRONT Substituted by 5211325

5211271

$76.89

5

HUB,WHEEL,FRONT

5130658

Unavailable

6

TIRE,FR(22X8-10)

5410480

Unavailable

7

RIM,FRONT,WELD. (Primed)

1520118

Unavailable

8

VALVE-RIM

1525017

$5.59

9

SPACER, HUB,FRONT

5010256

Unavailable

10

WASHER(10)

7555721

$1.49

11

NUT(10)

7542712

$9.59

12

COTTER PIN(10)

7661407

$4.79

13

CAP, HUB

5431018

$14.39

14

O RING

5410470

$2.41

15

NUT HEX(10)

7542301

$1.59

16

LOCK WASHER(10)

7552901

$1.49

17

BOLT(10)

7515321

$1.49

18

STUD,WHEEL,5/16-18(10)

7515330

Unavailable
