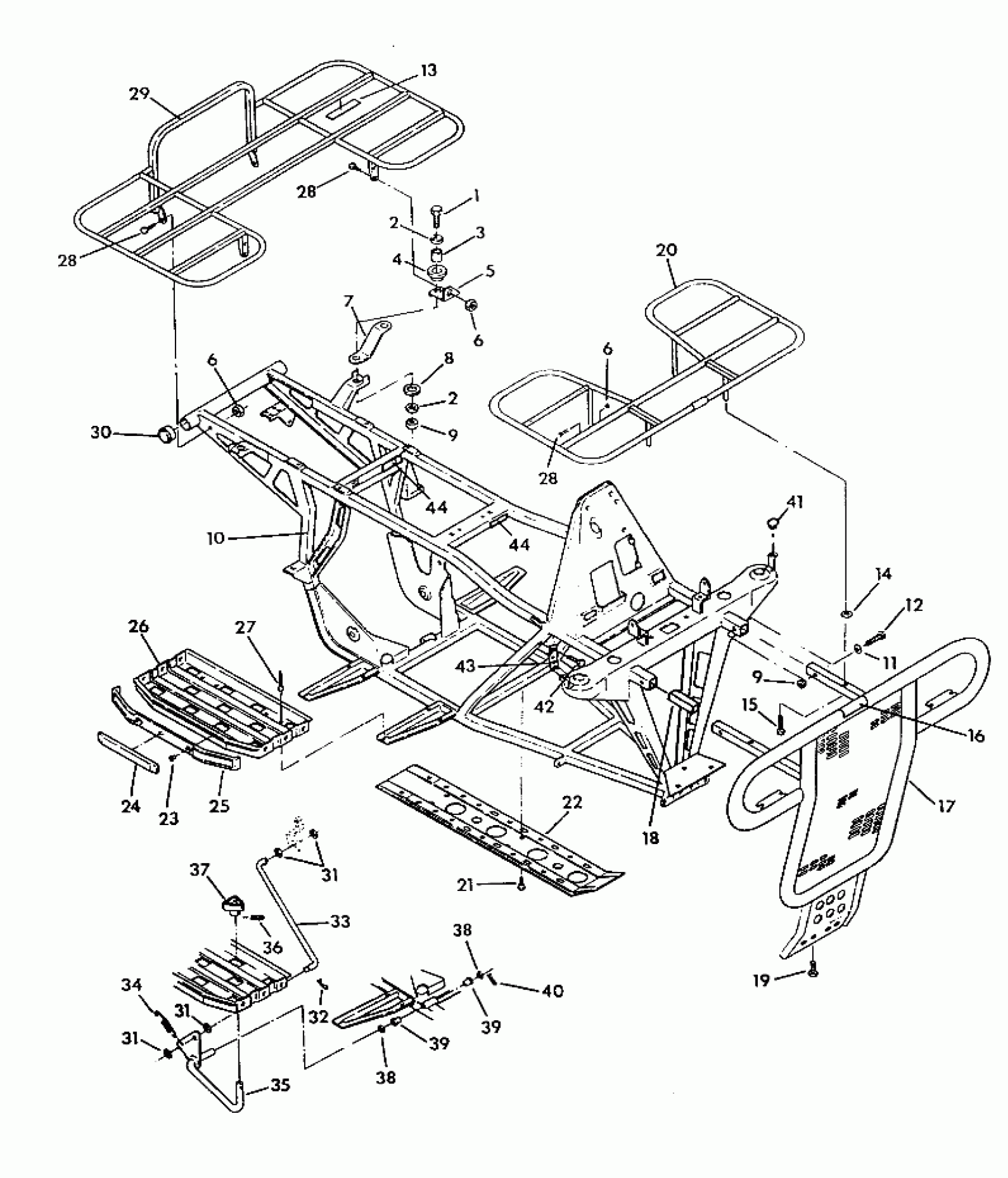

Polaris TRAIL BOSS 350L 2X4 - W917539 FRAME ASSEMBLY w/RACKS 350 2X4 - Update (4919821982003A) Diagram

#

Description
Price

1

SCREW-FLANGED(10)

7515304

$5.59

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,LH SUPPORT RACK Substituted by 5243468-067

5220899-067

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

6

NUT, NYLOK(10) (Nylok)

7542327

$4.79

6

NUT, NYLOK(10) (Nylok)

7542327

$4.79

6

NUT, NYLOK(10) (Nylok)

7542327

$4.79

7

SUPPORT,R.FENDER

5220902-067

$48.40

8

WASHER,RUBBER

5410436

$1.59

9

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

10

FRAME, SQUARE [No Longer Available]

1040233-067

Unavailable

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

BOLT(10)

7512329

$3.99

13

PAD,RACK MOUNT

5810455

$3.19

14

WASHER(10)

7558301

$1.49

15

SCREW(10)

7512126

$4.79

16

DECAL, FR.SUSP.

7073087

Unavailable

17

BUMPER,FRT,BLK(2X4,350)

2670125-067

$138.67

18

PLUG, FRAME

5810467

Unavailable

19

SCREW(10)

7512399

$5.59

20

RACK,FRT,STL.GREY,350 Substituted by 2670137-067

2670120-132

Unavailable

21

BOLT(10)

7512232

$1.49

22

GUARD, ROCK, BLK.

5220922-067

$61.99

23

RIVET,SEMI-TUBE,(50)

7661812

Unavailable

24

REFLECTOR AMBER

2670071

Unavailable

25

RUBRAIL,(FOOTREST) Substituted by 5431484

5431019

Unavailable

26

PAD, FOOT, LH. Substituted by 1040274-117

1040189

$81.75

27

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

28

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

7515341

Unavailable

28

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

7515341

Unavailable

28

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

7515341

Unavailable

29

RACK, REAR Substituted by 2670138-067

2670121-132

Unavailable

30

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

32

PIN, COTTER(10)

7661103

$4.99

33

ROD,BRAKE LINKAGE Substituted by 5224446

5224394

Unavailable

34

SPRING-EXHAUST(10)

7042029

$4.84

35

PEDAL, BRAKE

1910063-067

$13.08

36

PIN, SPIRAL(10)

7661416

Unavailable

37

PEDAL,FOOT

5130715-067

Unavailable

38

WASHER(10)

7555827

$3.99

38

WASHER(10)

7555827

$3.99

39

BUSHING-PEDAL PIVOT

5431107

$8.79

39

BUSHING-PEDAL PIVOT

5431107

$8.79

40

COTTER PIN(10)

7661401

$1.49

41

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

42

SCREW(10)

7512208

$3.99

43

TAB, SPRINGS

5222665

Unavailable
