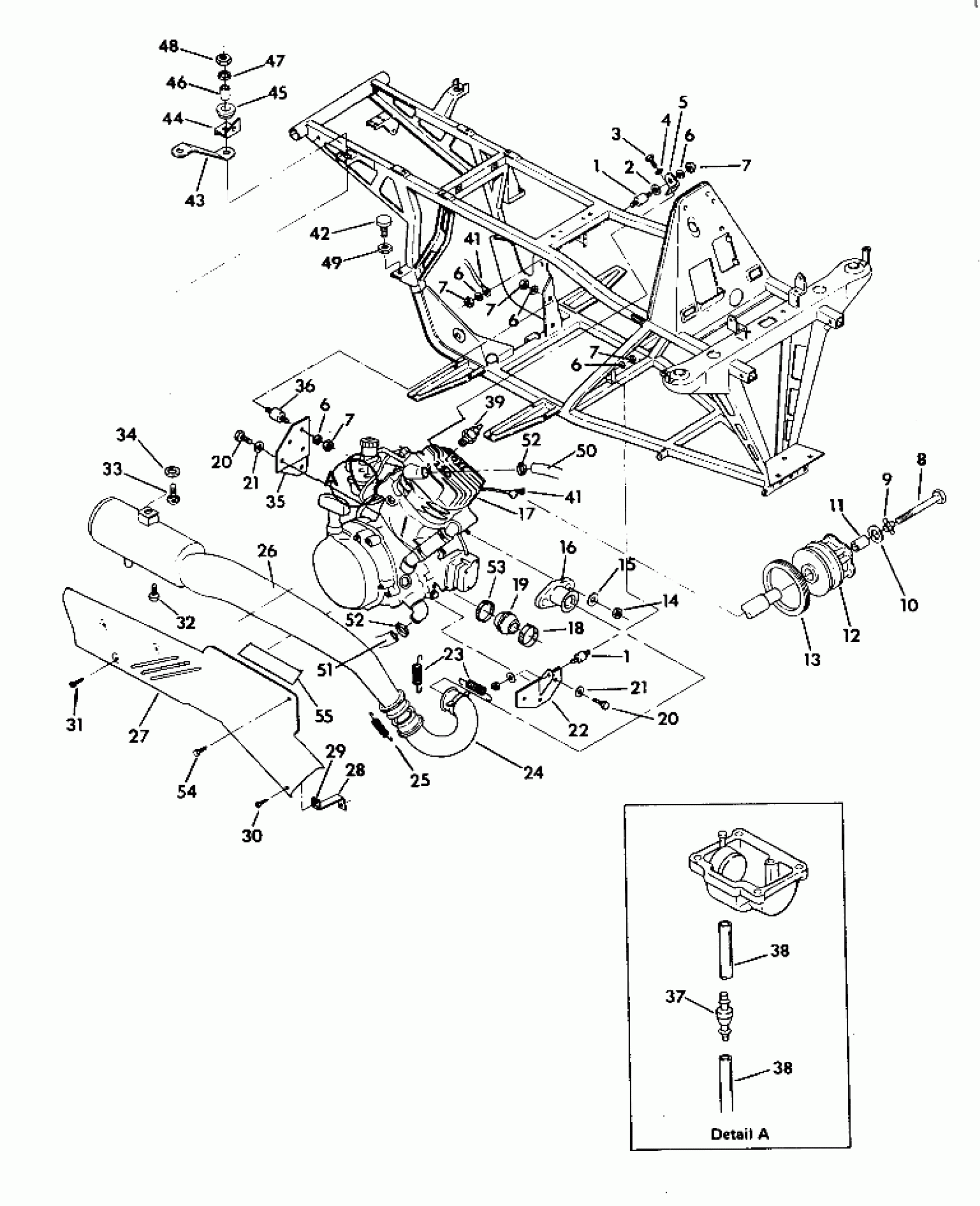

Polaris TRAIL BOSS 350L 2X4 - W917539 ENGINE and MUFFLER MOUNTING 350 2X4 - Update (4919821982005A) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

$40.46

1

MOUNT,MOTOR

3110026

$40.46

2

INSULATOR,MOTOR MT.

5430802

$28.32

3

BOLT(10)

7515321

Unavailable

4

LOCK WASHER(10)

7552901

$1.19

5

MOUNT,ENG.TOP

5222415-067

Unavailable

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

8

BOLT(10)

7512566

$33.24

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

11

BUSHING-.437 X.770 X.50

5430261

$7.14

12

CLUTCH,DRIVE(BASIC) Substituted by 1321605

1321509

$697.13

13

Seal, Cover Case

5410575

$44.51

14

NUT(10)

3080285

Unavailable

15

WASHER LOCK ,(10)

3080530

$3.17

16

MANIFOLD, BLK.

1260543-029

Unavailable

17

ENG.EC35PL-02 [No Longer Available]

1211466

Unavailable

18

CABLE, TIE

7080346

Unavailable

19

BOOT,CLUTCH INTAKE

5410421

$11.32

20

SCREW(10)

7512490

$3.97

20

SCREW(10)

7512490

$3.97

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

22

MOUNT, ENGINE Substituted by 1040231-067

1040231

Unavailable

23

SPRING-EXHAUST(10)

7042029

$5.65

24

HEADPIPE WELD.

1260549-029

Unavailable

25

SPRING, EXHAUST(10)

7042031

$6.46

26

MUFFLER Substituted by 1260588-029

1260547-029

Unavailable

27

SHIELD, MUFFLER

5222417-067

Unavailable

28

BRACKET

5222550-067

Unavailable

29

NUT, SPEED(10)

7670060

$3.97

30

SCREW,(10)

7511997

Unavailable

31

SCREW(10)

7512027

$1.19

32

BOLT(10)

7512666

$2.38

33

BOLT(10)

7515316

$2.38

34

WASHER,RUBBER

5410436

$1.59

35

MOUNT,REAR,ATV

5222416-067

Unavailable

36

MOUNT, MOTOR

3110028

Unavailable

37

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

38

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

38

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

39

SPARKPLUG (10)

3070156

$3.97

41

CABLE,GROUND/ENG.

4010067

Unavailable

41

CABLE,GROUND/ENG.

4010067

Unavailable

42

MOUNT, MOTOR

3110030

Unavailable

43

SUPPORT,R.FENDER

5220902-067

$48.40

44

BRKT,LH SUPPORT RACK Substituted by 5243468-067

5220899-067

Unavailable

44

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

45

DAMPENER

5410241

$5.22

46

BUSHING-RES. MT.

5010192

$6.35

47

WASHER(10)

7555716

$1.59

48

NUT-5/16-18 NYLOK-Y

7542324

$0.79

49

NUT, JAM(10)

7542432

$3.97

50

HOSE,ENG,UPPER

5410570

$48.56

51

HOSE, LOWER ENG.

5410606

Unavailable

52

CLAMP-HOSE Substituted by 7080547

7080225

Unavailable

52

CLAMP-HOSE Substituted by 7080547

7080225

Unavailable

53

CLAMP

7080136

Unavailable

54

BOLT, BLACK(10)

7512282

Unavailable

55

INSULATION

5810510

$14.76
