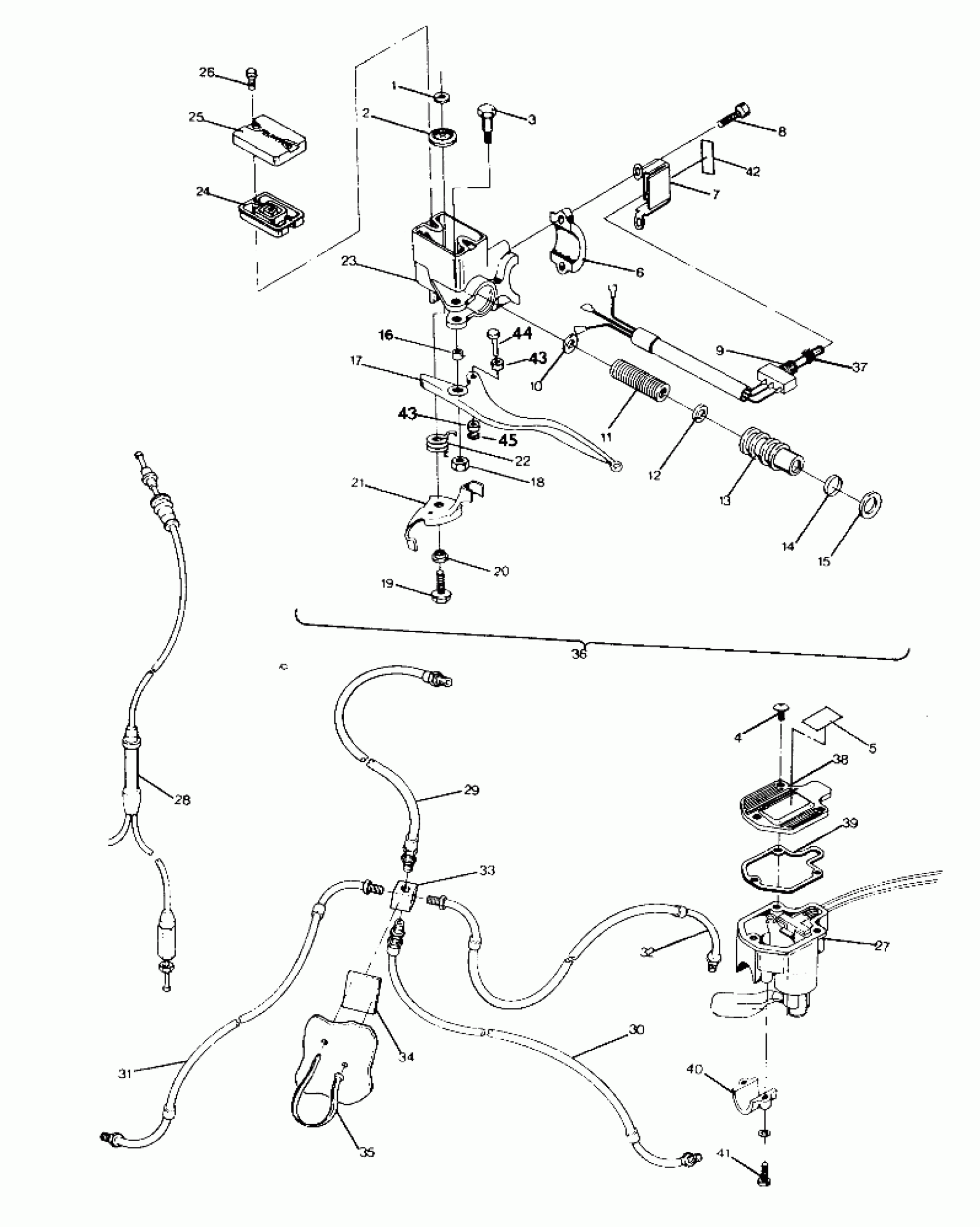

Polaris TRAIL BOSS 350L 2X4 - W917539 CONTROL ASSEMBLY 350 2X4 - Update (4919821982013A) Diagram

#

Description
Price

1

WASHER, BAFFLE(10)

1930662

Unavailable

2

BAFFLE,MASTER CYL.

1930673

Unavailable

3

BOLT,BRAKE LEVER(10)

7512287

Unavailable

4

SCREW,BUTTON HEAD

2010079

Unavailable

5

DECAL,THROTTLE(ENG.) [No Longer Available]

7072724

Unavailable

6

CLAMP, MASTER CYL.

5630342

Unavailable

7

BRKT,O'RIDE SW. Substituted by 5222475

5222318

Unavailable

8

BOLT,SOCKET HEAD(10)

7512290

$4.79

9

SW,O'RIDE,REV.LIMIT.

4110083

$35.99

10

WASHER(10)

7555708

$3.99

11

SPRING,COMPRESSION,(10)

7041203

$33.87

12

U PACKING SEAL

5410164

Unavailable

13

PISTON, MASTER CYL.

5020520

Unavailable

13

PISTON, MASTER CYL. ("J" Model Only)

5020599

Unavailable

14

O RING

5410163

$1.60

15

SEAL, OIL

3610022

Unavailable

16

BUSHING,BRAKE LEVER

5332931

Unavailable

17

LEVER, BRAKE ("J" Model Only)

5630387

Unavailable

17

LEVER, BRAKE

5630370

Unavailable

18

NUT(10)

7542124

Unavailable

19

SCREW(10)

7511866

$4.79

20

BUSHING,PK.BRAKE LEVER

5020545

Unavailable

21

LEVER,PARKING BRAKE

5222310

Unavailable

22

SPRING,PK.BRAKE

7041229

$32.37

23

HSG.,MASTER CYL.

5130772

Unavailable

24

GASKET,MASTER CYL.

5410527

$8.99

25

COVER,MASTER CYL.

5630338

Unavailable

26

SCREW(10)

7512016

Unavailable

27

THROTTLE CONTROL ASM.

2010091

Unavailable

28

CABLE, THROTTLE Substituted by 7080532

7080397

Unavailable

29

LINE,BRAKE,UP.,W/FTGS. Substituted by 1930748 (M/C)

1930633

$84.93

30

LINE,BRAKE,LH.FRT,W/FTGS. Substituted by 1930752

1930631

$84.93

31

LINE,BRAKE,RH FRT. Substituted by 1930753

1930634

$84.93

32

LINE,BRAKE,R.,W/FTGS.

1930632

Unavailable

33

FITTING, TEE

7052044

Unavailable

34

PAD,GAS TANK [No Longer Available]

5850040

Unavailable

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

36

MASTER CYL.ASM.(ATV) Substituted by 2050066 (Incl. 1-5,10-23)("J" Model Only)

2050055

$235.51

36

MASTER CYL.ASM. Substituted by 2050062 (Incl. 1-5,10-23)

2050045

$235.51

37

BOOT, O'RIDE SW.

7080379

Unavailable

38

CAP

2010080

Unavailable

39

PACKING,THROTTLE

2010081

Unavailable

40

HOLDER

2010078

$13.19

41

SCREW, SEMS(10)

2010077

Unavailable

42

DECAL,O'RIDE SWITCH Substituted by 7076274

7072390

Unavailable

43

ROLLER, BRAKE LEVER ("J" Model Only)

5020598

Unavailable

43

ROLLER, BRAKE LEVER ("J" Model Only)

5020598

Unavailable

44

PIN,BRAKELEVER ROLLER ("J" Model Only)

7661627

Unavailable

45

RING, RETAINING(10) ("J" Model Only)

7710425

Unavailable
