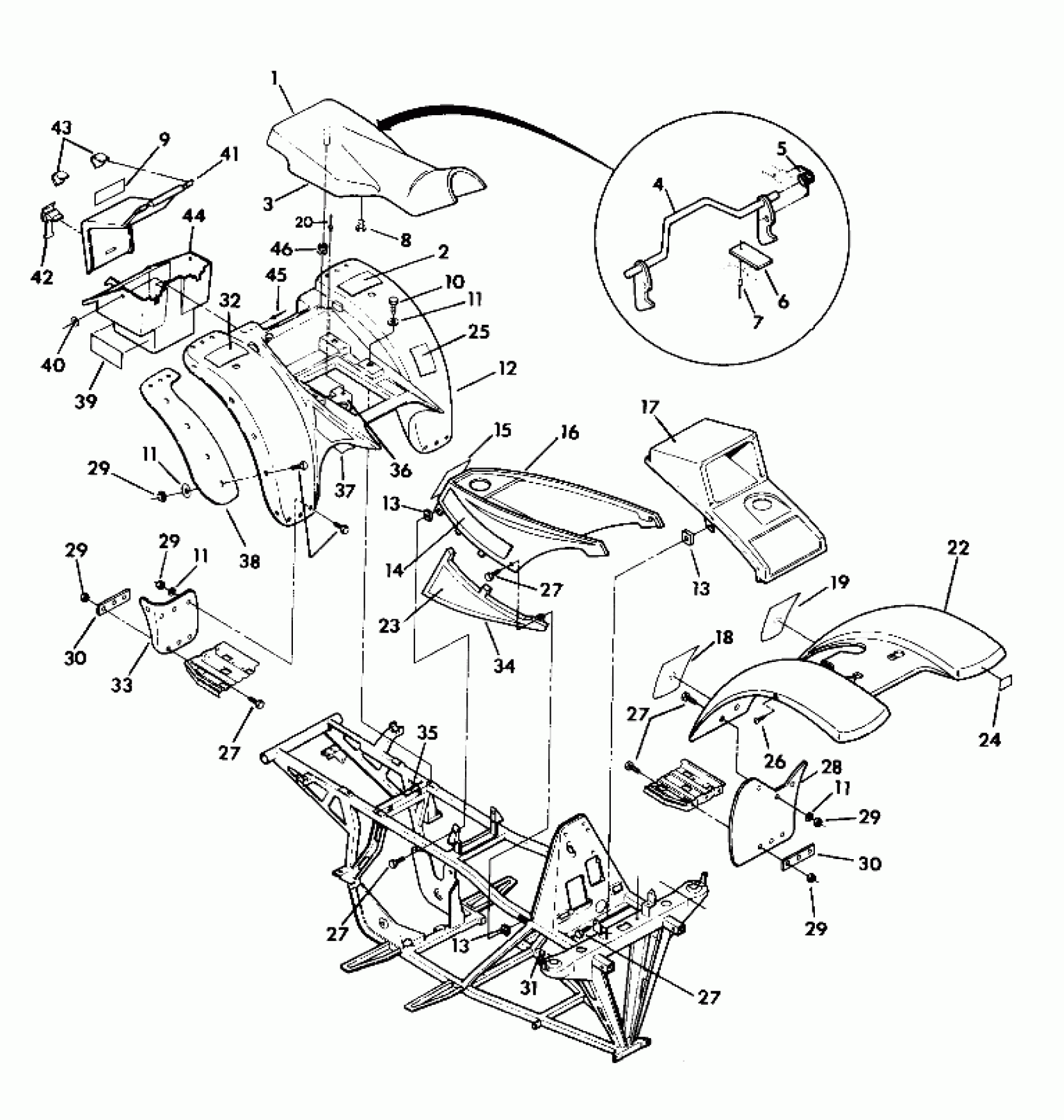

Polaris TRAIL BOSS 350L 2X4 - W917539 BODY ASSEMBLY 350 2X4 - Update (4919821982001A) Diagram

#

Description
Price

1

SEAT,ASM,(2X4)'91 Substituted by 2682357-070

2681516

Unavailable

2

DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]

7072786

Unavailable

3

COVER,SEAT,(GARNET)

2681517

Unavailable

4

LATCH,SEAT

1011558

Unavailable

5

SPRING, LATCH

7041158

Unavailable

6

BRACKET,LEVER RETAINER

5211033

$34.99

7

BLIND RIVET(50)

7621403

$1.19

8

Bumper, Rubber

5410414

$3.17

9

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

10

BOLT(10)

7512232

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

12

CAB,REAR,LT.GREY Substituted by 5431271-143 (Fender)

5430991-143

Unavailable

13

NUT, SPEED(10)

7670060

$3.97

13

NUT, SPEED(10)

7670060

$3.97

13

NUT, SPEED(10)

7670060

$3.97

14

DECAL, '350L-2X4' [No Longer Available]

7073109

Unavailable

15

DECAL(CPSC),AGE WARN. Substituted by 7074827

7072933

Unavailable

16

COVER,FUELTANK,RED

5431263-069

Unavailable

17

COVER,OIL TANK&H/L

5431202-143

Unavailable

18

DECAL(CPSC),WARNING DISC

7073147

Unavailable

19

DECAL,WARNING(CPSC) [No Longer Available]

7072693

Unavailable

20

RIVET,3/16X.402(50)

7621432

$1.19

22

CAB,FR,GRY(4WHL) Substituted by 2631549-143

5431248-143

Unavailable

23

DECAL, SIDE PANEL [No Longer Available]

7072884

Unavailable

24

LABEL, 'U.S.A.'

7073024

Unavailable

25

DECAL(CPSC),TIRE PRESS.(350,2X4) Substituted by 7072809

7073071

Unavailable

26

CLIP, PUSH-ON(10)

7670052

$1.98

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

28

MUDFLAP,FRT,LH,BLK.

5850082-070

$11.51

28

MUDFLAP,FRT,RH,BLK.

5850092-070

$10.63

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

30

BRKT, LH MUD FLAP

5211131-067

Unavailable

30

BRKT, LH MUD FLAP

5211131-067

Unavailable

31

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

32

DECAL(CPSC),WARN,R.RACK [No Longer Available]

7072788

Unavailable

33

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

33

MUDFLAP,RH,LOW REAR

5850077

$23.65

34

COVER,RH(GARNET)SIDE Substituted by 5433579-069

5430971-069

Unavailable

34

COVER,LH(GARNET)SIDE Substituted by 5433382-069

5430970-069

Unavailable

35

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

36

BRKT,R.HOLDDOWN

5220880

Unavailable

37

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

38

MUDFLAP,RH REAR Substituted by 5850090-070

5850090

Unavailable

39

TAPE, FOIL

5810310

Unavailable

39

MUDFLAP,LH REAR Substituted by 5850089-070

5850089

Unavailable

40

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

41

DESC NOT_AVAILABLE

5430769-101

Unavailable

42

STRAP,TOOL COMPARTMENT

5410425

Unavailable

43

CLIP, LID HINGE(10)

7670050

Unavailable

44

BOX,TOOL COMP.

5430882

Unavailable

45

RIVET(50)

7621462

$1.19

46

GROMMET

5410413

Unavailable
