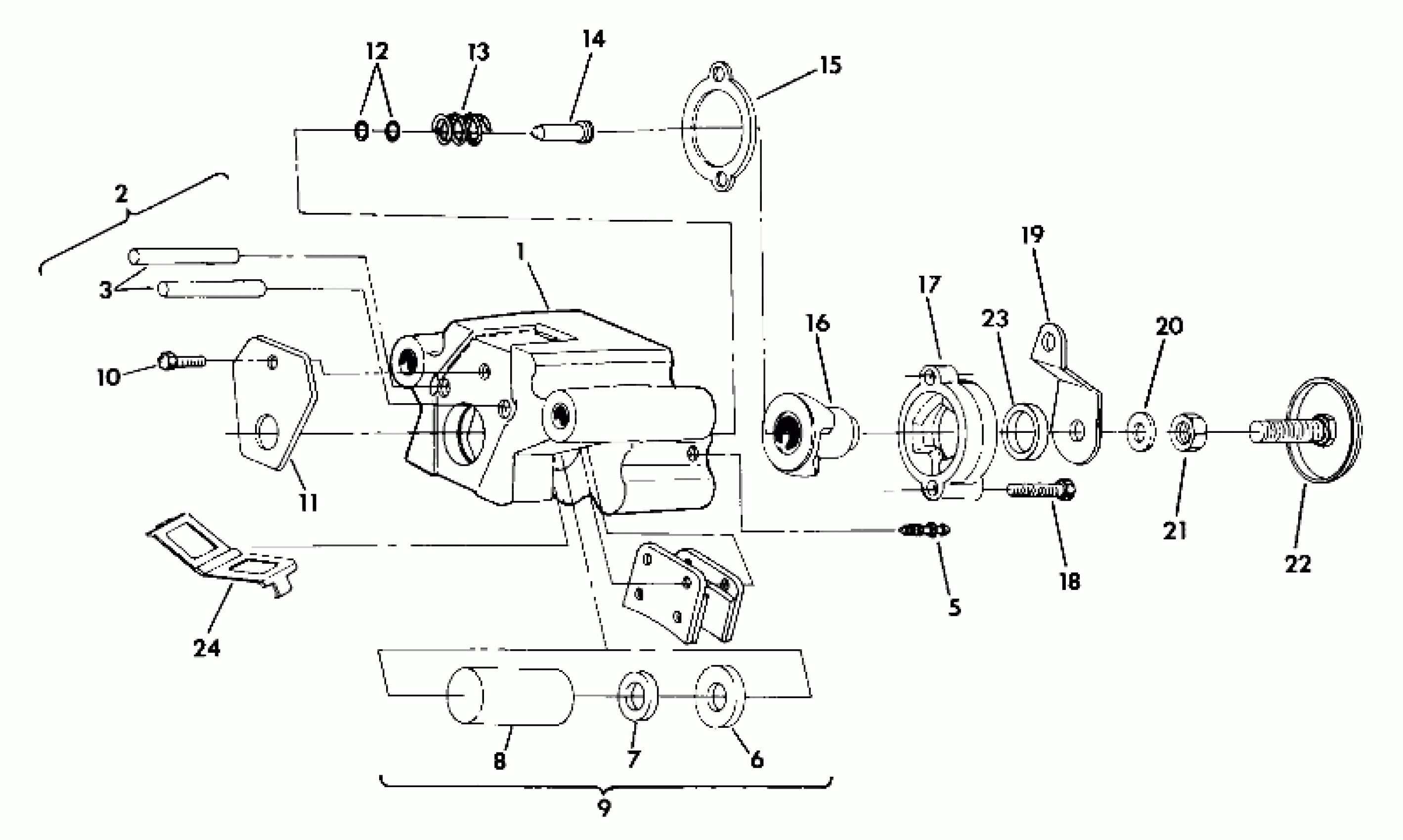

Polaris TRAIL BOSS 350L 2X4 - W907539 REAR BRAKE ASSEMBLY 350 2X4 (4918531853021A) Diagram

#

Description
Price

-

CALIPER ASM,R.BRAKE Substituted by 1910073 (Complete)

1910046

Unavailable

1

CALIPER,REAR BRAKE

5130714

Unavailable

2

KIT,PAD,R.BRAKE Substituted by 2200464 (Incl. 3,4)

1930644

$31.75

3

PIN, DOWEL(10)

7661820

$13.99

5

SCREW,BLEEDER

7080352

$3.19

6

Seal Ring,.120 Sq.

-------

Unavailable

8

Brake Piston, Rear

-------

Unavailable

8

Brake Piston, Rear

-------

Unavailable

9

KIT,BRAKE SEALS&PISTON (Incl. 6-8,12,14,15)

1930666

Unavailable

10

SCREW, SEMS(10)

7512020

$2.39

11

PLATE, PIN

5211143

Unavailable

12

O-Ring,.070

-------

Unavailable

13

SPRING,BRAKE,COMP.

7041219

$24.99

14

Brake Pin, Actuator

-------

Unavailable

15

GASKET, BRAKE

5830009

$9.99

16

RAMP,MOVE.BRAKE Substituted by 2200391

5630366

Unavailable

17

RAMP,STATION.BRAKE Substituted by 2200391

5630346

Unavailable

18

BOLT, SOC. HD.(10)

7512292

Unavailable

19

ARM,BRAKE CALIPER Substituted by 2200391

5222454

Unavailable

20

WASHER(10)

7558301

$1.49

21

NUT(10)

7542129

$4.79

22

BRAKE ADJUSTER Substituted by 1930691

1910050

Unavailable

23

SEAL, BRAKE

3610026

$7.99

24

SPRING,ANTI-RATTLE

5222232

Unavailable
