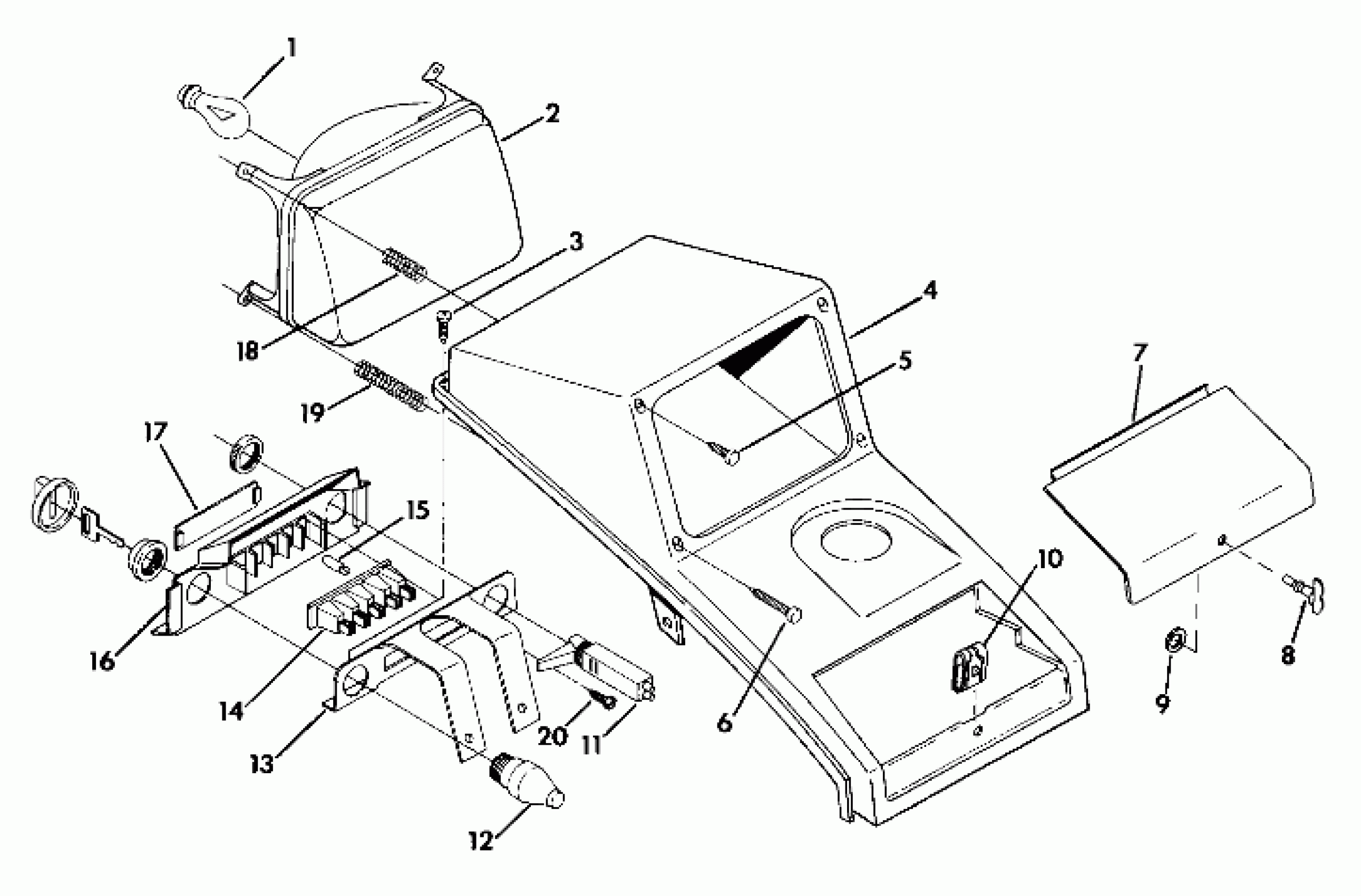

Polaris TRAIL BOSS 350L 2X4 - W907539 HEADLIGHT ASSEMBLY 350 2X4 (4918531853008A) Diagram

#

Description
Price

1

BULB, H/L

4030028

$29.99

2

HEADLIGHT ASM.

4032038

Unavailable

3

SCREW(10)

7512017

$4.79

4

COVER,OIL TANK&H/L

5431202-143

Unavailable

5

SCREW, ADJ.(10)

4032003

Unavailable

6

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

7

DOOR, ACCESS Substituted by 5431201-132

5431201

Unavailable

8

FASTENER, 1/4 TURN(10)

7670064

$6.23

9

RING,SPLIT RETAINER(10)

7670065

$1.99

10

RECEPTACLE,CLIP-ON(10)

7670066

$3.83

11

KIT-CHOKE CONTROL

2200188

$24.27

11

CABLE, CHOKE

7080371

$97.13

12

SWITCH,IGN.(MODIFIED) Substituted by 4110140

4110086

$137.60

13

BRKT, IGN. PANEL

5220965-067

Unavailable

14

STRIP, SOCKET

4032037

$27.19

15

BULB

4030042

Unavailable

16

PANEL, IGNITION

5430995

Unavailable

17

LENS ASM,PILOT LIGHT

2652049

Unavailable

18

SPRING-ADJ

4032002

Unavailable

19

SPRING,ADJ.

4032041

Unavailable

20

SCREW, SEM(10)

7511862

$6.99
