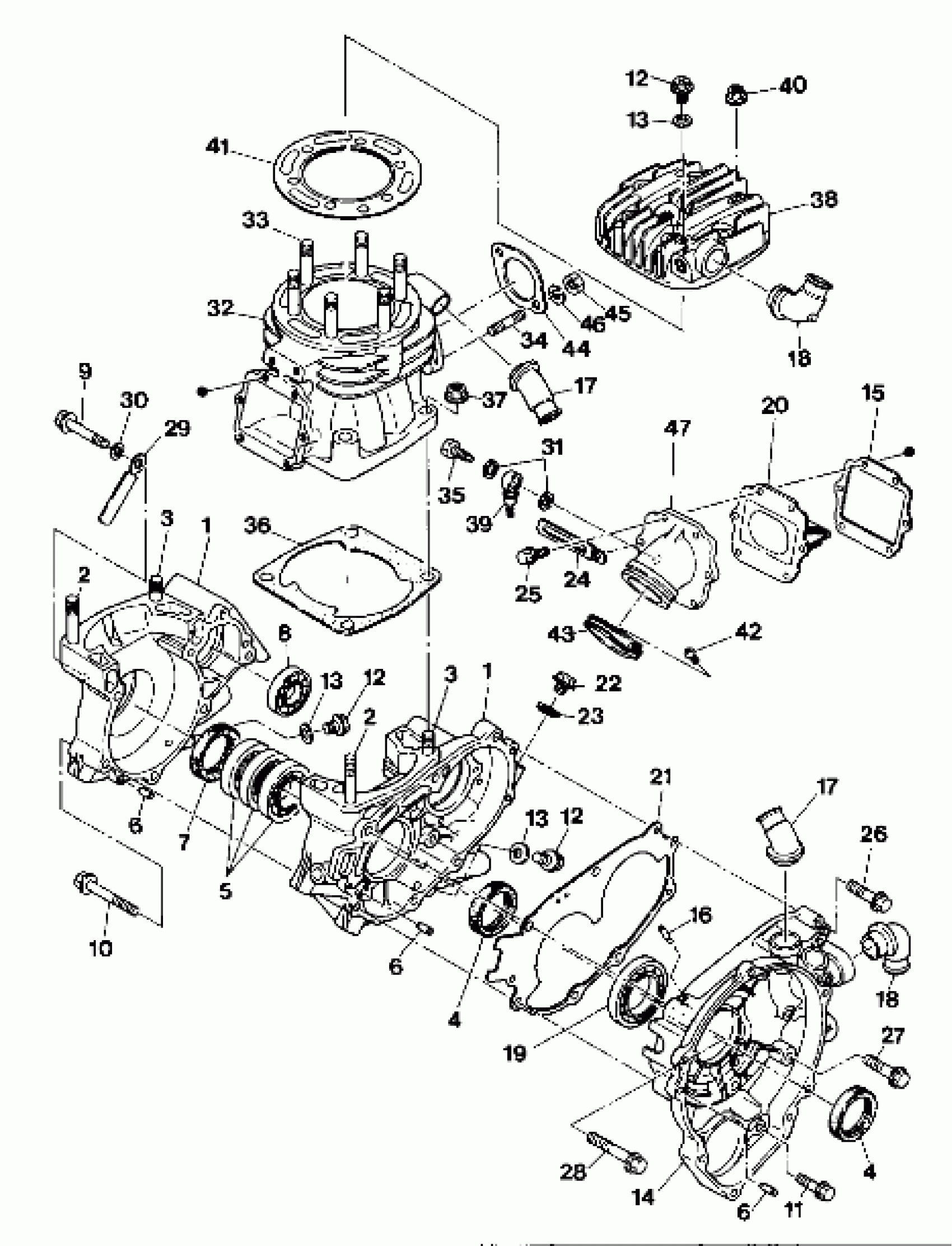

Polaris TRAIL BOSS 350L 2X4 - W907539 Crankcase and Cylinder Assembly (4918531853035A) Diagram

#

Description
Price

1

CRANKCASE ASM.

3084117

Unavailable

1

CRANKCASE ASM.

3084117

Unavailable

2

Stud

3084118

Unavailable

2

Stud

3084118

Unavailable

3

Stud

3084119

$9.59

3

Stud

3084119

$9.59

4

Seal, Oil

3084120

Unavailable

4

Seal, Oil

3084120

Unavailable

5

Bearing, Ball

3084121

$39.99

6

PIN, DOWEL Substituted by 3086838

3080103

$7.14

6

PIN, DOWEL Substituted by 3086838

3080103

$7.14

6

PIN, DOWEL Substituted by 3086838

3080103

$7.14

7

SEAL,OIL

3084122

Unavailable

8

Bearing, Ball

3084123

Unavailable

9

Bolt, Flange

3084124

$6.23

10

BOLT, FLANGE Substituted by 3086742

3084125

Unavailable

11

Bolt, Flange

3084126

Unavailable

12

PLUG, DRAIN

3083767

Unavailable

12

PLUG, DRAIN

3083767

Unavailable

12

PLUG, DRAIN

3083767

Unavailable

13

Cap

3083758

$5.75

13

Cap

3083758

$5.75

13

Cap

3083758

$5.75

14

CRANKCASE #3

3084127

Unavailable

15

GASKET, REED VALVE,(10) (Reed Valve)

3084148

Unavailable

16

PIPE, BREATHER (Breather)

3084128

Unavailable

17

PIPE, 1 ELBOW Substituted by 3086746 (Elbow)

3084129

Unavailable

17

PIPE, 1 ELBOW Substituted by 3086746 (Elbow)

3084129

Unavailable

18

PIPE, 2 ELBOW Substituted by 3086747 (Elbow)

3084130

Unavailable

18

PIPE, 2 ELBOW Substituted by 3086747 (Elbow)

3084130

Unavailable

19

Bearing, Ball

3084131

Unavailable

20

VALVE ASM., REED

3084147

Unavailable

21

GASKET, CASE 3 (Case 3)

3084133

Unavailable

22

PLUG Substituted by 3086749

3083453

Unavailable

23

GASKET

3082956

$4.84

24

CLAMP Substituted by 3083590

3084146

Unavailable

25

BOLT, FLANGE Substituted by 3086759 (Adapter)

3084145

Unavailable

26

BOLT, FLANGE Substituted by 3084177

3084132

Unavailable

27

Bolt, Flange

3084134

Unavailable

28

BOLT, FLANGE

3084135

Unavailable

29

CLAMP Substituted by 3083384

3084136

Unavailable

30

WASHER(10)

3080142

$3.99

31

WASHER(10) Substituted by 3083138

3040140

$774.39

32

CYLINDER

3084137

Unavailable

33

Stud

3084138

Unavailable

34

STUD Substituted by 3080016

3084139

$5.71

35

BOLT-BANJO

3083137

Unavailable

36

GASKET, CYLINDER (Cylinder)

3084140

Unavailable

37

NUT-FLANGE(10)

3082911

$1.99

38

HEAD, CYLINDER

3084141

$440.86

39

VALVE, CHECK

3083894

Unavailable

40

NUT-FLANGE(10)

3082910

$2.39

41

GASKET, HEAD Substituted by 3084517 (Head)

3084142

Unavailable

42

SCREW,(10)

3081497

$2.39

43

BAND ASM. (Adapter)

3084144

Unavailable

44

GASKET, EXHAUST (Exhaust)

3083770

Unavailable

45

NUT(10)

3080285

Unavailable

46

WASHER Substituted by 3080530

3080097

Unavailable

47

ADAPTER

3084143

Unavailable
