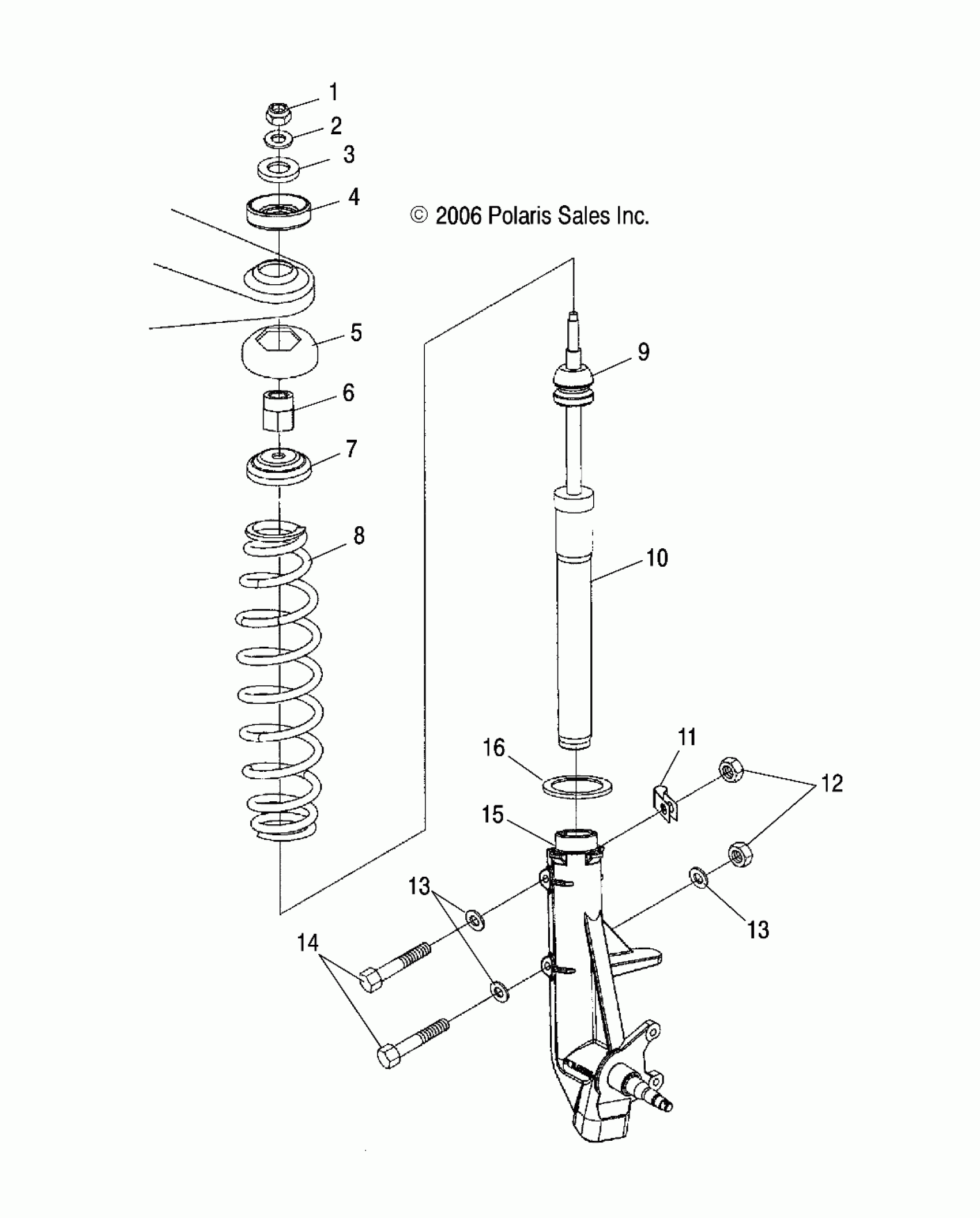

Polaris TRAIL BOSS 330 - A08CA32AA SUSPENSION, STRUT, FRONT - A08CA32AA (49ATVSTRUTBOSS) Diagram

#

Description
Price

1

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

2

WASHER

7555749

$1.49

3

SPACER-RUBBER

5810291

$3.99

4

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

5

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

6

SPACER

5132062

$19.99

7

RETAINER-SPRING,STRUT

5243364

$19.99

8

Spring, Compression, Black

7041850-067

$69.99

9

BUMPER-MCU,17.8MM ID

5412665

$6.39

10

Strut, Front

7041761

$151.99

11

CLAMP-CABLE

7080367

$2.39

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

13

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

15

Support, Strut/Spindle, RH

5135136

$231.19

15

Support, Strut/Spindle, LH

5135135

Unavailable

16

WASHER-2.06X2.62X.105-Y

5211115

$3.99
