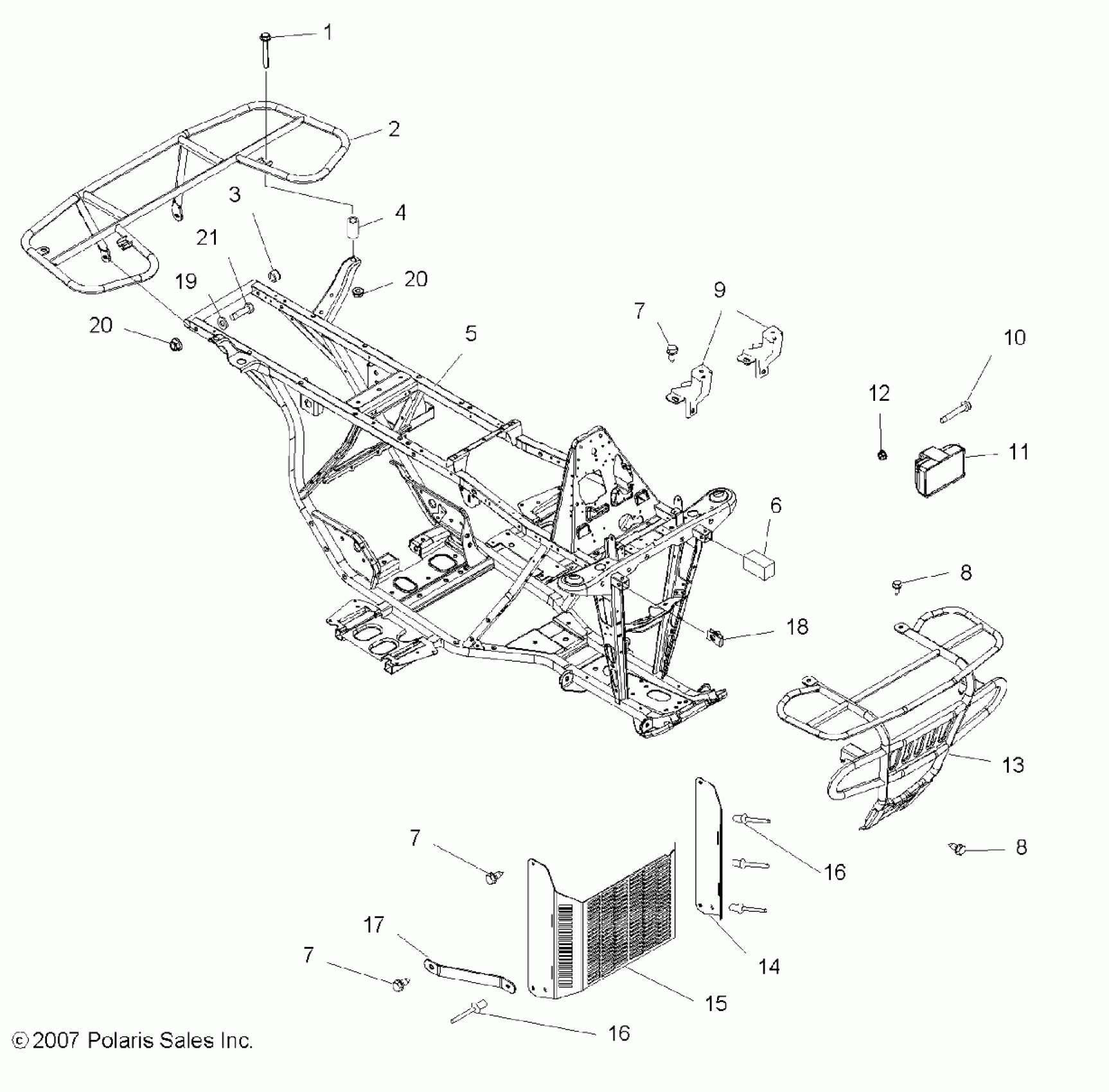

Polaris TRAIL BOSS 330 - A08CA32AA CHASSIS, FRAME, RACKS and BUMPER - A08CA32AA (49ATVBUMPER08BOSS) Diagram

#

Description
Price

1

Bolt, Flange

7518340

$7.19

2

Rack, Rear, Black

1014039-067

$215.08

3

Plug, End Cap

5432831

$5.59

4

Spacer

5334092

$10.99

5

Frame, Main, Black

1014658-067

$963.19

6

PLUG, FRAME

5810467

Unavailable

7

SCREW

7512232

$1.49

7

SCREW

7512232

$1.49

7

SCREW

7512232

$1.49

8

SCREW

7515399

$1.49

8

SCREW

7515399

$1.49

9

Support Rack, Front, Black, LH

1013744-067

$119.99

9

Support Rack, Front, Black, RH

1013746-067

$94.99

10

SCREW

7515189

Unavailable

11

Asm., Headlight

2410285

Unavailable

12

Nut, Nylok

7542122

$1.49

13

Bumper, Front, Black

1014483-067

Unavailable

14

Shield, Radiator Side, Black, LH

5248297-067

$22.06

15

Shield, Radiator Side, Black, RH

5248298-067

Unavailable

16

RIVET

7621472

$1.49

16

RIVET

7621472

$1.49

17

Bracket, Grill Mount

5247919

$3.49

18

Nut

7670096

$1.59

19

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

20

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

20

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

21

Bolt

7512329

$3.99
