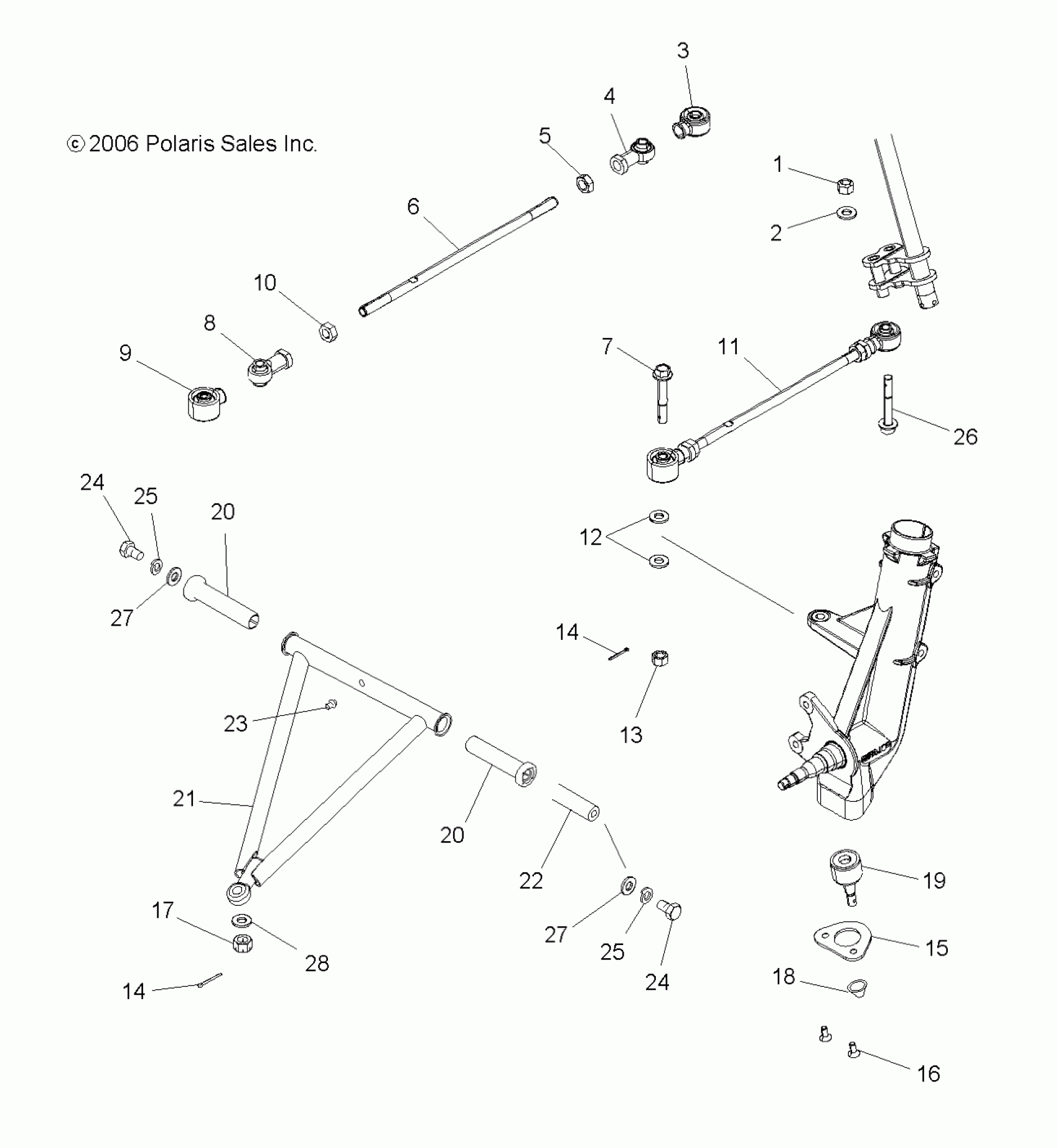

Polaris TRAIL BOSS 330 - A07CA32AA SUSPENSION, FRONT - A07CA32AA (49ATVAARMBOSS) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

2

Washer, Wrought

7558403

$4.79

3

Boot, Seal, Rod End

5412928

$11.32

4

ROD END, RH

7061139

$55.99

5

Nut, Jam

7542711

$2.39

6

Tie Rod

5134242

$39.99

7

Bolt

7517909

$5.59

8

Rod End, LH

7061138

$51.99

9

BOOT, SEAL

5412929

$11.19

10

Nut, Jam, LH

7547028

$2.39

11

Asm., Tie Rod [Incl. 3-6, 8-10]

1822851

$103.99

12

Washer

7556099

$1.59

13

Nut, Lock

7547177

$2.39

14

Pin, Cotter

7661203

$1.49

14

Pin, Cotter

7661203

$1.49

15

BRACKET-BALL JOINT

5211121

$31.99

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

18

BOOT, BALL JOINT, GREASELESS

5412658

$4.79

19

Joint, Ball, Greaseless [If built before 10/27/06]

7061130

Unavailable

19

Joint, Ball, Greaseless [If built after 10/27/06]

7061153

Unavailable

20

Bushing, A-Arm, Long

5434551

$5.01

20

Bushing, A-Arm, Long

5434551

$5.01

21

Kit, A-Frame, LH [Incl. 14,20,22-25,27]

2202278

Unavailable

21

Kit, A-Frame, RH [Incl. 14,20,22-25,27]

2202279

Unavailable

22

Shaft, A-Arm

5133806

$30.79

23

Fitting, Lubrication

7080433

$1.49

24

Screw

7512492

$1.49

24

Screw

7512492

$1.49

25

WSHR-.813X.406X.105-Y

7555832

$2.39

25

WSHR-.813X.406X.105-Y

7555832

$2.39

26

Bolt

7518033

$34.99

27

Washer, Lock

7552603

$1.49

27

Washer, Lock

7552603

$1.49

28

Washer [If built before 10/27/06][Use with 7061130]

7555857

Unavailable
