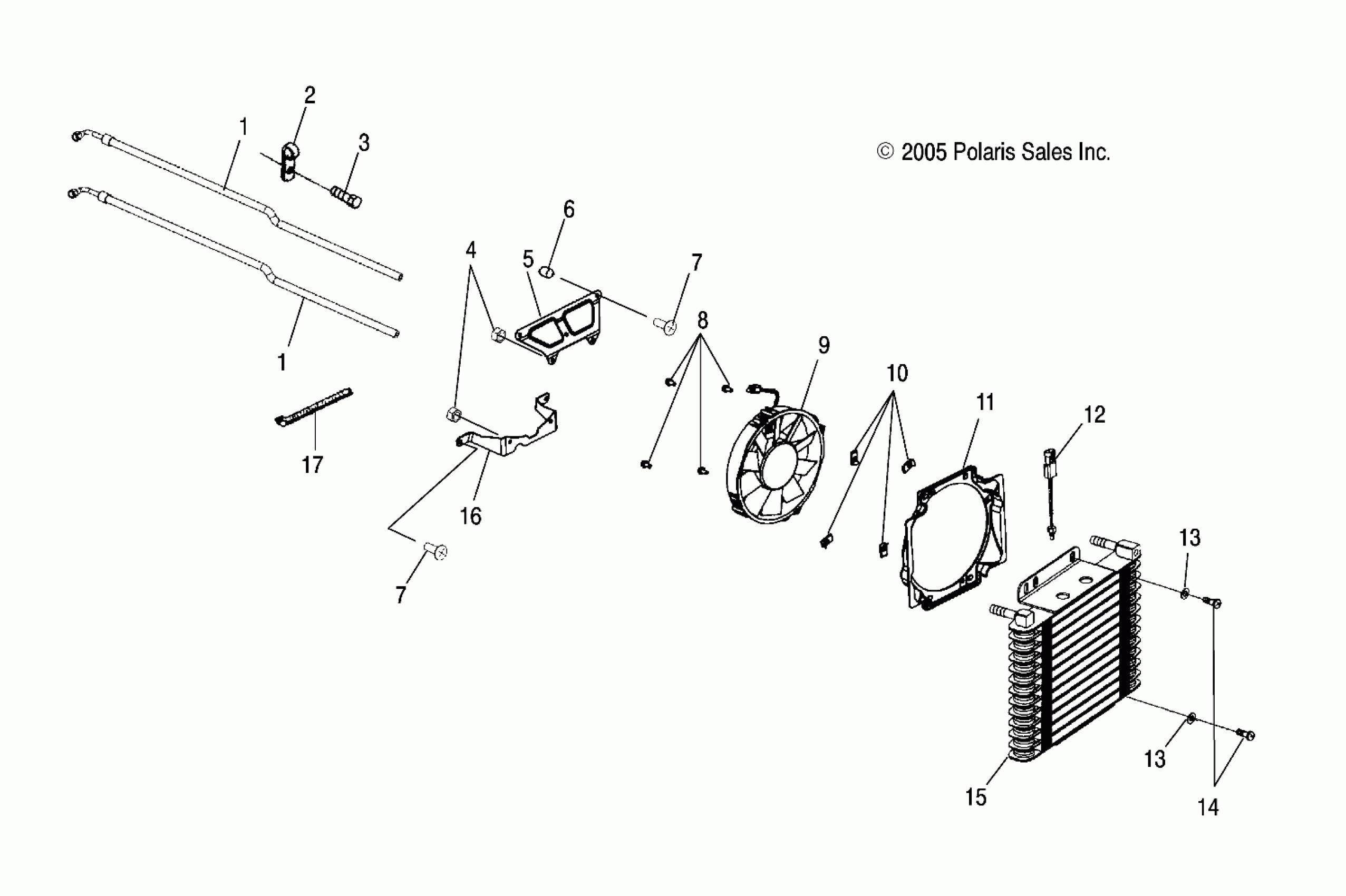

Polaris TRAIL BOSS 330 - A07CA32AA OIL COOLING - A07CA32AA (4999202939920293A08) Diagram

#

Description
Price

1

Hose

5412355

$123.54

1

Hose

5412355

$123.54

2

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

3

Screw

7512084

$1.49

4

Nut, Nylok

7542122

$1.49

5

Bracket, Oil Cooler, Top, Black

5245416-067

$56.99

6

Nutsert, Hex

7547069

$3.99

7

Bolt

7512232

$1.49

7

Bolt

7512232

$1.49

8

Screw

7517659

$3.99

9

Asm., Motor, Fan

2410534

$180.79

10

U-Clip

7670111

Unavailable

11

Shroud, Fan

5433353

$70.39

12

Thermister

4010934

Unavailable

13

Washer, Flat

7558301

$1.49

13

Washer, Flat

7558301

$1.49

14

Bolt

7512163

$3.99

15

Asm., Oil Cooler w/Fittings [Incl. 8-12]

1240204

Unavailable

15

Cooler, Oil

1240191

Unavailable

16

Bracket, Lower

5248139

$15.56

17

Cable Tie

7080999

$9.59
