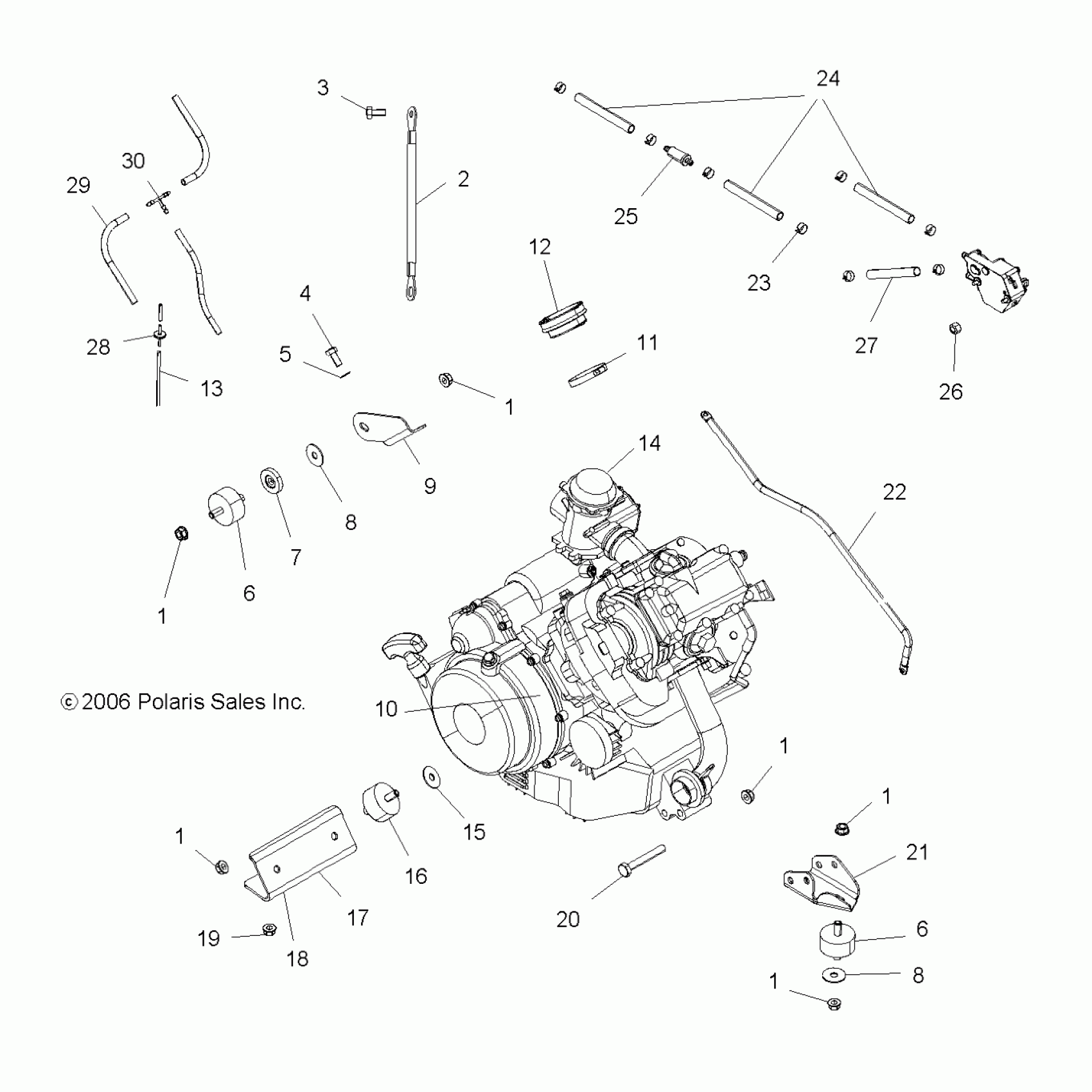

Polaris TRAIL BOSS 330 - A07CA32AA ENGINE, MOUNTING - A07CA32AA (49ATVENGINEBOSS) Diagram

#

Description
Price

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

2

Cable, Ground, Engine

4010132

Unavailable

3

SCREW

7517386

$1.49

4

BOLT

7512315

$4.79

5

WASHER, SPRING LOCK

7552901

$1.49

6

Mount, Rubber

3021181

Unavailable

6

Mount, Rubber

3021181

Unavailable

7

Insulator, Motor Mount

5430802

$27.99

8

WASHER

7555823

$3.99

8

WASHER

7555823

$3.99

9

Bracket, Engine Mount, Top

5247344

Unavailable

10

Decal, Drain Recoil

7172562

Unavailable

11

Clamp

7080511

$4.79

12

Boot, Clutch Intake

5411721

Unavailable

13

LINE, FUEL

8360009-600

Unavailable

14

Engine, ES320PFE105

1203408

Unavailable

15

WASHER, FLAT

7555815

$3.99

16

Mount, Rubber, Front

3110046

Unavailable

17

Mount, Engine, Rear, Black

1013413-067

Unavailable

18

Screw

7517811

$0.57

19

Nut, Flange Lock

7547089

$4.79

20

SCREW

7515417

$4.79

21

Mount, Lower Front

5247342

Unavailable

22

Cable, Battery/Engine

4010095

Unavailable

23

HOSE CLAMP, RED

7080003

$1.49

24

HOSE, FUEL

8450117-250

Unavailable

25

FILTER, SMALL, IN-LINE

2530009

$5.65

26

NUT-M5X.8,HX NYL-Y

7546601

$1.49

27

Line, Fuel

8450040-600

Unavailable

28

VALVE, CHECK

7051011

Unavailable

29

Line, Fuel

8450003-1525

Unavailable

30

T-Fitting

7052075

$9.59
