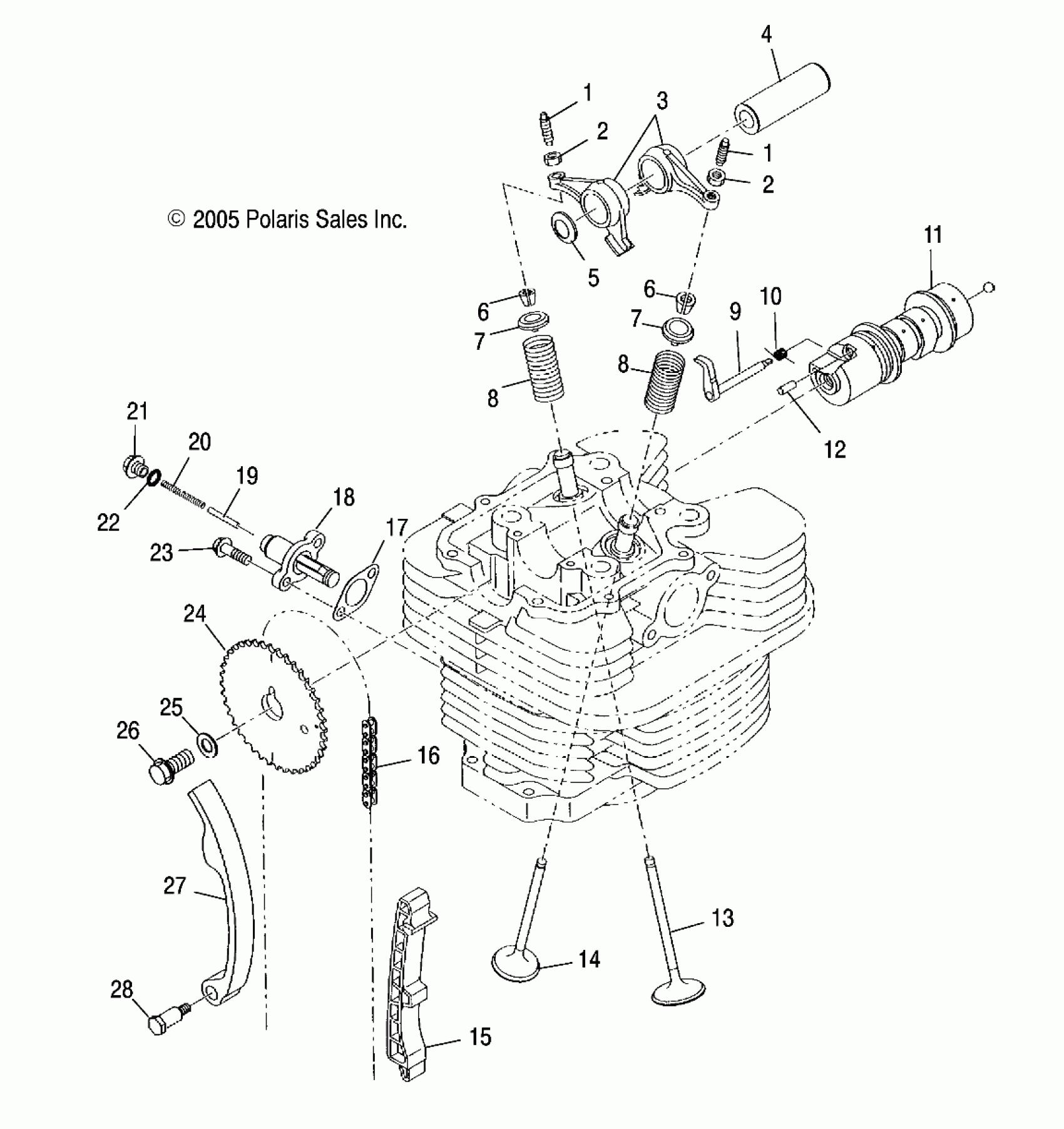

Polaris TRAIL BOSS 330 - A07CA32AA ENGINE, INTAKE and EXHAUST - A07CA32AA (4999202939920293C10) Diagram

#

Description
Price

1

Screw, Adjusting

3084911

$9.52

1

Screw, Adjusting

3084911

$9.52

2

Nut

3084912

$3.97

2

Nut

3084912

$3.97

3

Asm., Rocker Arm [Incl. 1-3]

3084910

$125.46

4

Shaft, Rocker

3087053

$38.89

5

Washer, Wave

3085836

$5.56

6

COLLET, VALVE

3084908

$4.84

6

COLLET, VALVE

3084908

$4.84

7

Retainer, Spring, Valve

3087203

Unavailable

7

Retainer, Spring, Valve

3087203

Unavailable

8

Spring, Valve

3087248

Unavailable

8

Spring, Valve

3087248

Unavailable

9

Asm., Lever, Release

3086439

$86.11

10

Spring, Return

3086804

Unavailable

11

Asm., Camshaft [Incl. 9-12]

3087247

$489.99

12

PIN, DOWEL

3084899

$7.14

13

Valve, Intake

3085778

Unavailable

14

Valve, Exhaust

3086441

$56.65

15

Guide, Chain

3086445

$40.46

16

Chain, Timing

3086444

Unavailable

17

GASKET, TENSIONER

3086448

$6.46

18

Asm., Tensioner [Incl. 18-22]

3086493

Unavailable

19

PIN

3087132

$10.32

20

SPRING, TENSIONER

3087131

Unavailable

21

PLUG

3087129

Unavailable

22

GASKET, PLUG

3087130

$11.32

23

BOLT, FLANGE

3083361

Unavailable

24

Sprocket 2

3086443

Unavailable

25

Washer

3087249

Unavailable

26

BOLT, FLANGE

3086449

$7.14

27

Asm., Lever

3086446

$80.94

28

Asm., Bolt, Pivot, Lever

3084924

Unavailable
