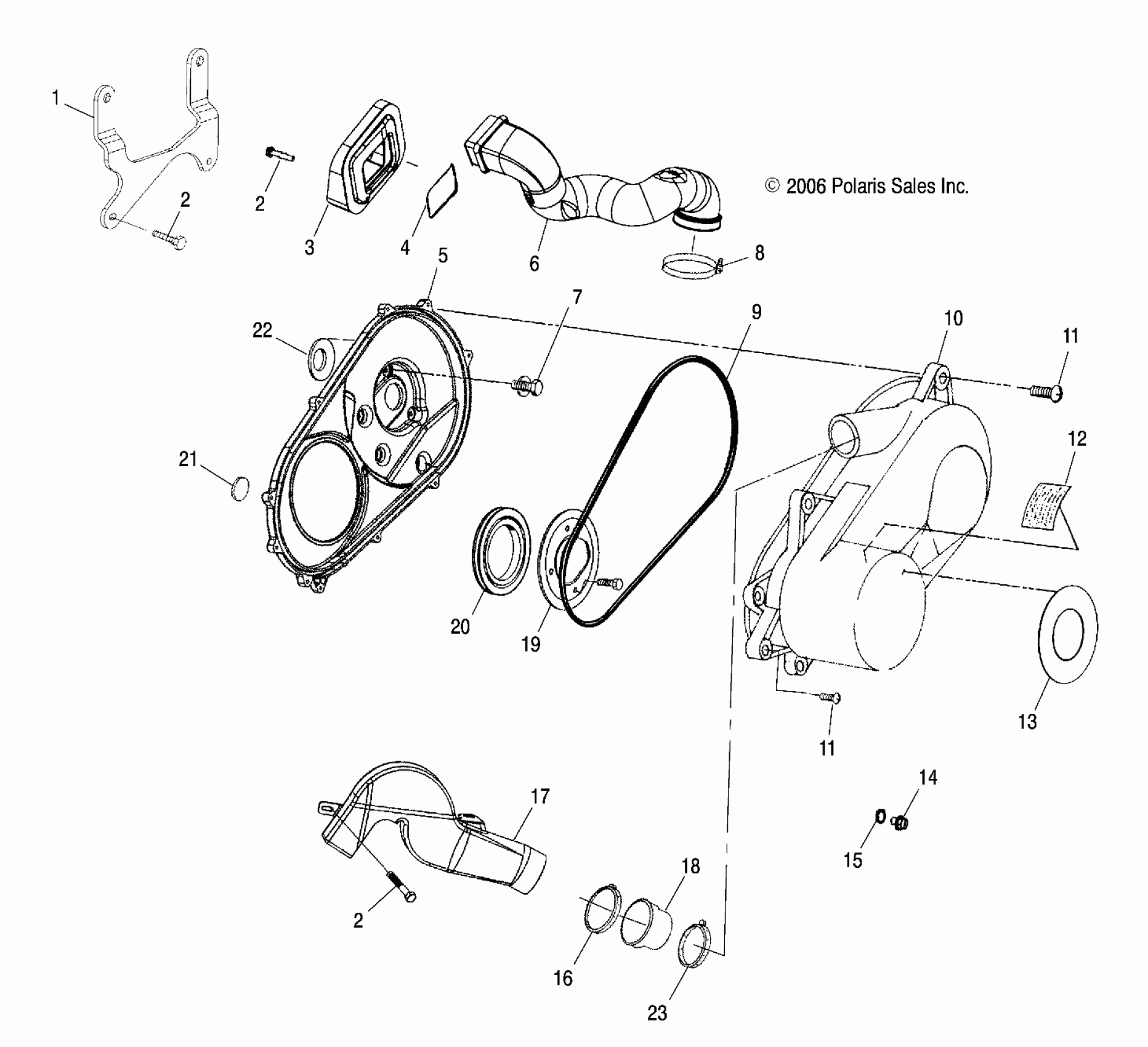

Polaris TRAIL BOSS 330 - A07CA32AA CLUTCH COVER - A07CA32AA (49ATVCLUTCHCVRBOSS) Diagram

#

Description
Price

1

Bracket, Clutch Cover, Black

5247524-067

Unavailable

2

SCREW

7517386

$1.49

2

SCREW

7517386

$1.49

2

SCREW

7517386

$1.49

3

Asm., Foam, Clutch Air Inlet

2632513

$54.99

4

Plate, Backing

5434491

Unavailable

5

Kit, Clutch Cover, Inner

2202438

Unavailable

6

Duct, Inlet [If built after 7/01/06]

5436951

Unavailable

6

Duct, Inlet [If built before 7/01/06]

5434401

Unavailable

7

Asm., Bolt/Washer

7510000

$3.99

8

CLAMP, NARROW BAND

7080909

$7.99

9

Seal, Clutch Cover, Outer [If built after 10/17/06]

5521738

$42.46

9

Seal, Clutch Cover, Outer [If built before 10/17/06]

5521578

Unavailable

10

Asm., Clutch Cover, Outer

2633262

$169.87

11

SCREW

7512094

$1.59

11

SCREW

7512094

$1.59

12

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

13

DECAL, "AUTOMATIC TRANSMISSION"

7172746

Unavailable

14

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

15

O RING-.364X.504X.07

5410542

Unavailable

16

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

17

Duct, Air Outlet

5434213

Unavailable

18

BOOT, DUCT

5412636

$23.99

19

Bracket, Clutch Seal

5242046

$35.99

20

Seal, Cover Case

5412637

$43.99

21

Stopper, Inner Clutch Cover

5411795

Unavailable

22

Seal, Cover Case

5410489

$13.59

23

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19
