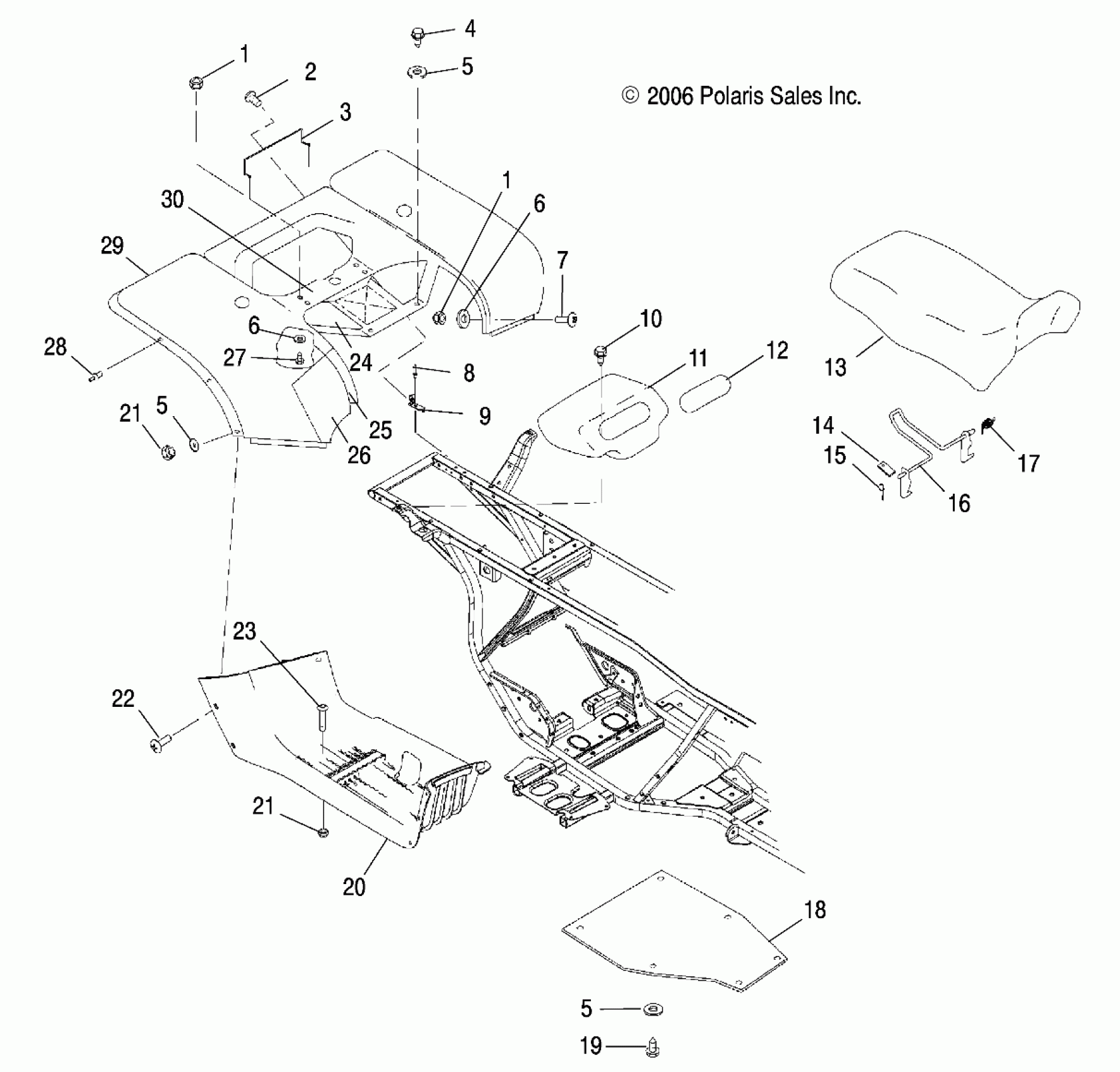

Polaris TRAIL BOSS 330 - A07CA32AA CAB, REAR and SEAT - A07CA32AA (49ATVCABRRBOSS) Diagram

#

Description
Price

1

Nut, Nylok

7541925

$0.79

1

Nut, Nylok

7541925

$0.79

2

SCREW

7517685

$1.59

3

Retainer, Seat Latch

5246091

$10.63

4

SCREW

7512242

$2.38

5

Washer, Flat

7555859

$1.19

5

Washer, Flat

7555859

$1.19

5

Washer, Flat

7555859

$1.19

6

WASHER

7556034

$2.38

6

WASHER

7556034

$2.38

7

Screw

7512085

Unavailable

8

RIVET-3/16-.090-.290

7661637

$1.19

9

Mount, Cab, Rear

5245898

$2.78

10

Screw

7517375

$1.19

11

Box, Tool [If built after 7/01/06]

5436946

$35.24

11

Box, Tool [If built before 7/01/06]

5434040

$32.70

12

Cover, Tool Box

5431787

Unavailable

13

Covering, Seat, Black

2682958-070

$149.75

13

Asm., Seat, Black [Incl. 14-17]

2683197-070

$445.22

14

BRACKET, LEVER RETAINER

5211033

$34.99

15

RIVET

7621403

$1.19

16

LATCH, SEAT

1040387

$48.56

17

SPRING, LATCH

7041370

$9.52

18

Guard, Rock

5432763

$109.99

19

Screw

7515179

$2.38

20

Footwell, Black, LH

5432221-070

$230.70

20

Footwell, Black, RH

5434417-070

$230.70

21

Nut, Nylok

7542122

$1.19

21

Nut, Nylok

7542122

$1.19

22

Screw

7517264

$3.97

23

Screw

7517376

$0.79

24

Foil

5811087

Unavailable

25

Foil, Front

5811106

Unavailable

26

Foil

5811111

Unavailable

27

Screw

7511930

$2.38

28

Rivet

7081040

$1.19

29

Cab, Rear, Indy Red

5432117-293

Unavailable

30

Foil, Rear

5811107

Unavailable
