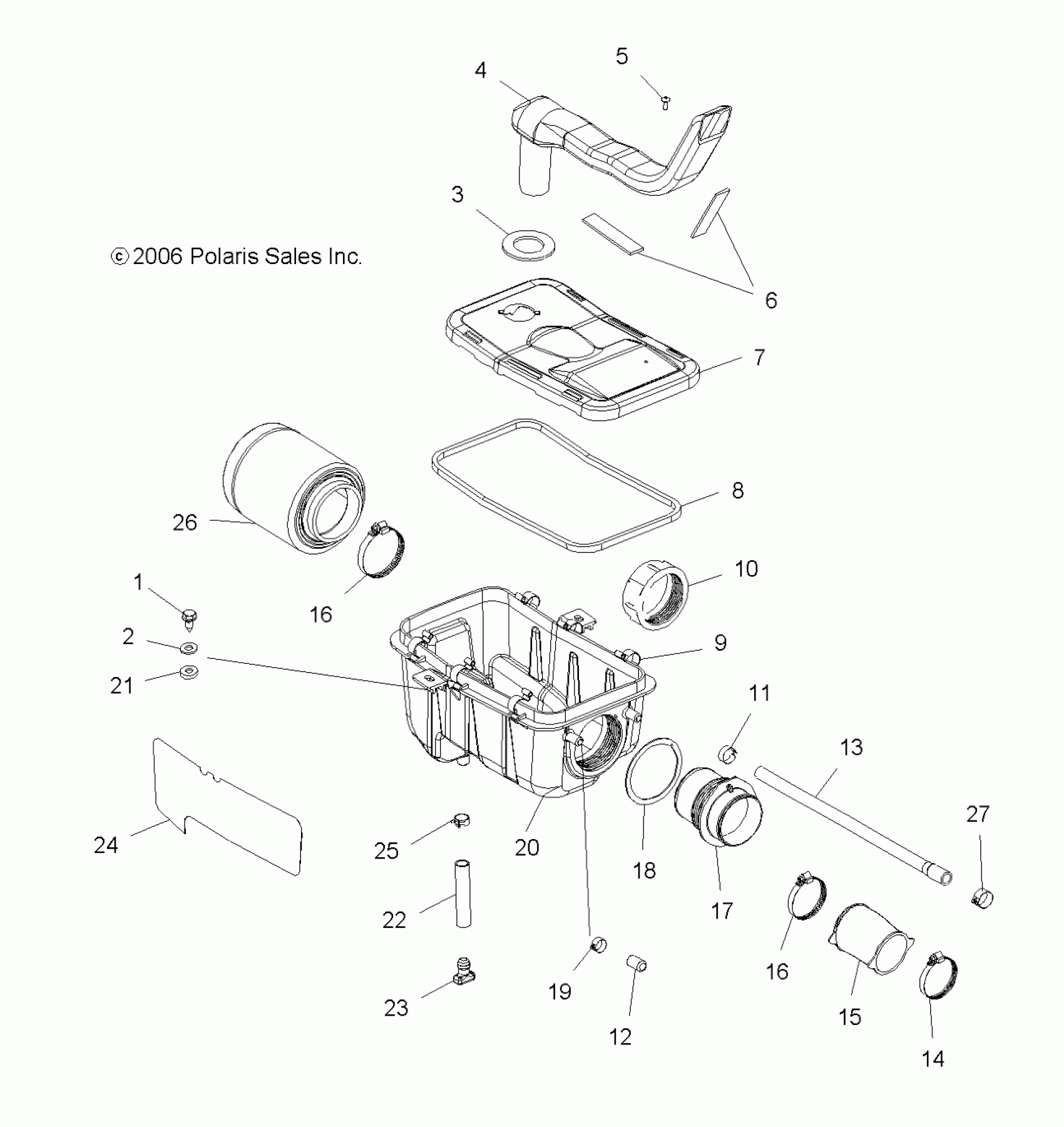

Polaris TRAIL BOSS 330 - A07CA32AA AIR BOX - A07CA32AA (49ATVAIRBOXBOSS) Diagram

#

Description
Price

1

Screw

7518306

$3.99

2

Washer, Flat

7558301

$1.49

3

Seal

5812023

$6.63

4

Duct, Inlet [If built after 7/01/06]

5436947

$116.17

4

Duct, Inlet [If built before 7/01/06]

5433767

$116.17

5

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

6

Pad

5810317

Unavailable

7

Cover, Air Box

5433769

$89.99

8

Seal, Cover [If built after 4/02/07]

5812829

$27.02

8

Seal, Cover [If built before 4/02/07]

5811482

Unavailable

9

CLIP-AIR BOX

5242044

$9.59

10

Collar, Carburetor Inlet

5432601

$12.79

11

Clamp, Hose

7080699

$1.59

12

Cap, End

5433396

$4.79

13

Hose, Breather

5411866

$11.59

14

Clamp, Narrow Band

7080511

$4.79

15

Boot, Carburetor

5411588

Unavailable

16

Clamp, Narrow Band

7080413

$3.19

16

Clamp, Narrow Band

7080413

$3.19

17

Duct, Carburetor Inlet

5433180

$32.37

18

Gasket, Carburetor Inlet

5830128

Unavailable

19

Clamp, Hose

7080534

$1.59

20

Box, Air Intake

5435759

Unavailable

21

Washer, Nylon

7555932

$2.39

22

Hose, Drain, Formed

5412111

$11.59

23

Plug, Trap [If built after 9/04/06]

5435299

$6.39

23

Plug, Trap [If built before 9/04/06]

5432377

Unavailable

24

Foil, RH

5812111

Unavailable

25

Clamp, Hose

7080650

$3.99

26

Asm., Air Filter

1253372

$27.99

27

Clamp, Hose

7080694

$6.53
