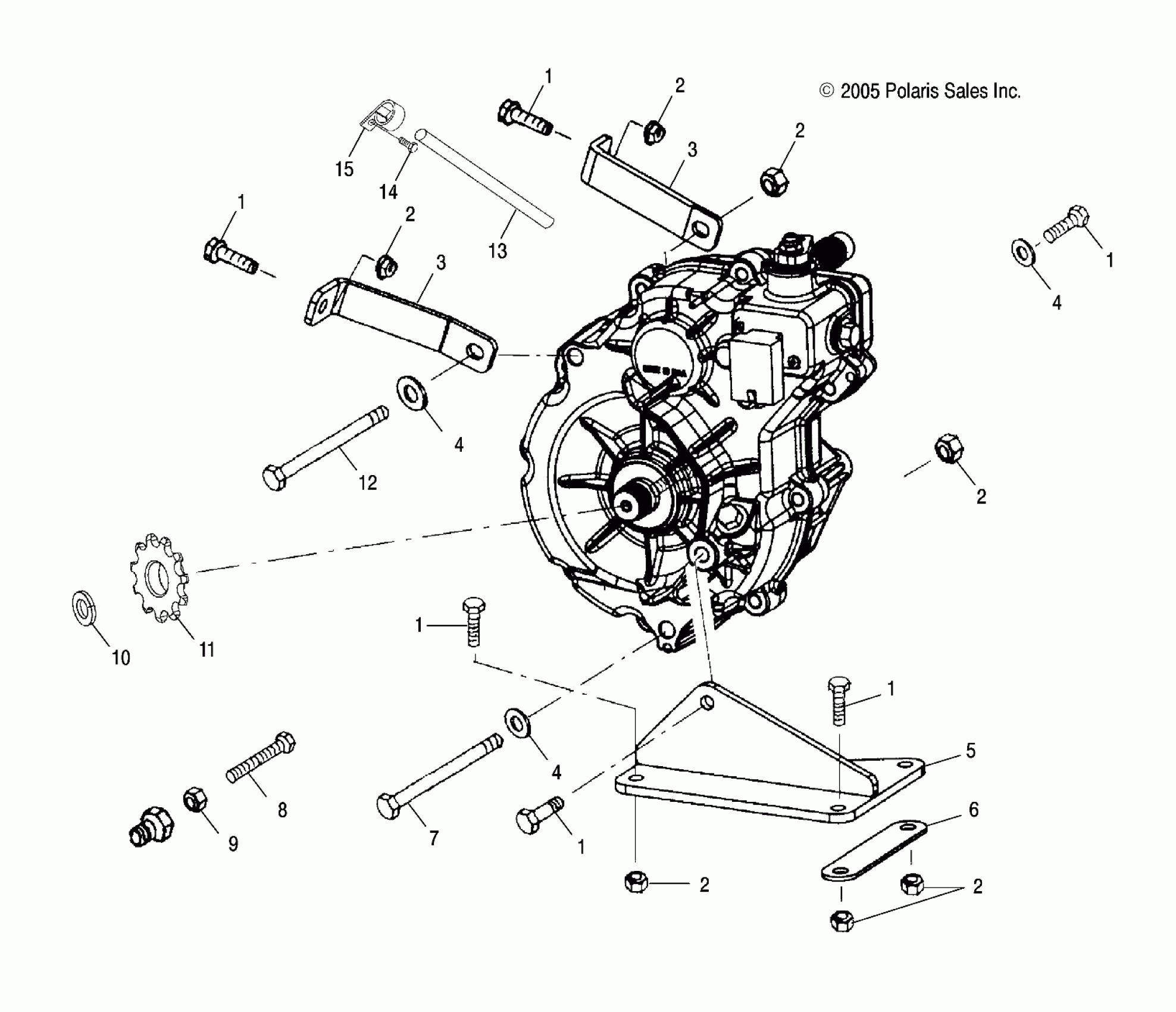

Polaris TRAIL BOSS 330 - A06CA32AA GEARCASE MOUNTING - A06CA32AA/AB (4999202939920293C01) Diagram

#

Description
Price

1

Bolt, Flange

7518364

$1.59

1

Bolt, Flange

7518364

$1.59

1

Bolt, Flange

7518364

$1.59

1

Bolt, Flange

7518364

$1.59

1

Bolt, Flange

7518364

$1.59

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

3

Bracket, Transmission Mount

5248185

Unavailable

3

Bracket, Transmission Mount

5248185

Unavailable

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

5

Mount, Transmission, Black

1012886-067

Unavailable

6

Spacer

5243296

Unavailable

7

SCREW

7517646

$7.19

8

Screw

7517631

$5.59

9

Nut

7542440

Unavailable

10

Ring, Snap

7710434

$3.99

11

Sprocket, 11T

3221043

$39.99

12

Screw

7517640

$10.39

13

Line, Fuel

8450003-1525

Unavailable

14

SCREW

7512024

$4.79

15

CLAMP, HOSE

7080693

$5.59
