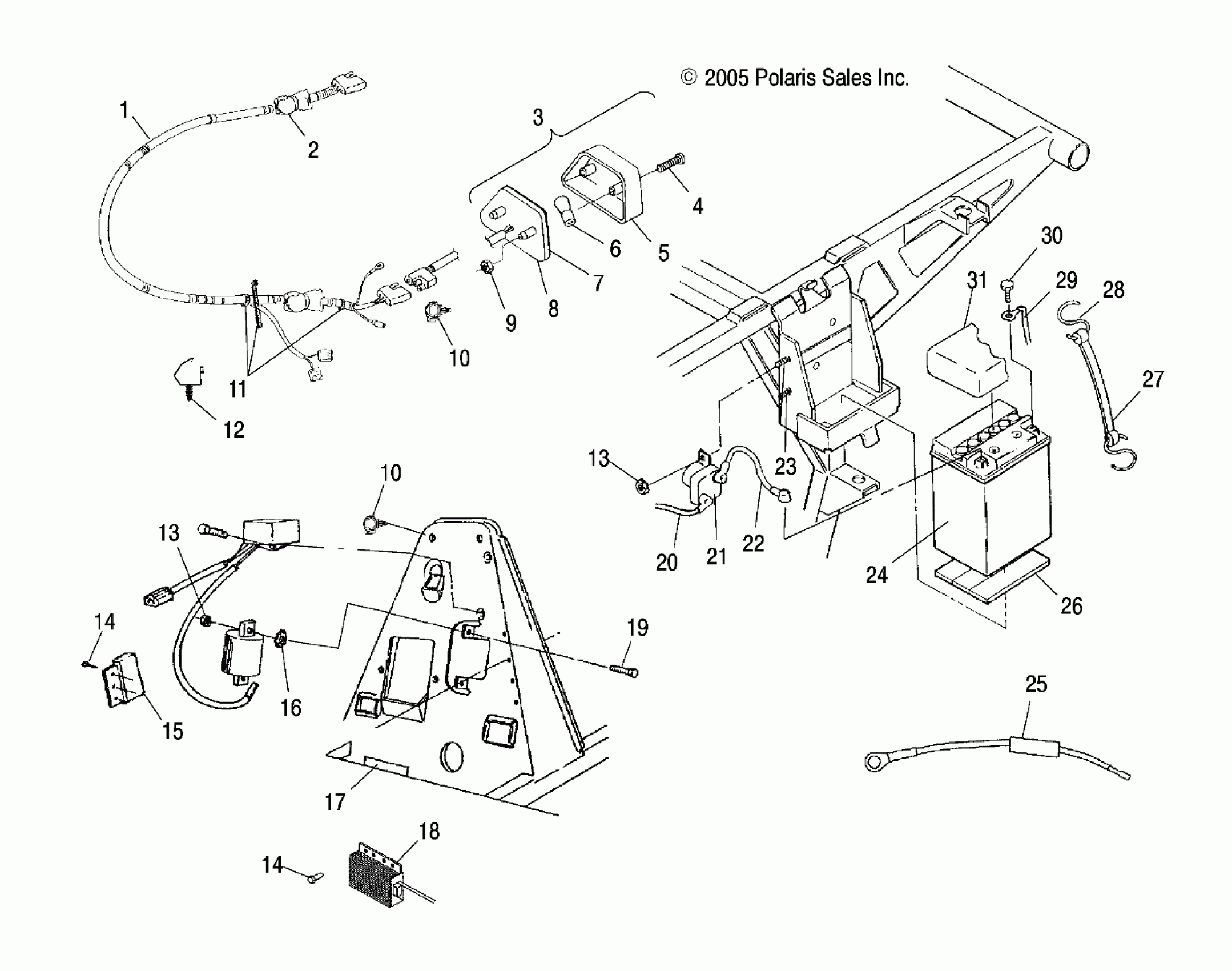

Polaris TRAIL BOSS 330 - A06CA32AA ELECTRICAL/TAILLIGHT - A06CA32AA/AB (4999202939920293B14) Diagram

#

Description
Price

1

Harness, Main [Incl. 25]

2410504

$594.99

2

Kit, Circuit Breaker, Fan

2201795

$68.79

3

Asm., Taillight

2410320

$63.99

4

Screw

4032029

$4.79

5

Lens, Taillight

4032046

$32.37

6

Bulb

4030043

$6.46

7

Gasket

4032045

$4.03

8

BACKING, TAILLIGHT/BRAKE LIGHT

-------

Unavailable

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

Clip, Rosebud

4020149

$6.39

10

Clip, Rosebud

4020149

$6.39

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CLIP, ROUTING

7670109

$2.39

13

Nut, Nylok

7518287

$3.19

13

Nut, Nylok

7518287

$3.19

14

SCREW

7512024

$4.79

14

SCREW

7512024

$4.79

15

Limiter, RPM

4010995

Unavailable

16

Washer

7571602

$4.79

17

Trim, Edge

5521131

Unavailable

18

Module, Controller

4011088

Unavailable

19

BOLT

7512007

$3.99

20

Cable, Solenoid/Starter

4010093

$47.99

21

Switch, Magnetic

4011251

$75.99

22

Cable, Battery/Solenoid

4010094

Unavailable

23

Screw

7512027

$1.49

24

BATTERY

4011138

$107.99

25

Kit, Fusible Link, .5 mm

2202147

$79.99

26

PAD-BATTERY

5810290

$7.27

27

STRAP, BATTERY HOLDDOWN

5412499

$4.62

28

Hook, Battery Strap

7010032

$1.59

29

Cable, Battery/Engine

4010095

Unavailable

30

KIT, BATTERY BOLT

2202848

$4.39

31

Cover, Battery

5431769

$14.39
