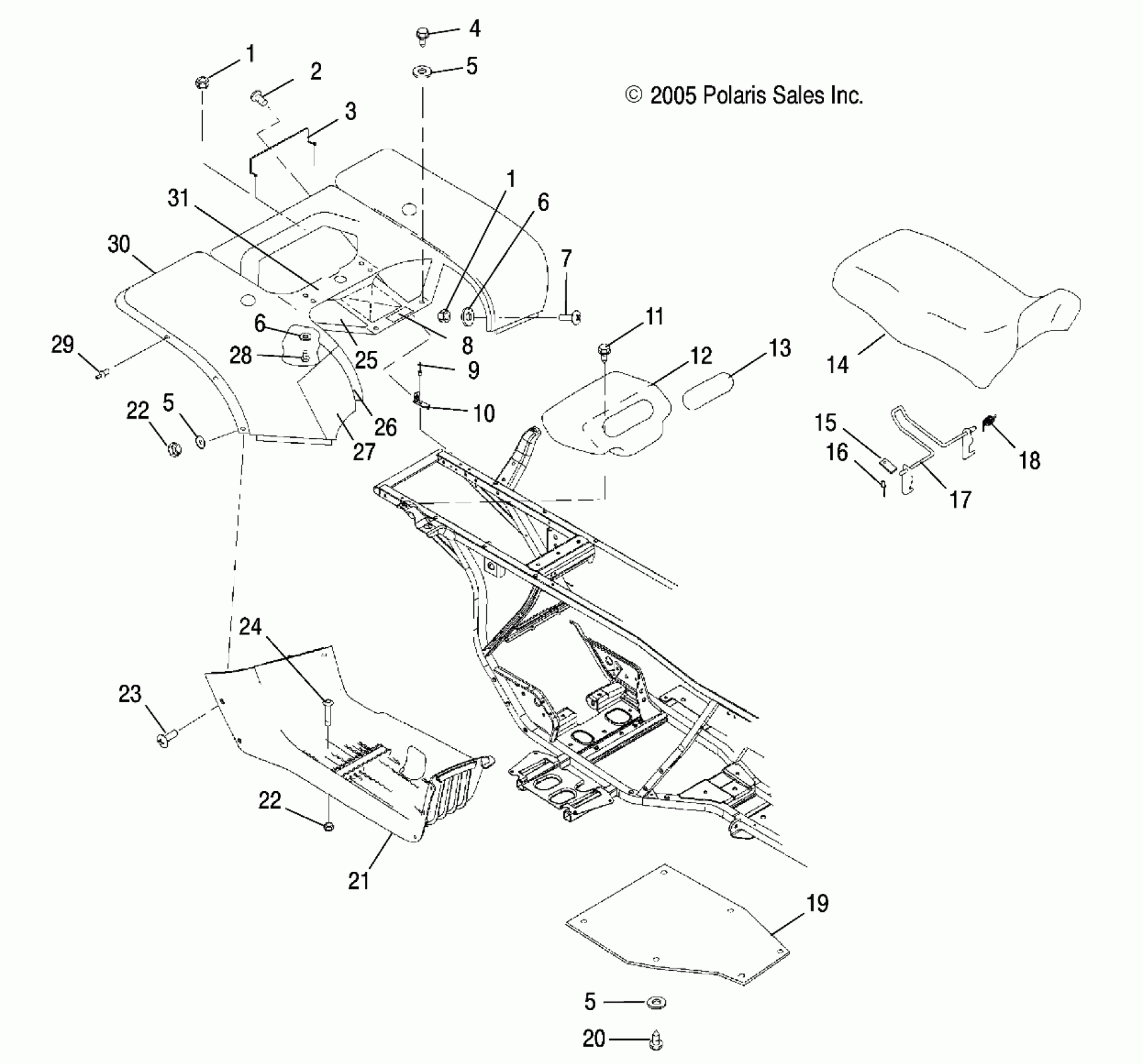

Polaris TRAIL BOSS 330 - A06CA32AA CAB, REAR and SEAT - A06CA32AA/AB (4999202939920293A04) Diagram

#

Description
Price

1

Nut, Nylok

7541925

$0.79

1

Nut, Nylok

7541925

$0.79

2

SCREW

7517685

$1.59

3

Retainer, Seat Latch

5246091

$10.63

4

SCREW

7512242

$2.38

5

Washer, Flat

7555859

$1.19

5

Washer, Flat

7555859

$1.19

5

Washer, Flat

7555859

$1.19

6

WASHER

7556034

$2.38

6

WASHER

7556034

$2.38

7

Screw

7512085

Unavailable

8

Decal, Carburetor/Filter

7170007

Unavailable

9

RIVET-3/16-.090-.290

7661637

$1.19

10

Mount, Cab, Rear

5245898

$2.78

11

Screw

7517375

$1.19

12

Box, Tool

5434040

$32.70

13

Cover, Tool Box

5431787

Unavailable

14

Covering, Seat, Black

2682958-070

$149.75

14

Asm., Seat, Black [Incl. 15-18]

2683197-070

$445.22

15

BRACKET, LEVER RETAINER

5211033

$34.99

16

RIVET

7621403

$1.19

17

LATCH, SEAT

1040387

$48.56

18

SPRING, LATCH

7041370

$9.52

19

Guard, Rock

5432763

$109.99

20

Screw

7515179

$2.38

21

Footwell, Black, LH

5432221-070

$230.70

21

Footwell, Black, RH

5434417-070

$230.70

22

Nut, Nylok

7542122

$1.19

22

Nut, Nylok

7542122

$1.19

23

Screw

7517264

$3.97

24

Screw

7517376

$0.79

25

Foil

5811087

Unavailable

26

Foil, Front

5811106

Unavailable

27

Foil

5811111

Unavailable

28

Screw

7511930

$2.38

29

Rivet

7081040

$1.19

30

Cab, Rear, Indy Red [AB]

5432117-293

Unavailable

30

Cab, Rear, White [AA]

5432117-133

Unavailable

31

Foil, Rear

5811107

Unavailable
