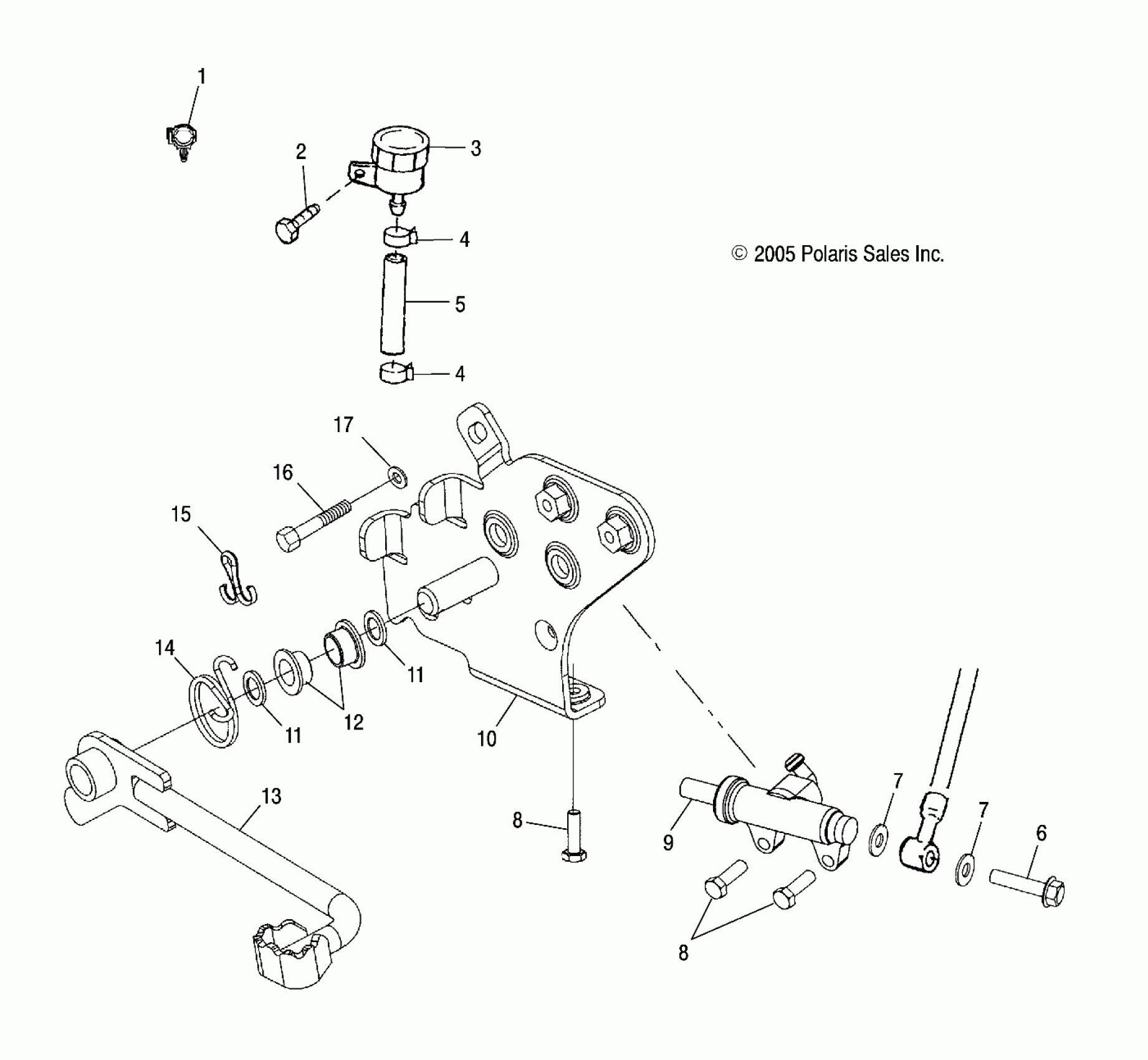

Polaris TRAIL BOSS 330 - A06CA32AA BRAKE MASTER CYLINDER, REAR - A06CA32AA/AB (4999202939920293B02) Diagram

#

Description
Price

1

Clip

7670102

$2.39

2

Bolt

7512232

$1.49

3

Asm., Reservoir

1930854

$35.99

4

HOSE CLAMP, RED

7080003

$1.49

4

HOSE CLAMP, RED

7080003

$1.49

5

Hose, Reservoir

1910812

$5.75

6

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

7

Seal

5410988

$4.84

7

Seal

5410988

$4.84

8

Screw

7515158

$4.79

8

Screw

7515158

$4.79

9

Asm., Foot Brake Master Cylinder

1910791

$171.99

10

Mount, Brake, Black

1910764-067

$20.63

11

WASHER

7555919

$4.99

11

WASHER

7555919

$4.99

12

BUSHING, PEDAL PIVOT

5433189

$3.99

13

Pedal, Brake, Black

1910767-067

$63.99

14

SPRING-TORSION,BRAKE

7041750

$8.79

15

PIN, COTTER

7661401

$1.49

16

Bolt

7512232

$1.49

17

Washer, Flat

7558301

$1.49
