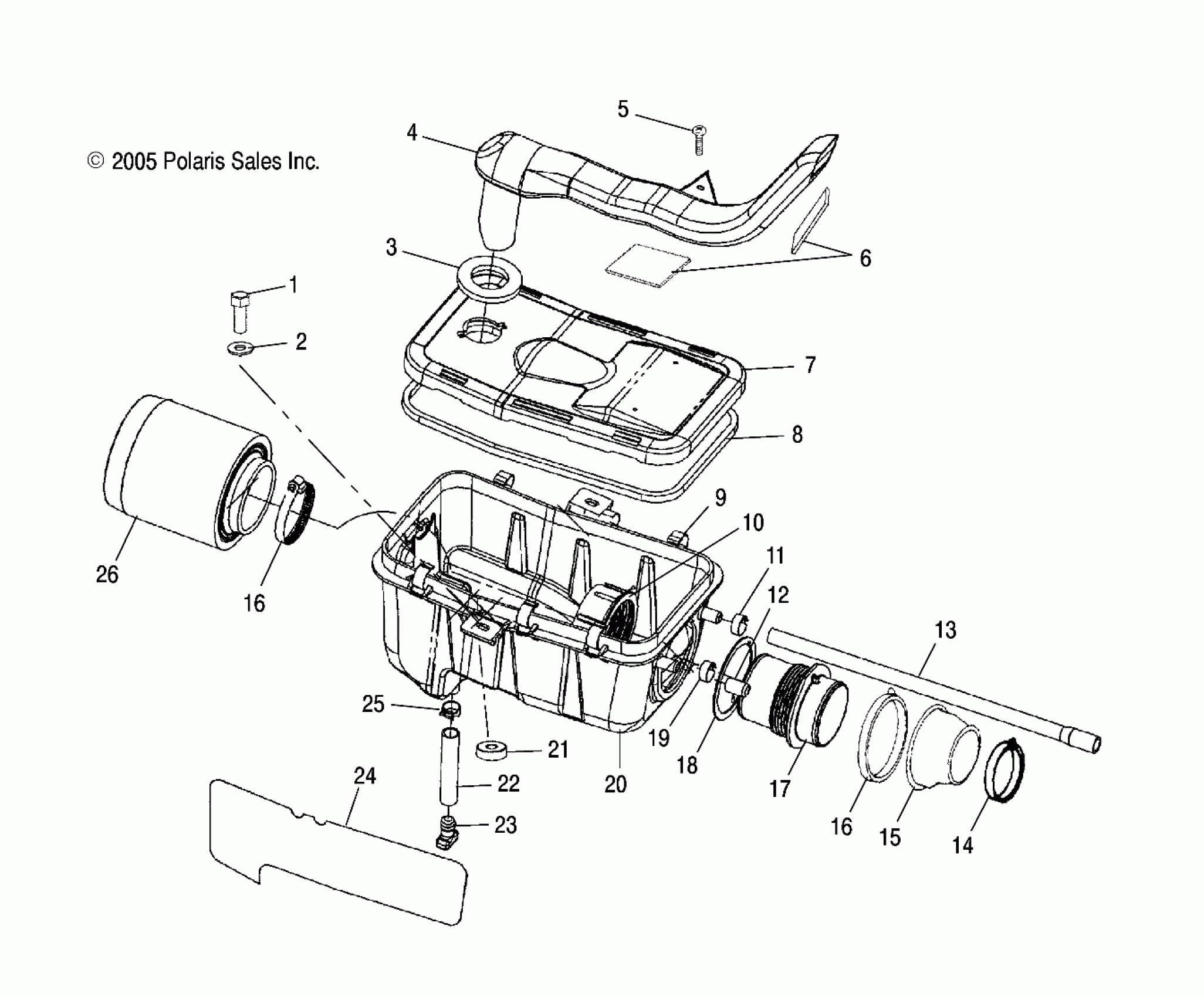

Polaris TRAIL BOSS 330 - A06CA32AA AIR BOX - A06CA32AA/AB (4999202939920293A10) Diagram

#

Description
Price

1

Screw

7518306

$3.97

2

Washer, Flat

7558301

$1.19

3

Seal

5812023

$6.59

4

Duct, Inlet

5433767

$121.02

5

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

6

Pad

5810317

Unavailable

7

Cover, Air Box

5433769

Unavailable

8

Seal, Cover

5811482

$28.32

9

CLIP-AIR BOX

5242044

$9.52

10

Collar, Carburetor Inlet

5432601

$12.94

11

Clamp, Hose

7080699

$1.59

12

Cap, End

5433396

$4.84

13

Hose, Breather

5411866

$11.51

14

Clamp, Narrow Band

7080511

$4.76

15

Boot, Carburetor

5411588

Unavailable

16

Clamp, Narrow Band

7080413

$3.17

16

Clamp, Narrow Band

7080413

$3.17

17

Duct, Carburetor Inlet

5433180

$36.41

18

Gasket, Carburetor Inlet

5830128

Unavailable

19

Clamp, Hose

7080534

$1.59

20

Box, Air Intake

5435759

Unavailable

21

Washer, Nylon

7555932

$2.38

22

Hose, Drain, Formed

5412111

$11.51

23

Plug, Trap

5432377

Unavailable

24

Foil, RH

5812111

Unavailable

25

Clamp, Hose

7080650

$3.97

26

Asm., Air Filter

1253372

$27.78
