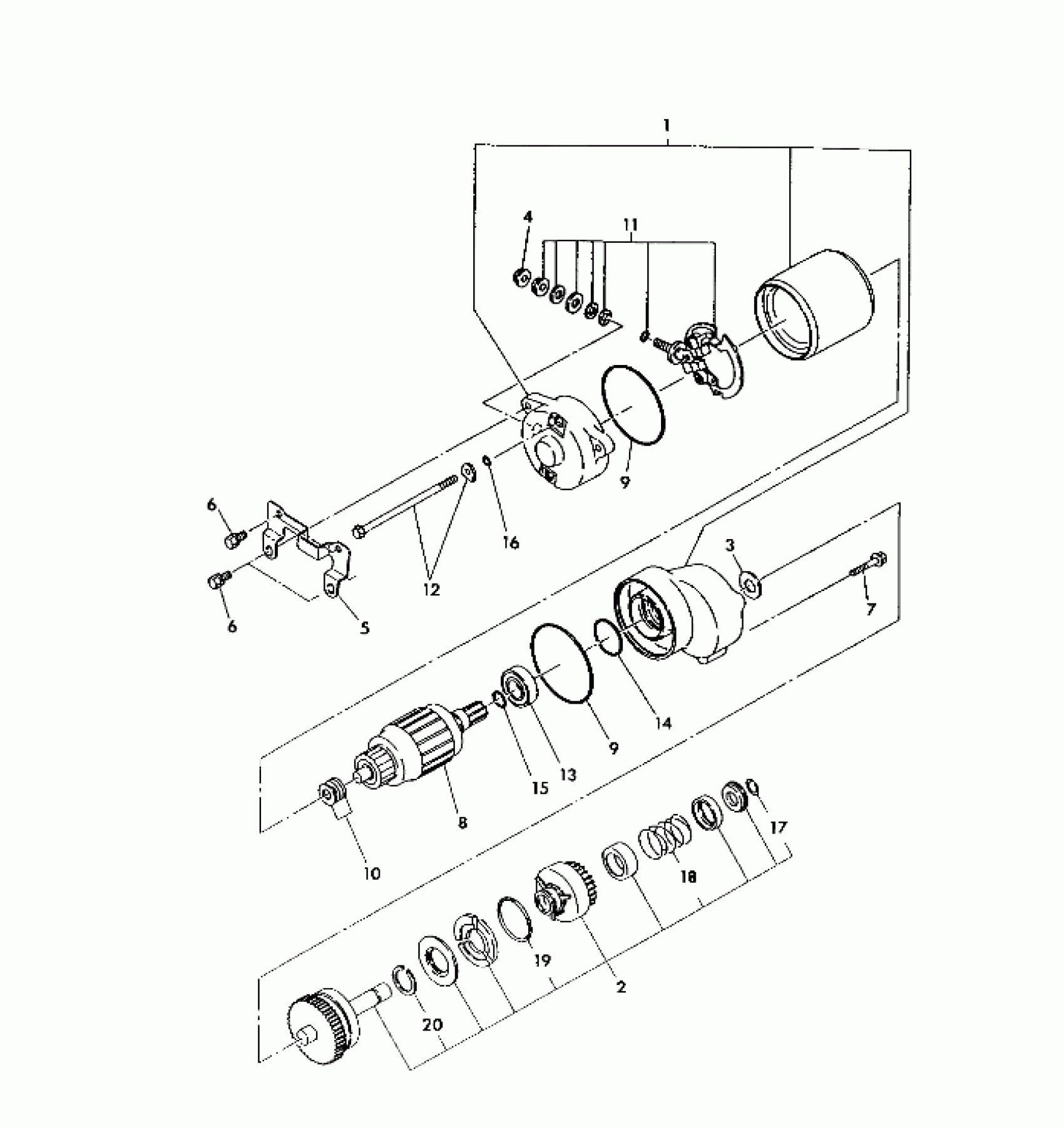

Polaris TRAIL BOSS 2X4 - W927527 STARTING MOTOR ASSEMBLY 250 2X4/W927527 (4922862286037A) Diagram

#

Description
Price

-

STARTER MOTOR ASM. Substituted by 3085392

3084402

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 4,8-16)

3084403

Unavailable

2

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 3)

3083647

$271.10

3

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

4

NUT, FLANGE(10)

3083649

$3.97

5

Bracket

3083650

Unavailable

6

BOLT,(10)

3081645

Unavailable

6

BOLT,(10)

3081645

Unavailable

7

BOLT&WASHER ASM.

3082038

$3.97

8

ARMATURE ASM. * (Incl. 13,15)

3084404

$142.99

9

RING, RUBBER

3084405

Unavailable

9

RING, RUBBER

3084405

Unavailable

10

Washer Set

3083754

$2.38

11

BRUSH,COMPL.2-POLE *

3084406

$125.46

12

Bolt, Through

3084407

Unavailable

13

BALL BEARING

3083777

$31.75

14

O RING

3083741

$9.37

15

O RING

3083934

Unavailable

16

O-RING

3084408

Unavailable

17

CLIP

3084409

$7.14

18

SPRING, RETURN

3084410

Unavailable

19

SPRING, WEIGHT

3084411

$15.56

20

CLIP

3084412

$9.52
