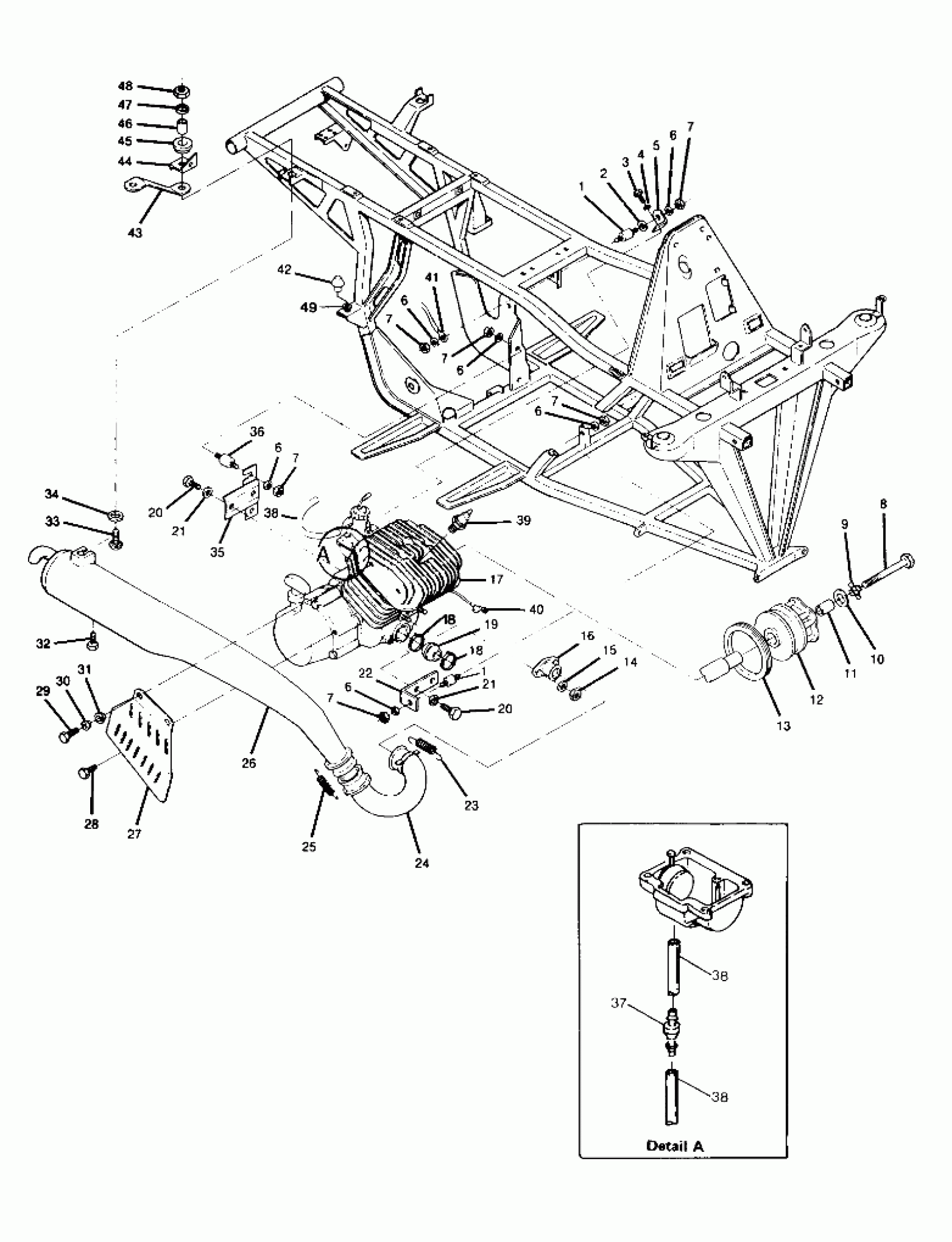

Polaris TRAIL BOSS 2X4 - W927527 ENGINE and MUFFLER MOUNTING 250 2X4 / W927527 (4922862286005A) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

Unavailable

1

MOUNT,MOTOR

3110026

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

BOLT(10)

7515321

$1.49

4

LOCK WASHER(10)

7552901

$1.49

5

MOUNT, ENG.,TOP

5220471-067

Unavailable

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

8

BOLT(10)

7512566

$30.79

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

11

BUSHING-.437 X.770 X.50

5430261

$7.19

12

CLUTCH, BASIC Substituted by 1321633

1321497

$697.13

13

SEAL,ENG./CLUTCH

5410411

Unavailable

14

NUT(10)

3080285

Unavailable

15

WASHER LOCK ,(10)

3080530

$3.19

16

MANIFOLD, BLK.

1260543-029

Unavailable

17

ENG.EC25PF-05(ATV) [No Longer Available]

1211460

Unavailable

18

CLAMP

7080136

Unavailable

18

CLAMP

7080136

Unavailable

19

BOOT,CLUTCH INTAKE

5410421

$11.19

20

SCREW(10)

7512490

$3.99

20

SCREW(10)

7512490

$3.99

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

22

PLATE,FR.MTR.MT.

5220881-067

Unavailable

23

SPRING-EXHAUST(10)

7042029

$4.84

24

HEADPIPE WELD.

1260540-029

Unavailable

25

SPRING, EXHAUST(10)

7042031

$5.65

26

MUFFLER/ARRESTER WELD.

1260535-029

Unavailable

27

SHIELD,MUFFLER,BLACK Substituted by 5220671-067

5222117

Unavailable

28

BOLT&WASHER

3083729

$3.49

29

BOLT&WASHER

3083730

$4.79

30

COLLAR

3083732

Unavailable

31

MOUNTING,RUBBER

3083731

$4.95

32

BOLT(10)

7512666

$2.39

33

BOLT(10)

7515316

$2.39

34

WASHER,RUBBER

5410436

$1.59

35

MOUNT, REAR Substituted by 5241056-067

5220757-067

Unavailable

36

MOUNT, MOTOR

3110028

Unavailable

37

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

38

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

38

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

38

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

39

SPARKPLUG (10)

3070156

$3.99

40

INSULATOR-CABLE

5410346

$6.39

41

CABLE,GROUND/ENG.

4010067

Unavailable

42

DAMPNER, VIB.

5410467

$8.79

43

SUPPORT,R.FENDER

5220902-067

$48.40

44

BRKT,LH SUPPORT RACK Substituted by 5243468-067

5220899-067

Unavailable

44

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

45

DAMPENER

5410241

Unavailable

46

BUSHING-RES. MT.

5010192

$6.39

47

WASHER(10)

7555716

$1.59

48

NUT-5/16-18 NYLOK-Y

7542324

$1.49

49

WASHER(10)

7555726

$1.59
