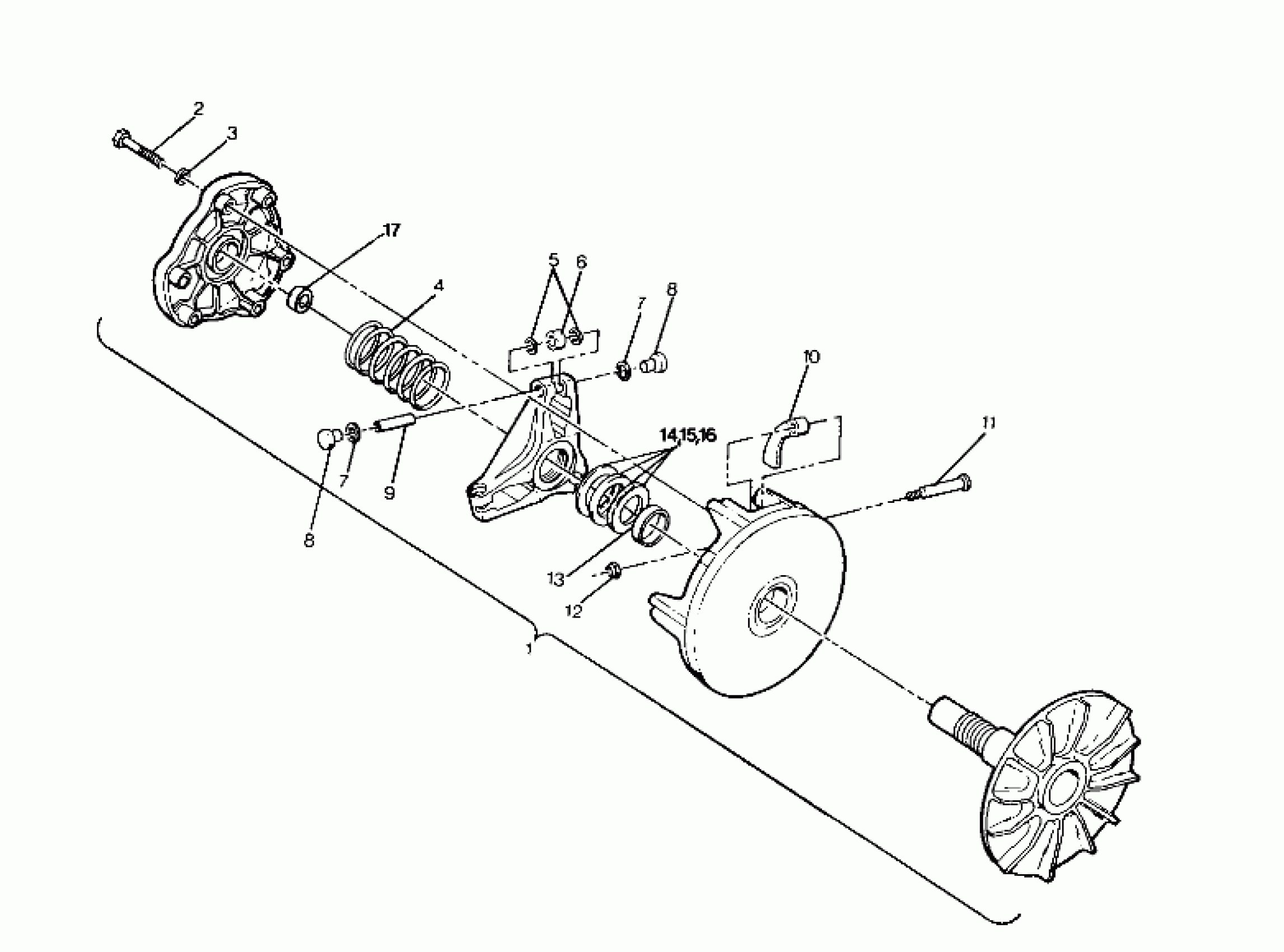

Polaris TRAIL BOSS 2X4 - W927527 DRIVE CLUTCH ASSEMBLY 250 2X4/W927527 (4922862286023A) Diagram

#

Description
Price

1

CLUTCH, BASIC Substituted by 1321633

1321497

$697.13

2

BOLT,(10)

7512265

$3.99

3

LOCK WASHER(10)

7552801

$1.59

4

SPRING,CLUTCH

7041157

$47.99

5

WASHER,MULTILUBE

5430945

$1.59

6

ASM-ROLLER AND BUSHING

1321457

$40.46

7

SEAL, O RING,(10)

5410374

$1.83

7

SEAL, O RING,(10)

5410374

$1.83

8

BUTTON, GUIDE(10)

5430768

$10.39

8

BUTTON, GUIDE(10)

5430768

$10.39

9

PIN, SPIDER Substituted by 5020795

5020436

$23.81

10

WT.,CLUTCH,16(6) (16)

5630279

$31.99

11

BOLT,SPECIAL(10)

7512266

$3.19

12

NUT FLEX LOC(10)

7541906

$3.19

13

BUSHING, DRIVEN

3576504

$23.99

14

SPACER(10)

5210752

Unavailable

15

SPACER(10)

5210753

Unavailable

16

SPACER(10)

5210754

Unavailable

17

BEARING, COVER,(10)

3576510

$9.59
