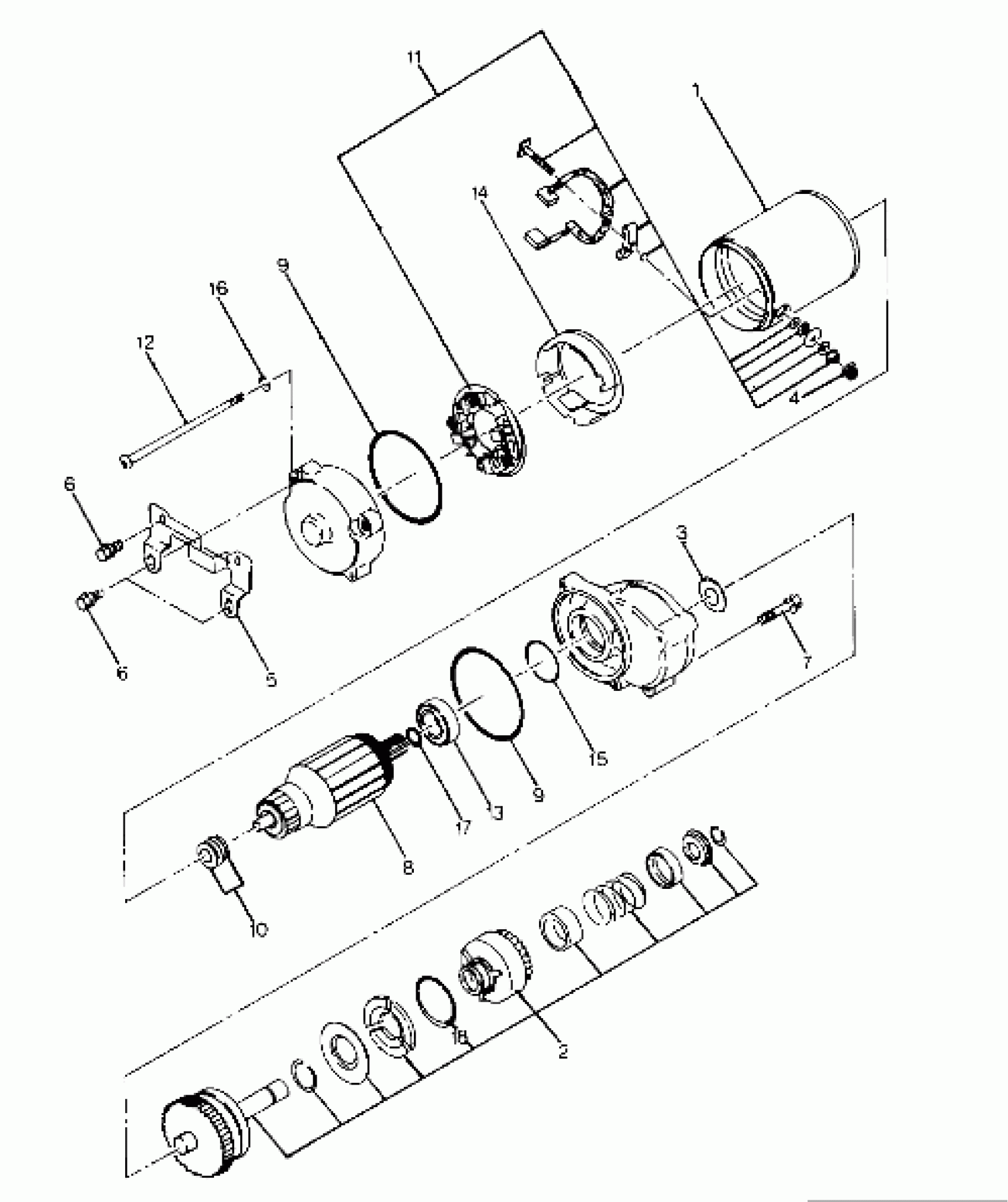

Polaris TRAIL BOSS 2X4 - W907527 Starting Motor Assembly Updated 5/90 (4917721772036A) Diagram

#

Description
Price

1

STARTER MOTOR ASM. Substituted by 3084403 (Incl. 8-17)

3083760

Unavailable

2

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 3,18)

3083647

Unavailable

3

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

4

NUT, FLANGE(10)

3083649

$3.99

5

Bracket

3083650

Unavailable

6

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

6

BOLT & WASHER(10) Substituted by 3081645

3083231

Unavailable

7

BOLT&WASHER ASM.

3082038

$3.99

8

ARMATURE ASM. (Incl. 13,17)

3083776

$191.99

9

RING, RUBBER

3083738

$1.83

9

RING, RUBBER

3083738

$1.83

10

Washer Set

3083754

$2.39

11

BRUSH ASM.

3083728

Unavailable

12

BOLT,THROUGH

3083739

Unavailable

13

BALL BEARING

3083777

$31.99

14

HOLDER,BRUSH

3083740

Unavailable

15

O RING

3083741

$9.37

16

WASHER SPRING(10)

3083133

Unavailable

17

O RING

3083934

Unavailable

18

SPRING, RETURN Substituted by 3084411

3083896

Unavailable
