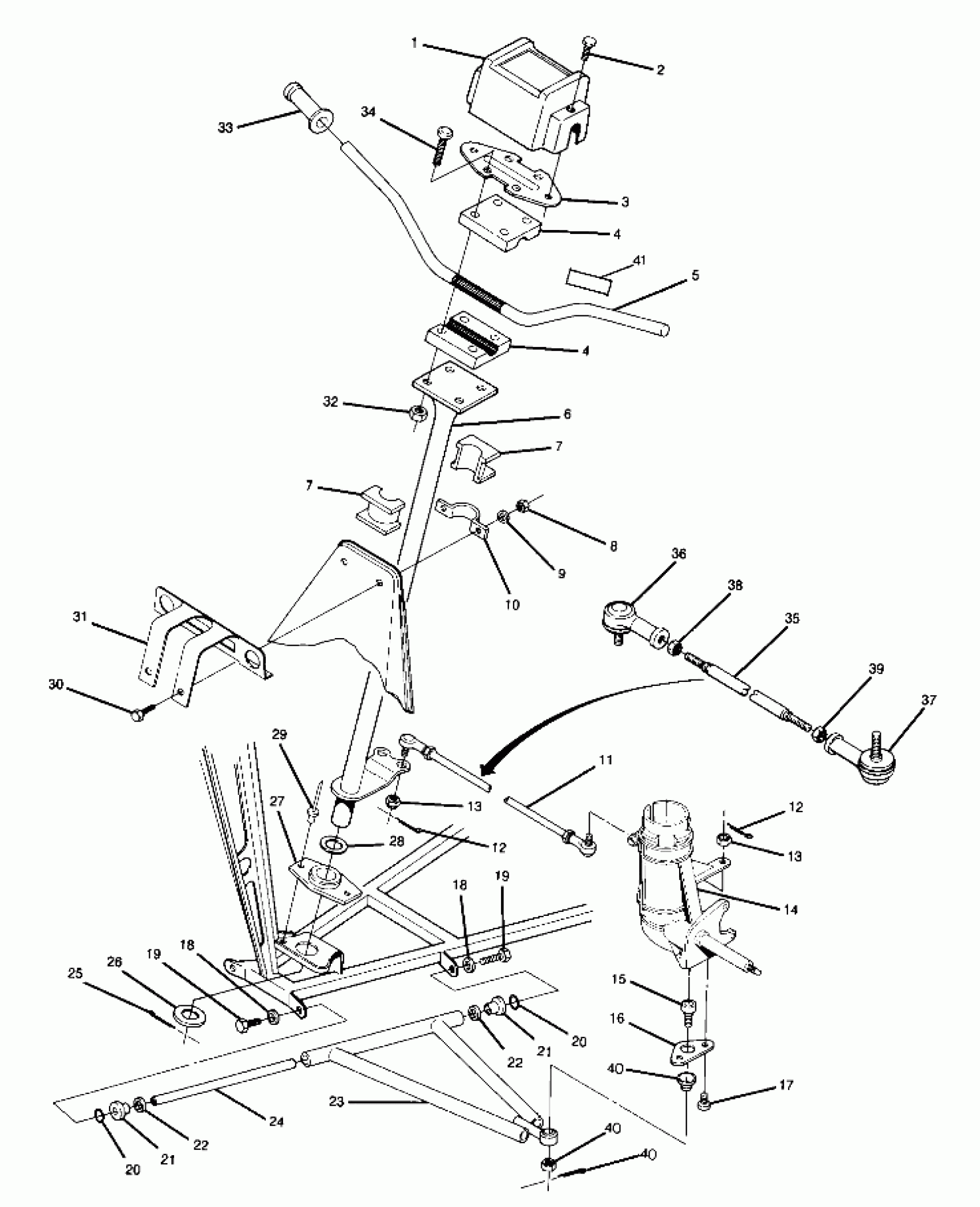

Polaris TRAIL BOSS 2X4 - W897527 Steering Assembly (4916341634011A) Diagram

#

Description
Price

1

PAD, HANDLEBAR

5810379

$40.46

2

BOLT(10) Substituted by 7515197

7512286

$1.19

3

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$4.35

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$4.35

5

TUBE,HDLBAR.(4WHL) Substituted by 5224316-067

5224316

Unavailable

6

POST, STEERING Substituted by 1843028-067

1843028

Unavailable

7

BUSHING,STRG.,UPPER Substituted by 5431572

5430966

$8.73

7

BUSHING,STRG.,UPPER Substituted by 5431572

5430966

$8.73

8

NUT-5/16-18 NYLOK-Y

7542324

$0.79

9

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

10

BUSHING,UPPER STRG. Substituted by 5220887-067

5220887

$32.37

11

TIE ROD ASM. Substituted by 1822307

1822070

Unavailable

12

PIN COTTER(10)

7661203

$1.19

12

PIN COTTER(10)

7661203

$1.19

13

NUT, CASTLE(10)

7546904

$4.76

13

NUT, CASTLE(10)

7546904

$4.76

14

SUPPORT,LH STRUT&SPINDLE Substituted by 5130803

5130655

Unavailable

14

SUPPORT,RH STRUT&SPINDLE Substituted by 5130804

5130656

Unavailable

15

BALL JOINT Substituted by 7080673

7080364

$28.32

16

BRACKET-BALL JOINT

5211121

$32.37

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

18

WASHER(10)

7552603

$0.79

18

WASHER(10)

7552603

$0.79

19

BOLT(10) Substituted by 7512492

7515458

$1.19

19

BOLT(10) Substituted by 7512492

7515458

$1.19

20

O RING

5410458

Unavailable

20

O RING

5410458

Unavailable

21

BEARING,'A' ARM Substituted by 2200474

3576509

$74.99

21

BEARING,'A' ARM Substituted by 2200474

3576509

$74.99

22

WASHER(10)

7555774

Unavailable

22

WASHER(10)

7555774

Unavailable

23

A-FRAME, LH Substituted by 1580028-067

1580028

Unavailable

23

A-FRAME, RH Substituted by 1580029-067

1580029

Unavailable

24

SHAFT,'A' ARM

5020477

Unavailable

25

PIN, COTTER(10)

7661404

$4.76

26

BUSHING(10)

7555781

Unavailable

27

BUSHING,STRG.,LOWER Substituted by 5431570

5430895

Unavailable

28

BUSHING(10)

7556401

Unavailable

29

RIVET, (MONOBOLT) Substituted by 7661637

7661620

$1.19

30

BOLT(10)

7512315

$4.76

31

BRKT,IGN.PANEL Substituted by 5220965-067

5220965

Unavailable

32

NUT-LOCK(10)

7542122

$1.19

33

GRIP, HANDLEBAR

5431030

$28.32

34

BOLT,(10)

7512265

$3.97

35

TIE ROD

5020478

$52.60

36

ROD END, RH Substituted by 7060172

7060138

$60.70

37

ROD END

7060147

$60.70

38

NUT, RH, 10 MM.(10)

7546901

$2.38

39

NUT, LH, 10 MM.(10)

7546902

Unavailable

40

KIT, BALL JOINT 33

2200290

Unavailable

40

KIT, BALL JOINT 33

2200290

Unavailable

40

KIT, BALL JOINT 33

2200290

Unavailable

41

DECAL,O'RIDE SWITCH Substituted by 7076274

7072390

Unavailable
