Rear Wheel Drive Assembly (4916341634017A)

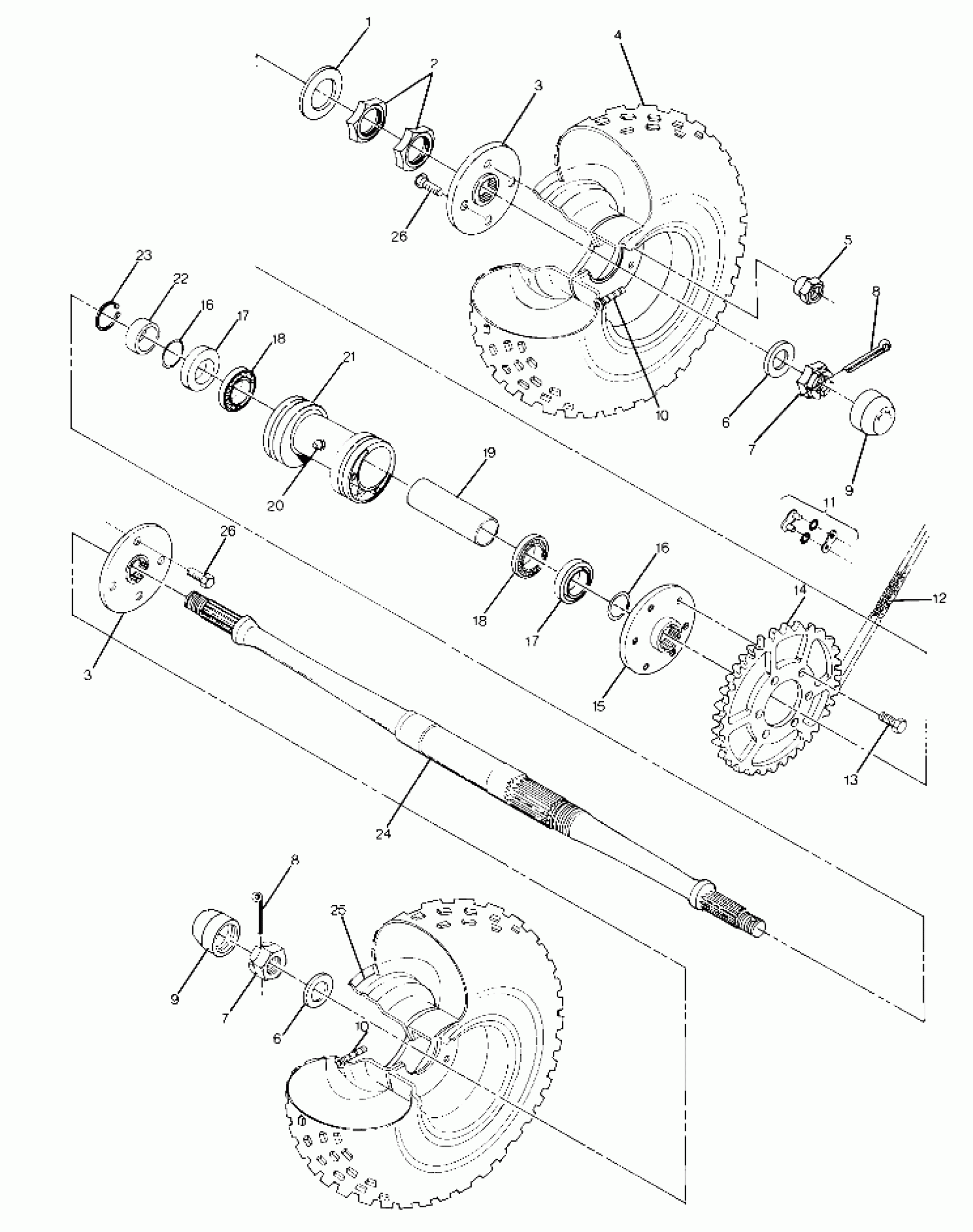

Polaris TRAIL BOSS 2X4 - W897527 Rear Wheel Drive Assembly (4916341634017A) Diagram
#
Description
Price
1
WASHER(10)
7555764
Unavailable
2
Nut, Jam
5020468
$39.59
3
HUB, WHEEL Substituted by 2200341
5130664
$93.08
3
HUB, WHEEL Substituted by 2200341
5130664
$93.08
4
TIRE,R(24X11-10)
5410466
Unavailable
5
NUT, WHEEL(10)
7542714
$1.59
6
WASHER(10)
7555745
$7.19
6
WASHER(10)
7555745
$7.19
7
NUT, CASTLE(10)
7543005
Unavailable
7
NUT, CASTLE(10)
7543005
Unavailable
8
PIN, COTTER(10)
7661404
$4.79
8
PIN, COTTER(10)
7661404
$4.79
9
COVER,DUST,HUB Substituted by 5411164
5410404
Unavailable
9
COVER,DUST,HUB Substituted by 5411164
5410404
Unavailable
10
VALVE-RIM
1525017
$5.59
10
VALVE-RIM
1525017
$5.59
11
CONNECTOR LINK
3225024
$19.99
12
CHAIN,DRIVE,86P Substituted by 3224056-086 (Includes Connector)
3224046
Unavailable
13
BOLT(10)
7515488
Unavailable
14
SPROCKET,REAR,38T Substituted by 3222065
3222046
$104.53
15
HUB, SPROCKET Substituted by 1520170
5630320
Unavailable
16
O RING, 1 5/16(10)
5410415
Unavailable
16
O RING, 1 5/16(10)
5410415
Unavailable
17
SEAL, REAR AXLE
3610013
$19.99
17
SEAL, REAR AXLE
3610013
$19.99
18
Bearing, Ball
3515501
$27.99
18
Bearing, Ball
3515501
$27.99
19
TUBE,BEARING SPACER
5010204
Unavailable
20
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
21
HOUSING, AXLE
5130663
Unavailable
22
SPACER,BEARING
5010206
$35.99
23
RING, SNAP(10)
7710405
$4.79
24
AXLE, REAR
5020504
$239.99
25
RIM,REAR,PRIMED Substituted by 1520114 (Primed)
1520128
Unavailable
26
BOLT, WHEEL(10)
7512673
$3.19
26
BOLT, WHEEL(10)
7512673
$3.19
