Fuel Tank Assembly (4916341634009A)

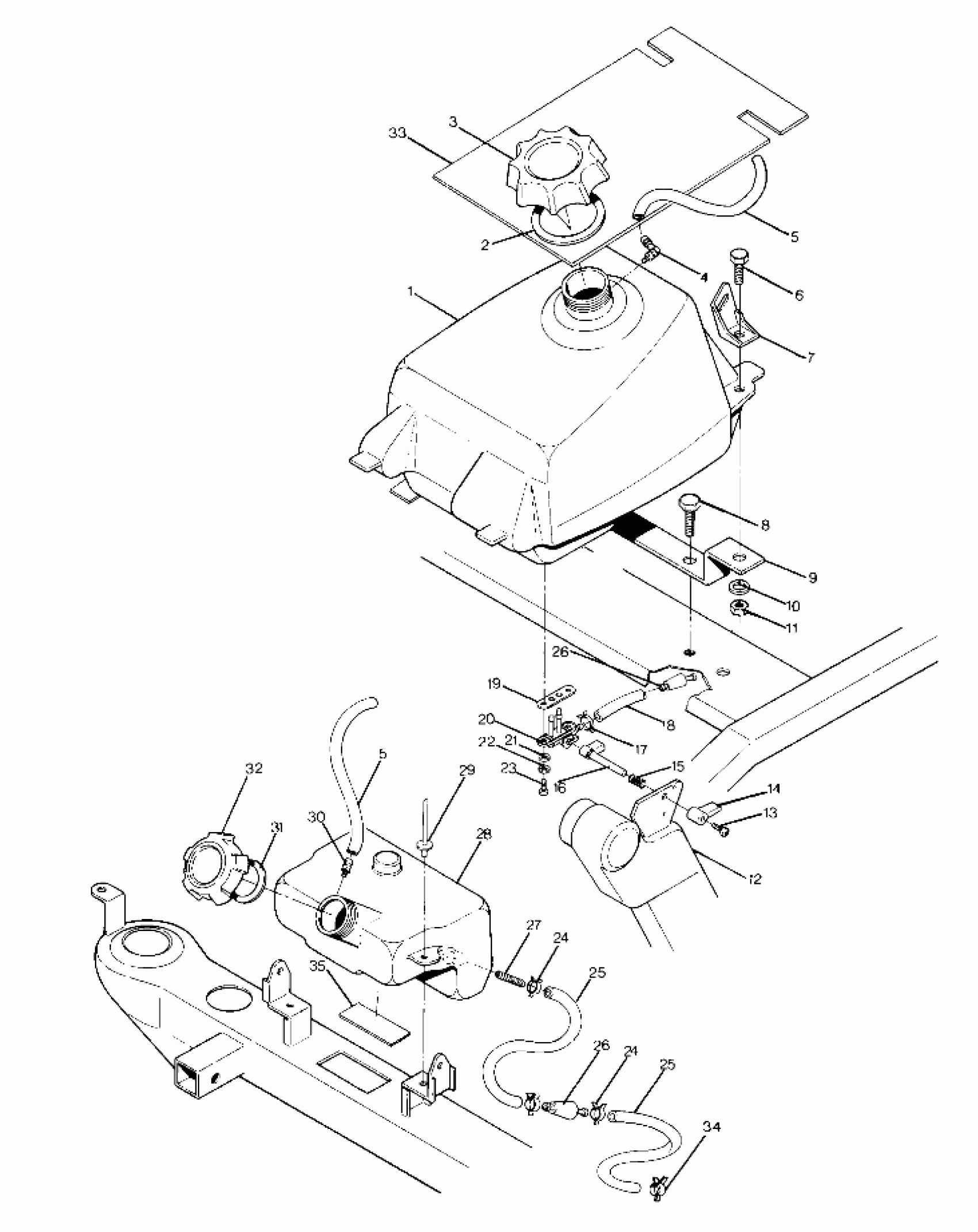

Polaris TRAIL BOSS 2X4 - W897527 Fuel Tank Assembly (4916341634009A) Diagram
#
Description
Price
1
TANK,FUEL Substituted by 2511323
5430968
Unavailable
2
GASKET-GAS CAP
5810144
$5.59
3
CAP, GAS, (BLACK)
5430725
$24.27
4
Vent, Tank
5431053
$19.99
5
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
5
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
6
SCREW(10)
7512310
$2.39
7
BRKT,LH FUEL MT,REAR Substituted by 5222154-067
5222154
Unavailable
7
BRKT,RH FUEL MT,REAR Substituted by 5222155-067
5222155
Unavailable
8
SCREW(10)
7512208
$3.99
9
BRKT,R.TANK MT. Substituted by 5220916-067
5220916
Unavailable
10
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
11
NUT-5/16-18 NYLOK-Y (Nylok)
7542324
$1.49
12
DUCT,INLET DOWN TUBE
5431006
$82.39
13
SCREW,SELF-TAP(10)
7522004
Unavailable
14
Lever, Fuel
5431021
$4.79
15
SPRING,LEVER,COMPRESS.
7041209
$7.19
16
LEVER,EXT. FUEL
5431020
Unavailable
17
CLAMP-HOSE,(10)
7080236
$1.59
18
LINE,FUEL,(6 FT.)
5521204
Unavailable
19
GASKET, FUEL VALVE
5810308
Unavailable
20
VALVE, FUEL Substituted by 7051002
7052046
Unavailable
21
WASHER(10)
7558301
$1.49
22
LOCK WASHER(10)
7552801
$1.59
23
BOLT, BLACK(10)
7512282
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
25
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
25
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
26
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
26
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
27
FITTING - OUTLET(10)
7052023
$24.99
28
TANK,OIL
5430969
Unavailable
29
RIVET(50)
7621457
$1.49
30
VENT-TANK
5430579
Unavailable
31
GASKET-OIL CAP
5810141
$2.39
32
CAP,OIL TANK
5430779
$14.56
33
PAD, SILENCER
5810423
Unavailable
34
CLAMP, HOSE Substituted by 7080684
7080374
Unavailable
35
PAD,FUELTANK BRKT. Substituted by 8360026
5810317
Unavailable
