Engine and Muffler Mounting (4916341634005A)

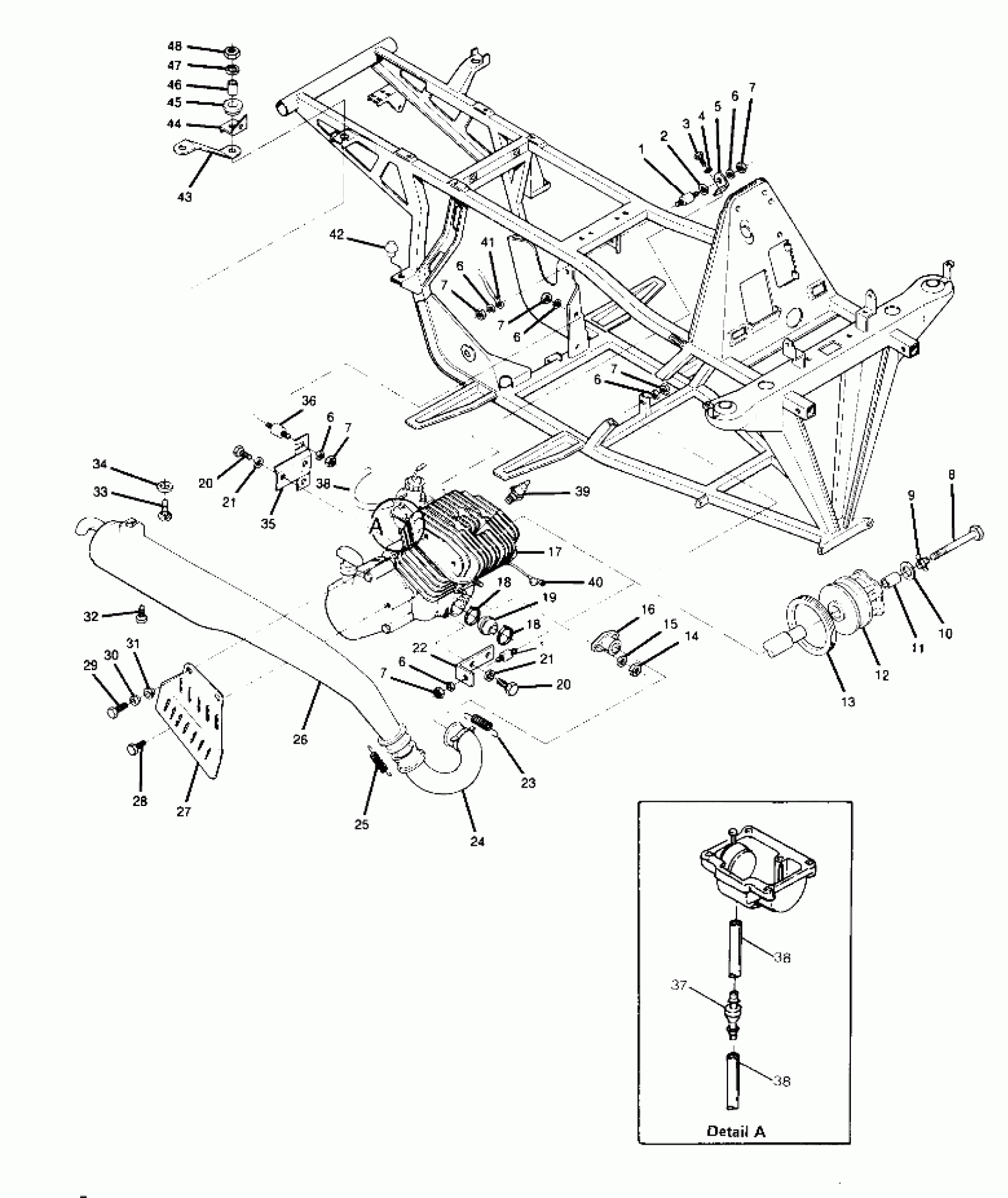

Polaris TRAIL BOSS 2X4 - W897527 Engine and Muffler Mounting (4916341634005A) Diagram
#
1
MOUNT,MOTOR
3110026
Unavailable
1
MOUNT,MOTOR
3110026
Unavailable
2
INSULATOR,MOTOR MT.
5430802
$27.99
3
BOLT(10)
7515321
$1.49
4
LOCK WASHER(10)
7552901
$1.49
5
MOUNT,ENG.,TOP Substituted by 5220471-067
5220471
Unavailable
6
WASHER(10)
7555801
$3.99
6
WASHER(10)
7555801
$3.99
6
WASHER(10)
7555801
$3.99
6
WASHER(10)
7555801
$3.99
6
WASHER(10)
7555801
$3.99
6
WASHER(10)
7555801
$3.99
7
NUT LOCK(10)
7542403
$3.99
7
NUT LOCK(10)
7542403
$3.99
7
NUT LOCK(10)
7542403
$3.99
7
NUT LOCK(10)
7542403
$3.99
7
NUT LOCK(10)
7542403
$3.99
7
NUT LOCK(10)
7542403
$3.99
8
BOLT(10)
7512566
$30.79
9
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
10
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
11
BUSHING-.437 X.770 X.50
5430261
$7.19
12
CLUTCH, BASIC Substituted by 1321633
1321497
$697.13
13
SEAL,ENG./CLUTCH
5410411
Unavailable
14
NUT(10)
3080285
Unavailable
15
WASHER LOCK ,(10)
3080530
$3.19
16
MANIFOLD Substituted by 1260543-029
1260543
Unavailable
17
ENG.EC25PF-05(ATV) [No Longer Available]
1211460
Unavailable
18
CABLE, TIE
7080346
Unavailable
18
CABLE, TIE
7080346
Unavailable
19
BOOT,CLUTCH INTAKE
5410421
$11.19
20
SCREW(10)
7512490
$3.99
20
SCREW(10)
7512490
$3.99
21
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
21
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
22
PLATE,FR.MTR.MT. Substituted by 5220881-067
5220881
Unavailable
23
SPRING-EXHAUST(10)
7042029
$4.84
24
HEADPIPE WELD. Substituted by 1260540-029
1260540
Unavailable
25
SPRING, EXHAUST(10)
7042031
$5.65
26
MUFFLER/ARRESTER WELD. Substituted by 1260535-029
1260535
Unavailable
27
SHIELD,MUFFLER,BLACK Substituted by 5220671-067
5222117
Unavailable
28
BOLT&WASHER
3083729
$3.49
29
BOLT&WASHER
3083730
$4.79
30
COLLAR
3083732
Unavailable
31
MOUNTING,RUBBER
3083731
$4.95
32
BOLT(10)
7512666
$2.39
33
BOLT(10)
7515316
$2.39
34
WASHER,RUBBER
5410436
$1.59
35
MOUNT,REAR Substituted by 5241056-067
5220757
Unavailable
36
MOUNT, MOTOR
3110028
Unavailable
37
CHECKVALVE,VENT Substituted by 7051011
7052047
Unavailable
38
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
38
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
38
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
39
SPARKPLUG, RN4YC(3)
3070167
Unavailable
40
INSULATOR-CABLE
5410346
$6.39
41
CABLE,GROUND/ENG.
4010067
Unavailable
42
DAMPNER, VIB.
5410467
$8.79
43
SUPPORT,R.FENDER Substituted by 5220902-067
5220902
$48.40
44
BRKT,LH SUPPORT RACK Substituted by 5220899-067
5220899
Unavailable
44
BRKT,RH SUPPORT RACK Substituted by 5220901-067
5220901
Unavailable
45
DAMPENER
5410241
Unavailable
46
BUSHING-RES. MT.
5010192
$6.39
47
WASHER(10)
7555716
$1.59
48
NUT-5/16-18 NYLOK-Y
7542324
$1.49
