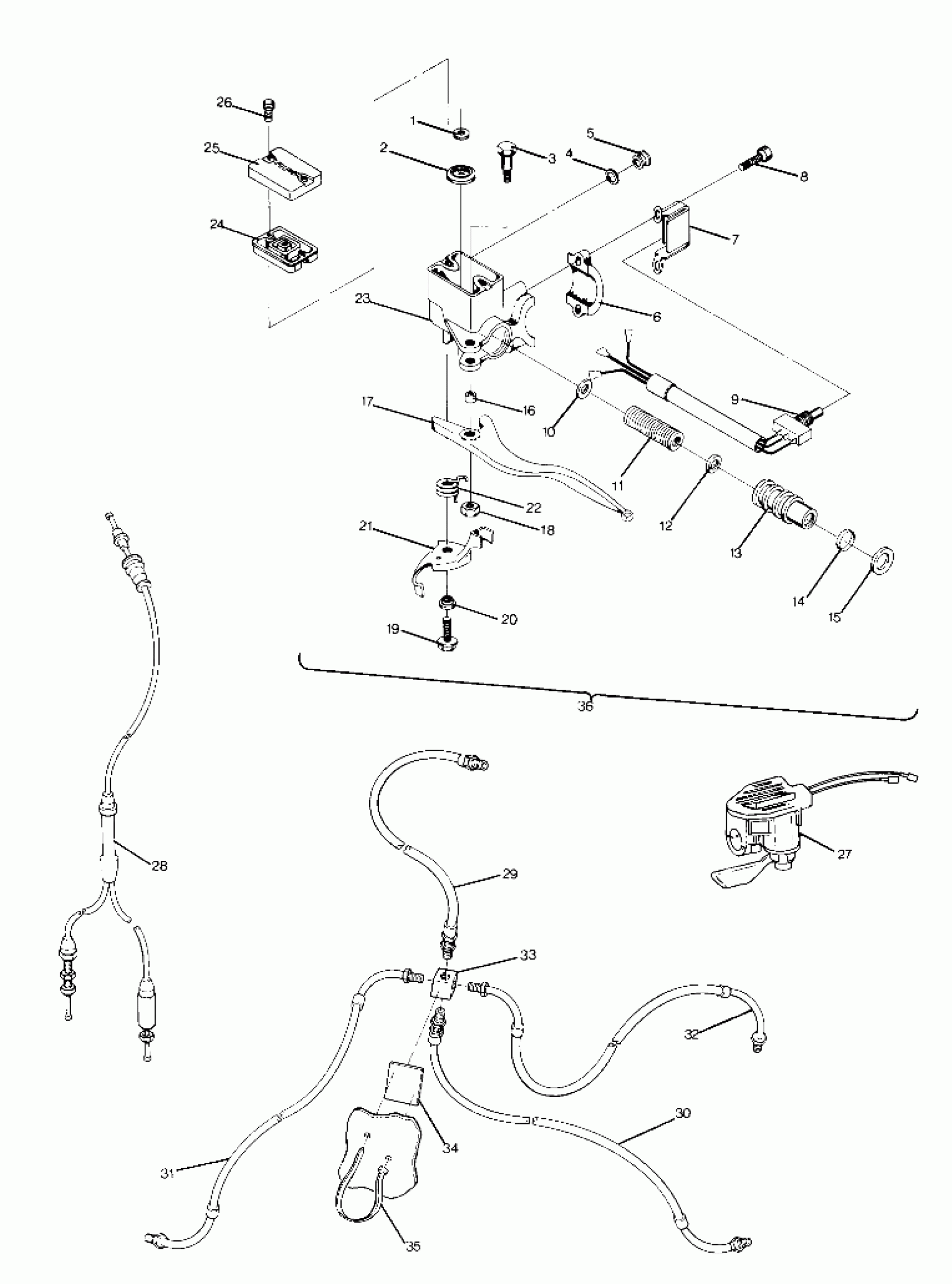

Polaris TRAIL BOSS 2X4 - W897527 Control Assembly (4916341634013A) Diagram
#
Description
Price
1
WASHER, BAFFLE(10)
1930662
Unavailable
2
BAFFLE Substituted by 1930673
1930661
Unavailable
3
BOLT,BRAKE LEVER(10)
7512287
Unavailable
4
SEAL, SIGHT GLASS
1930660
Unavailable
5
GLASS, SIGHT Substituted by 2200345
1930659
Unavailable
6
CLAMP, MASTER CYL.
5630342
Unavailable
7
BRKT,O'RIDE SW. Substituted by 5222475
5222318
Unavailable
8
BOLT,SOCKET HEAD(10)
7512290
$4.79
9
SW,O'RIDE,REV.LIMIT.
4110083
$35.99
10
WASHER(10)
7555708
$3.99
11
SPRING,COMPRESSION,(10)
7041203
$33.87
12
U PACKING SEAL
5410164
Unavailable
13
PISTON, MASTER CYL.
5020520
Unavailable
14
O RING
5410163
$1.60
15
SEAL, OIL
3610022
Unavailable
16
BUSHING,BRAKE LEVER
5332931
Unavailable
17
LEVER,BRAKE,(ATV) Substituted by 2200347
5630343
Unavailable
18
NUT(10)
7542124
Unavailable
19
SCREW, SEMS(10)
7512020
$2.39
20
BUSHING,PK.BRAKE LEVER
5020545
Unavailable
21
LEVER,PARKING BRAKE
5222310
Unavailable
22
SPRING,PK.BRAKE
7041229
$32.37
23
HSG.W/SIGHT GLASS Substituted by 5130772
2200313
Unavailable
24
GASKET,MASTER CYL.
5410527
$8.99
25
COVER,MASTER CYL.
5630338
Unavailable
26
SCREW(10)
7512016
Unavailable
27
THROTTLE CONTROL ASM. Substituted by 2010091
2010073
Unavailable
28
CABLE,THROTTLE CONTROL Substituted by 7080531
7080375
$204.99
29
LINE,BRAKE,UP.,W/FTGS. Substituted by 1930748 (M/C)
1930633
$84.93
30
LINE,BRAKE,LH.FRT,W/FTGS. Substituted by 1930752
1930631
$84.93
31
LINE,BRAKE,RH FRT. Substituted by 1930753
1930634
$84.93
32
LINE,BRAKE,R.,W/FTGS.
1930632
Unavailable
33
FITTING,INV.FLARE CROSS Substituted by 7052044
7052049
Unavailable
34
PAD,GAS TANK [No Longer Available]
5850040
Unavailable
35
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
36
MASTER CYL. ASM. Substituted by 2050046 (Incl. 1-5, 10-23)
1930647
$235.51
