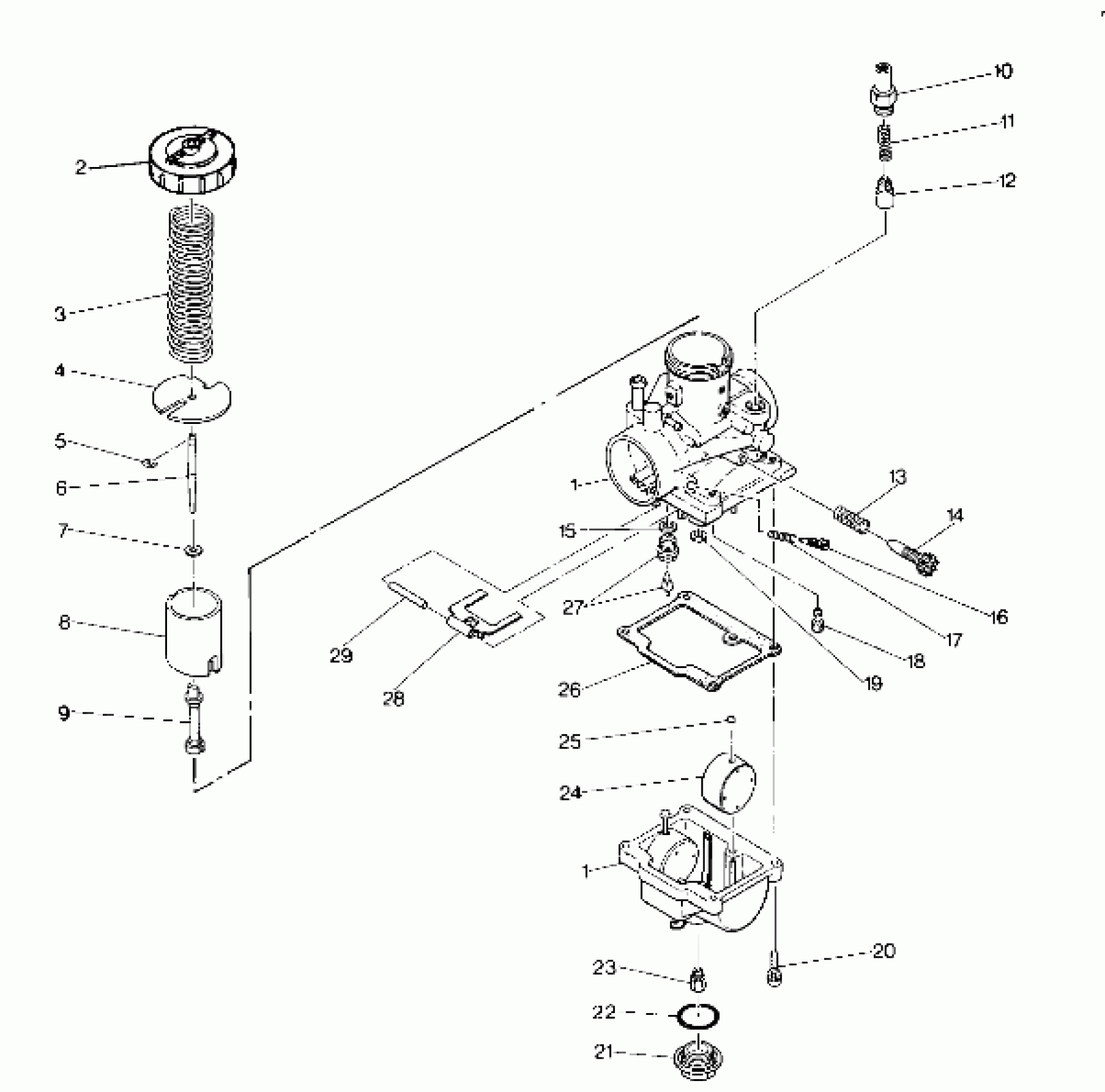

Polaris TRAIL BOSS 2X4 - W897527 Carburetor Assembly (4916341634035A) Diagram

#

Description
Price

1

CARBURETOR Substituted by 3130424

3130383

Unavailable

1

CARBURETOR Substituted by 3130424

3130383

Unavailable

2

TOP,MIX CHAMBER

3130060

Unavailable

3

SPRING,THROTTLE

3130354

$28.32

4

PLATE,THROTTLE

3130002

$20.22

5

E RING(10) Substituted by 3130508

3130003

Unavailable

6

JET NEEDLE

3130155

$24.27

7

Washer

3130355

$7.19

8

VALVE,THROTTLE,(2.0)

3130420

Unavailable

9

JET,NEEDLE(0-4),169 (169)

3130409

$39.99

10

Cap, Plunger

3130359

$14.56

11

SPRING,PLUNGER

3130006

$8.89

12

PLUNGER ASM, STARTER

3130328

$32.37

13

SPRING,THROTTLE ADJ.

3130010

$8.89

14

Screw, Throttle Stop

3130324

$19.84

15

PACKING(10) Substituted by 3130017

3080524

Unavailable

16

SCREW,AIR

3130011

$19.99

17

SPRING,AIR ADJUST

3130012

$8.89

18

JET,PILOT,#40(10)

3130067

$10.99

19

WASHER (10)

3130014

$1.59

20

SCREW & WASHER(10)

3130025

$3.19

21

BOLT,BANJO Substituted by 3130321

3082471

Unavailable

22

O RING

3130239

Unavailable

23

JET,MAIN,HX.HD.#145

3130112

Unavailable

24

FLOAT ASM Substituted by 3130021

3080534

Unavailable

25

CAP,(10)

3130237

$4.03

26

PACKING,FLOAT CHAMBER

3130020

$16.17

27

VALVE, NEEDLE

3130360

$43.99

28

ARM,FLOAT

3130018

$24.27

29

PIN, FLOAT

3130361

$8.89
